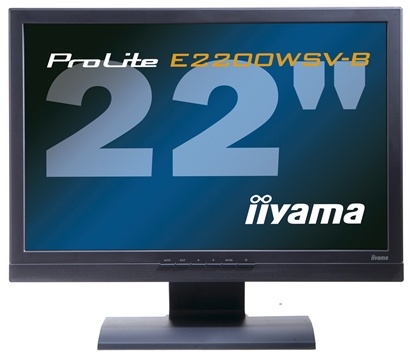

ProLite E2200WSV-B1
Model ProLite E2200WSV-B1Part no. E2200WSV-B1
31 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourBlack
- Market positioningBusiness
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- Black
- Market positioning
- Business
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Brand
- iiyama
- Category
- Monitor
- Model
- ProLite E2200WSV-B1
- Part number
- E2200WSV-B1
- Also known as
- iiyama ProLite E2200WSV-B1 computer monitor 55.9 cm (22") 1680 x 1050 pixels Black
Specifications
31 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.282 |
| Horizontal scan range | 31 - 83 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 47.5 cm |
| Viewable size, vertical | 29.8 cm |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt angle range | -5 - 20° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 60 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 517 mm |
| Depth (with stand) | 173 mm |
| Height (with stand) | 444 mm |
| Weight (with stand) | 5.8 kg |
| Width (without stand) | 517 mm |
| Depth (without stand) | 31.3 mm |
| Height (without stand) | 361 mm |
Other features
| Specification | Value |
|---|---|
| Certification | TCO '03, MPR 3 (prEN50279), ISO 13406-2, TÜV GS, FCC-B, UL / C-UL, CE, VCCI-B, GOST-R |
| Supplied AC adapter type | LCD |
