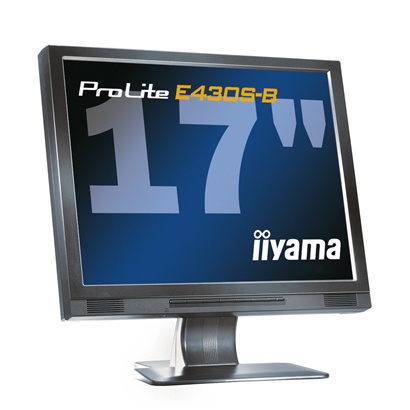

iiyama LCD 17 inch: ProLite E430S-B

LCD 17 inch: ProLite E430S-B

Model LCD 17 inch: ProLite E430S-BPart no. E430S-B

34 specifications Checked today

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ColourBlack
Market positioningBusiness
Panel mounting interface100 x 100 mm
Power consumption (typical)39 W

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Colour: Black
Market positioning: Business
Panel mounting interface: 100 x 100 mm
Power consumption (typical): 39 W

Brand: iiyama
Category: Monitor
Model: LCD 17 inch: ProLite E430S-B
Part number: E430S-B
Also known as: iiyama LCD 17 inch: ProLite E430S-B computer monitor 43.2 cm (17") 1280 x 1024 pixels Black

Specifications

34 specifications in 7 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Contrast ratio (typical)	700:1
Viewing angle, horizontal	150°
Viewing angle, vertical	135°
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Vertical scan range	55 - 75 Hz
Viewable size, horizontal	33.8 cm
Viewable size, vertical	27 cm

Design

Specification	Value
Market positioning	Business
Product colour	Black

Ports & interfaces

Specification	Value
I/O ports	Input connector: D-Sub mini 15 pin Output connector: headphone socket

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Tilt angle range	30

Power

Specification	Value
Power consumption (typical)	39 W
Power consumption (standby)	2 W

Weight & dimensions

Specification	Value
Width (without stand)	368.5 mm
Depth (without stand)	188.5 mm
Height (without stand)	379 mm
Weight (without stand)	4.1 kg

Other features

Specification	Value
Compatibility	PC/Mac
Audio system	Speaker 2 x 1,5 W (Stereo)
Bandwidth	0.135 GHz
Power requirements	AC 100 - 240 V, 50 / 60 Hz
Safety	CE, TÜV GS, FCC-B, UL/C-UL, VCCI-B
Security features	Kensington-lock
Power management	VESA DPMS, ENERGY STAR
Certification	Ergonomics TCO'99, ISO 13406-2, MPR III
Bundled hardware	Power cable, Audio cable, user manual, D-Sub cable
Supplied AC adapter type	LCD
