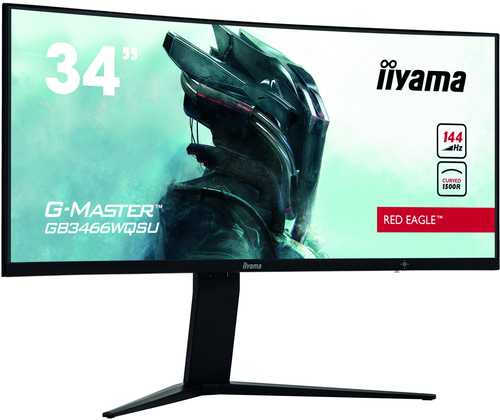

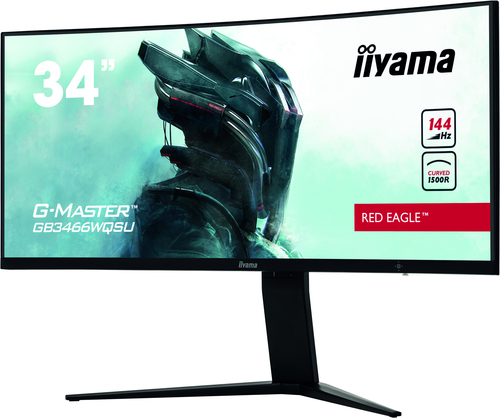

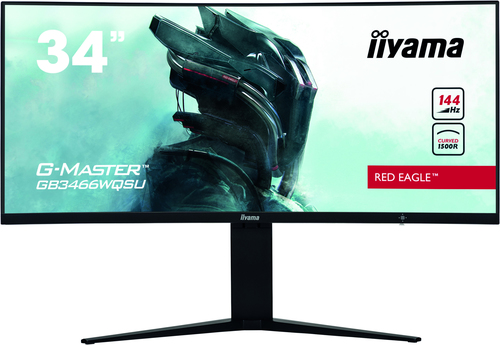

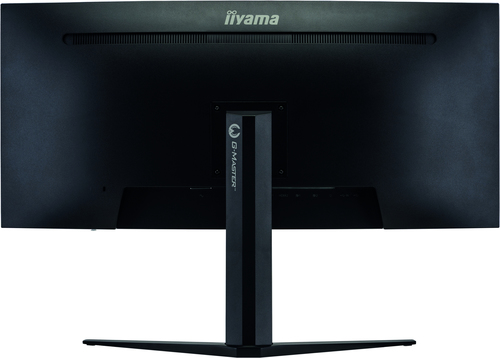

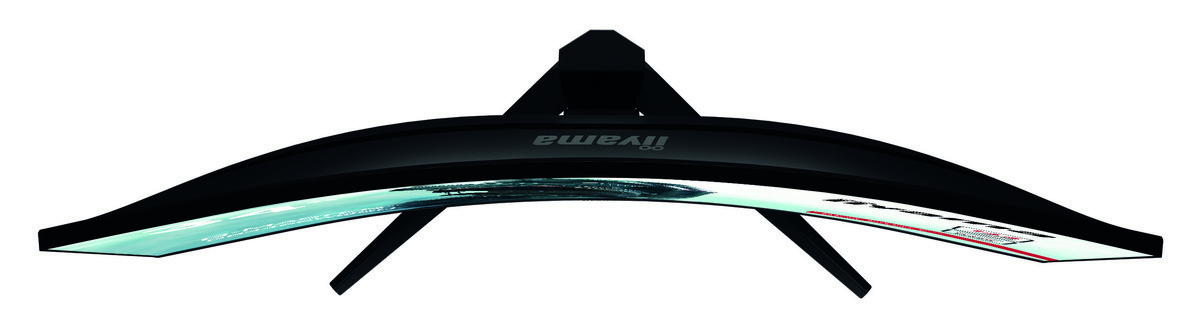

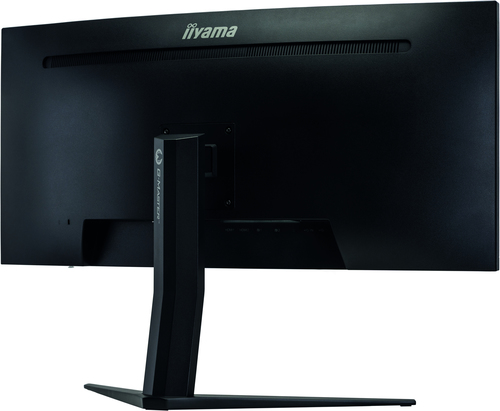

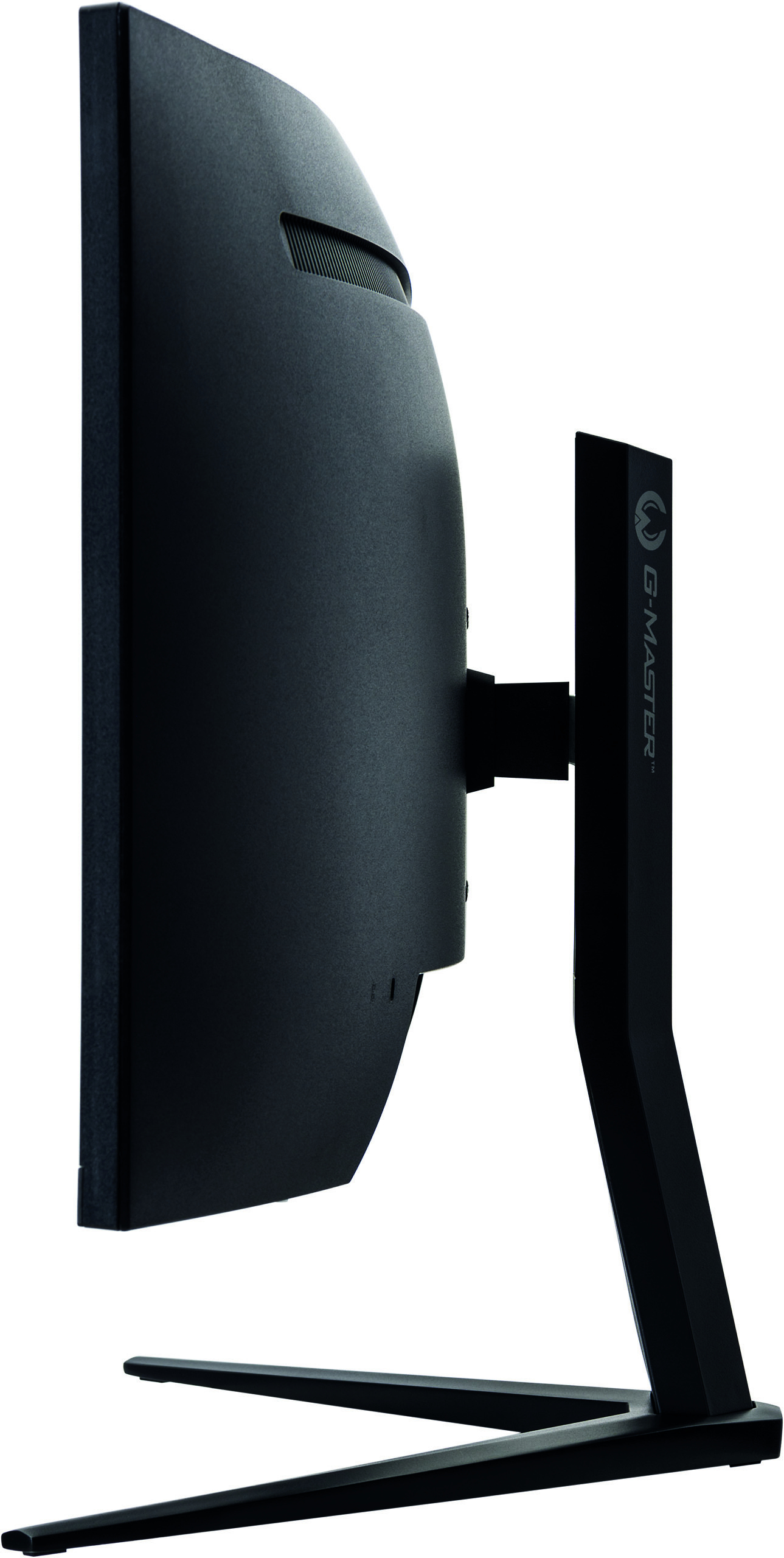

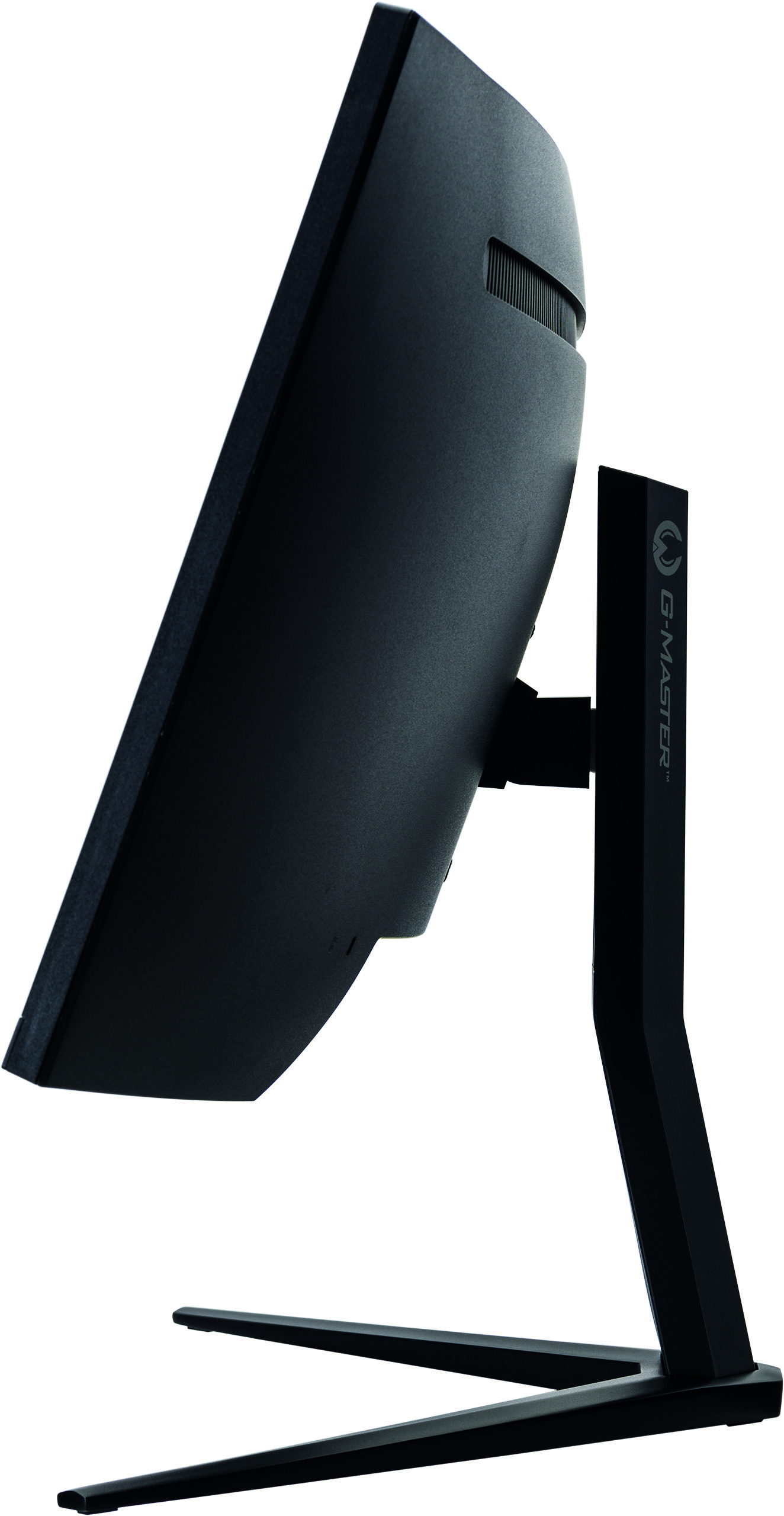

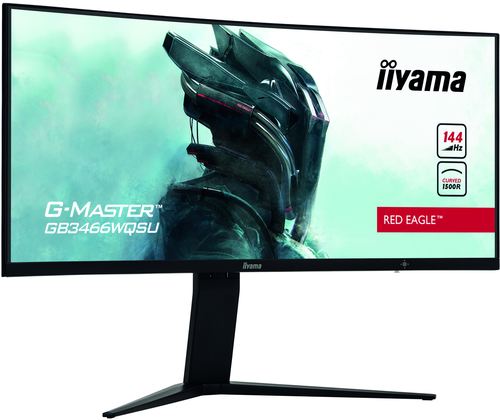

G-MASTER GB3466WQSU-B1 computer monitor

86.4 cm (34") 3440 x 1440 pixels UltraWide Quad HD LED Black

Model GB3466WQSU-B1EAN 4948570117406

94 specifications Checked today

Display86.4 cm (34")
Resolution3440 x 1440 pixels
Energy classF
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 86.4 cm (34")
Resolution: 3440 x 1440 pixels
Energy class: F
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: iiyama
Category: Monitor
Model: GB3466WQSU-B1
Part number: GB3466WQSU-B1
EAN / UPC: 4948570117406
Also known as: iiyama G-MASTER GB3466WQSU-B1 computer monitor 86.4 cm (34") 3440 x 1440 pixels UltraWide Quad HD LED Black

Specifications

94 specifications in 13 groups

Display

Specification	Value
Display diagonal	86.4 cm (34")
Display resolution	3440 x 1440 pixels
Native aspect ratio	21:9
Display technology	LED
Touchscreen	No
HD type	UltraWide Quad HD
Panel type	VA
Display brightness (typical)	400 cd/m²
Response time	1 ms
Display surface	Matt
Screen shape	Curved
Supported graphics resolutions	800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 2160, 2560 x 1440, 3440 x 1440
Contrast ratio (typical)	3000:1
Contrast ratio (dynamic)	80000000:1
Maximum refresh rate	144 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.23175 x 0.23175 mm
Horizontal scan range	30 - 160 kHz
Vertical scan range	48 - 144 Hz
Viewable size, horizontal	79.7 cm
Viewable size, vertical	33.4 cm
Viewable size diagonal	86.5 cm

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	Yes
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Built-in camera	No

Design

Specification	Value
Market positioning	Gaming
Product colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	2
DVI port	No
HDMI	Yes
HDMI ports quantity	2
DisplayPorts quantity	2
Audio input	No
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	Yes
AC (power) in	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	11 cm
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
Picture-in-Picture	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
Number of OSD languages	10
Plug and Play	Yes
LED indicators	Yes

Power

Specification	Value
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	32 kWh
Energy consumption (HDR) per 1000 hours	61 kWh
Power consumption (typical)	60 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1 A
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 85%

Weight & dimensions

Specification	Value
Width (with stand)	808 mm
Depth (with stand)	256 mm
Height (with stand)	441.5 mm
Weight (with stand)	10.9 kg
Width (without stand)	808 mm
Depth (without stand)	112.5 mm
Height (without stand)	364 mm

Packaging data

Specification	Value
Package width	909 mm
Package depth	282 mm
Package height	505 mm

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, DisplayPort, HDMI, USB

Other features

Specification	Value
Compliance certificates	RoHS
Certification	CE, EAC, RoHS, WEEE

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
