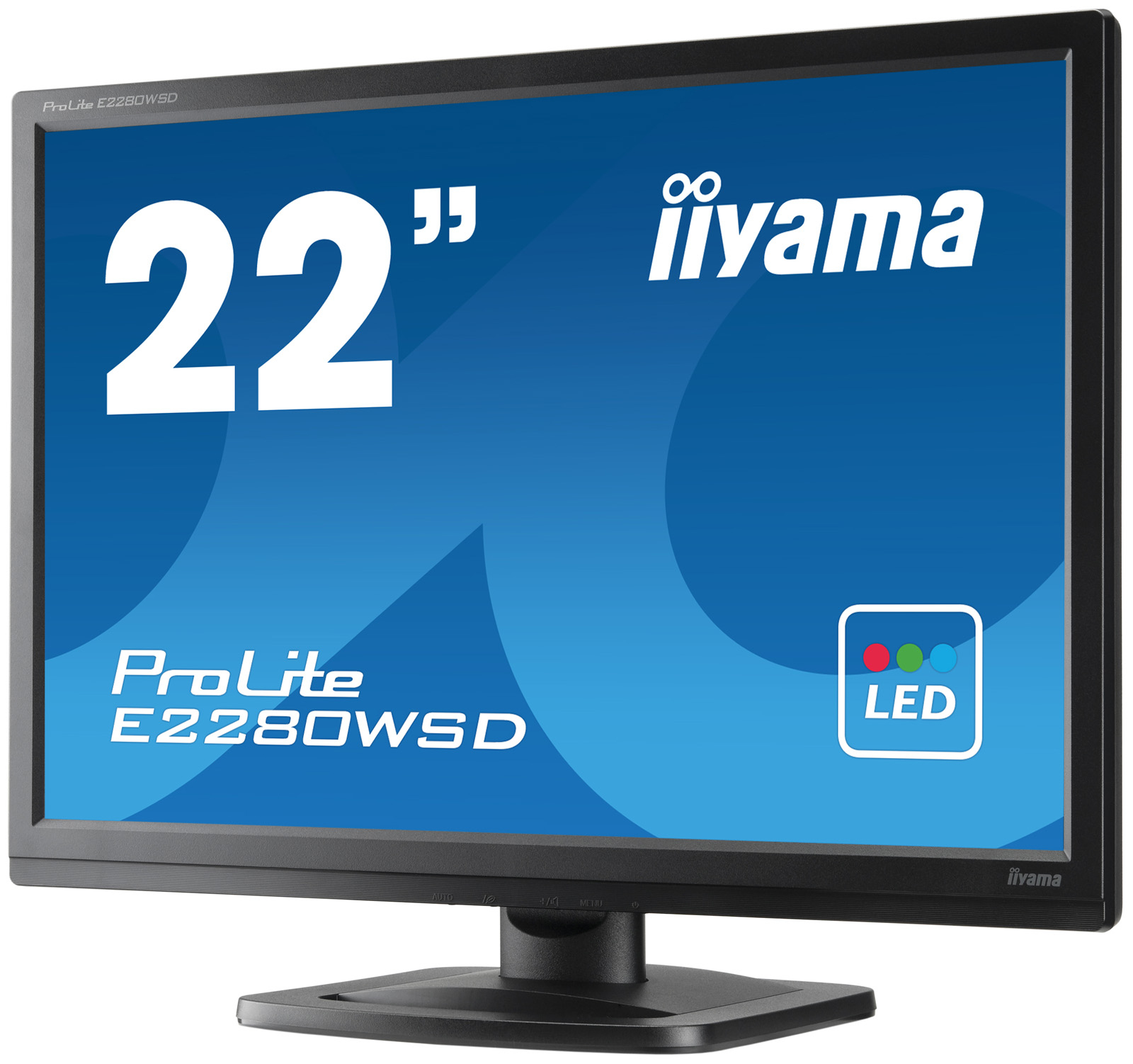

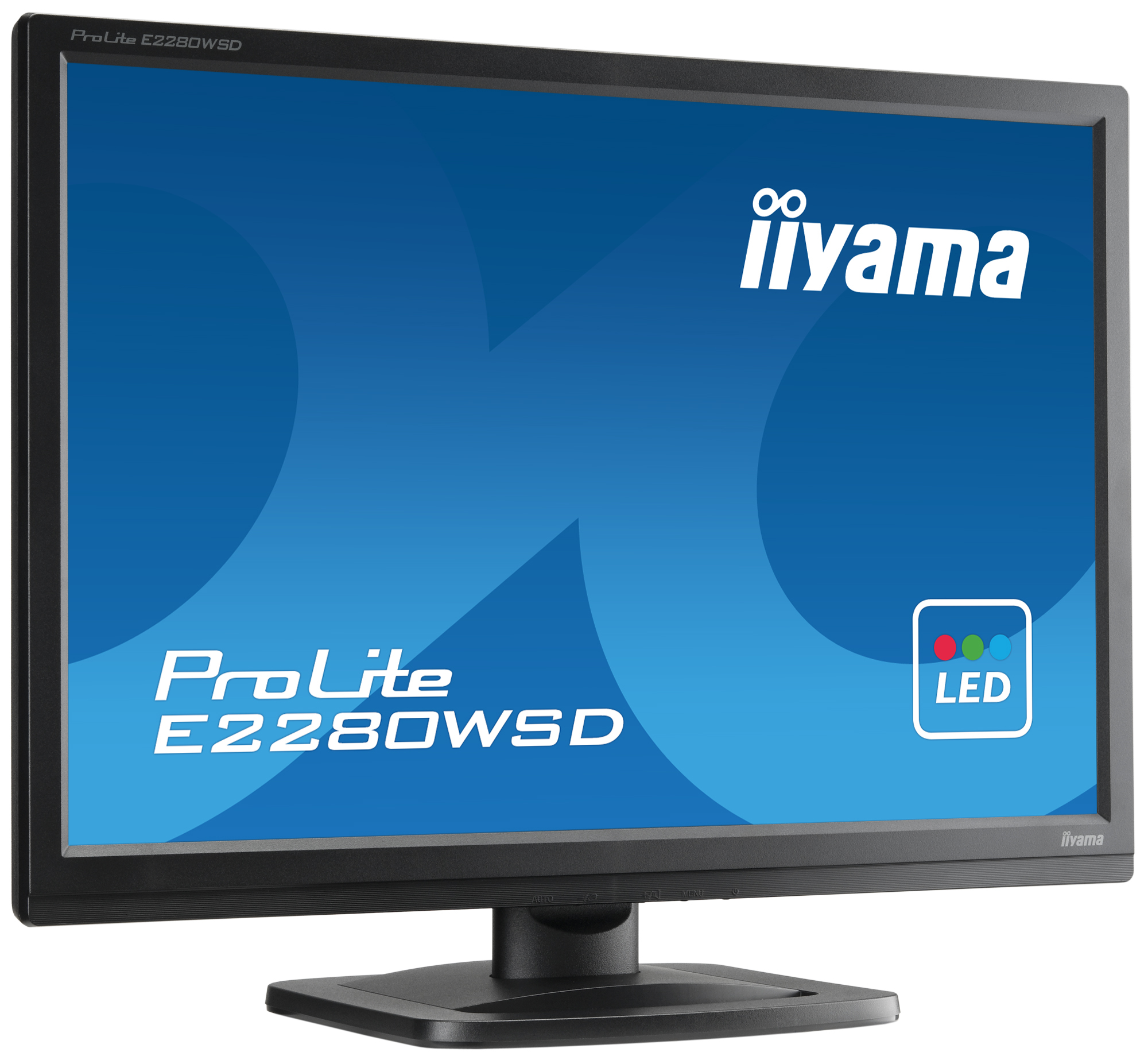

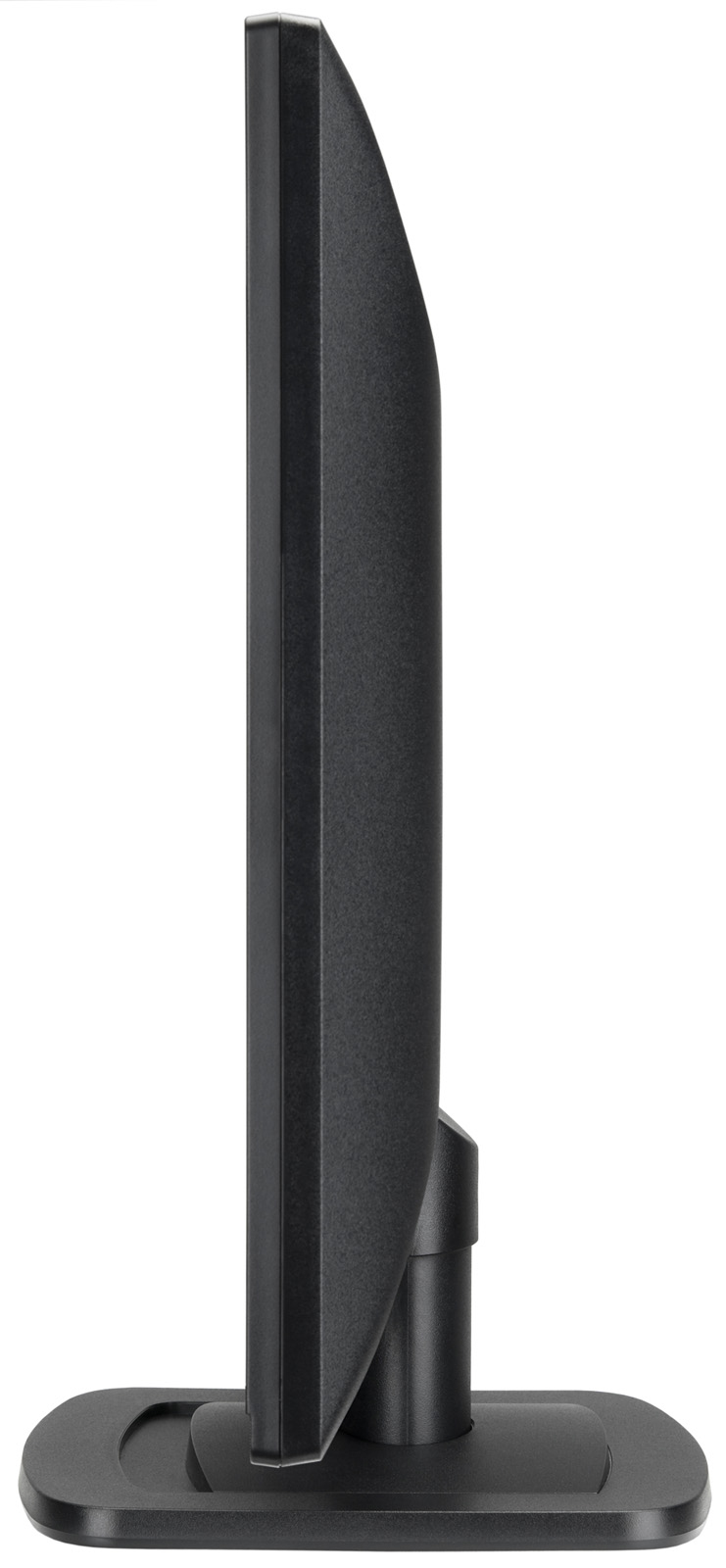

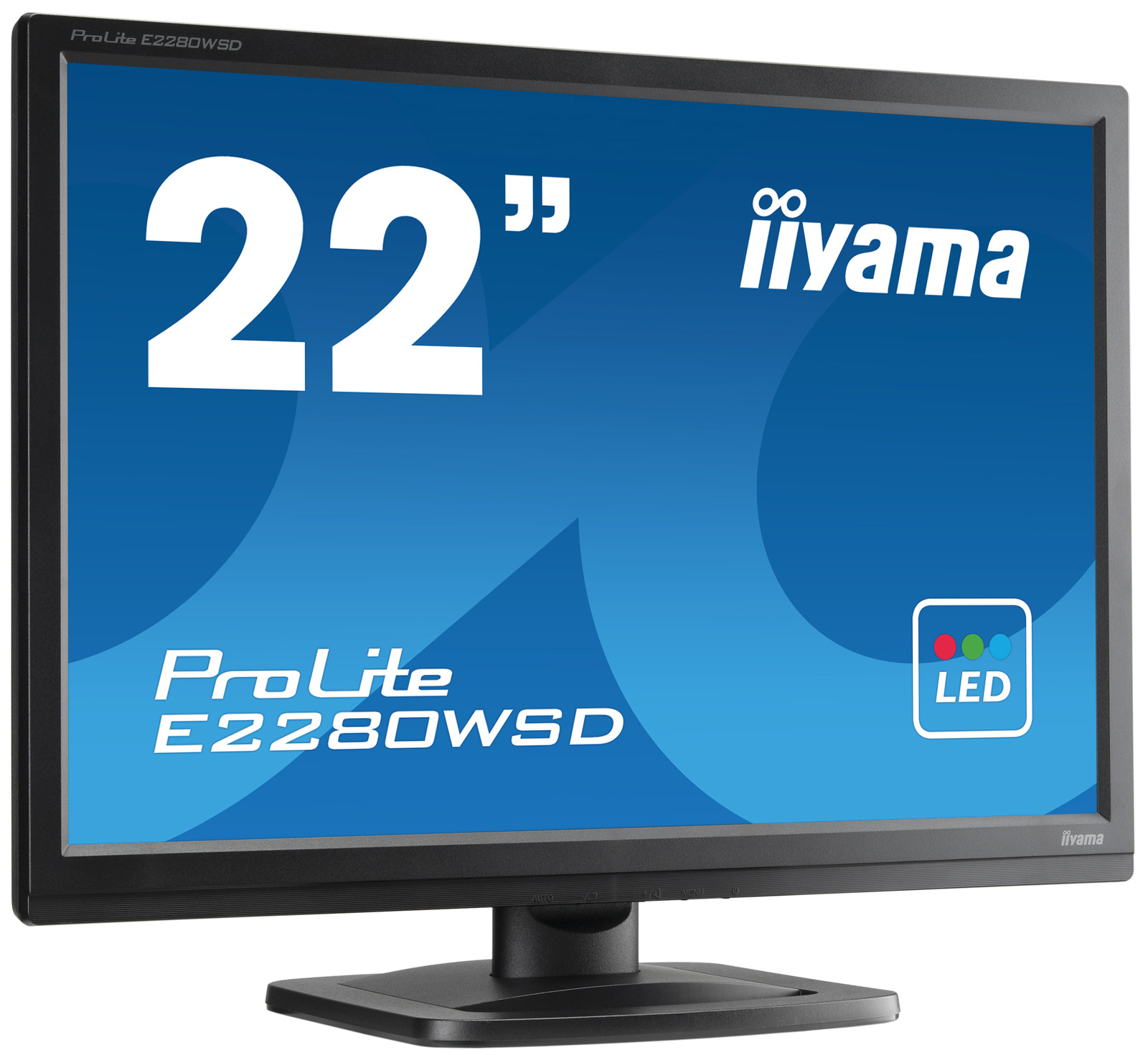

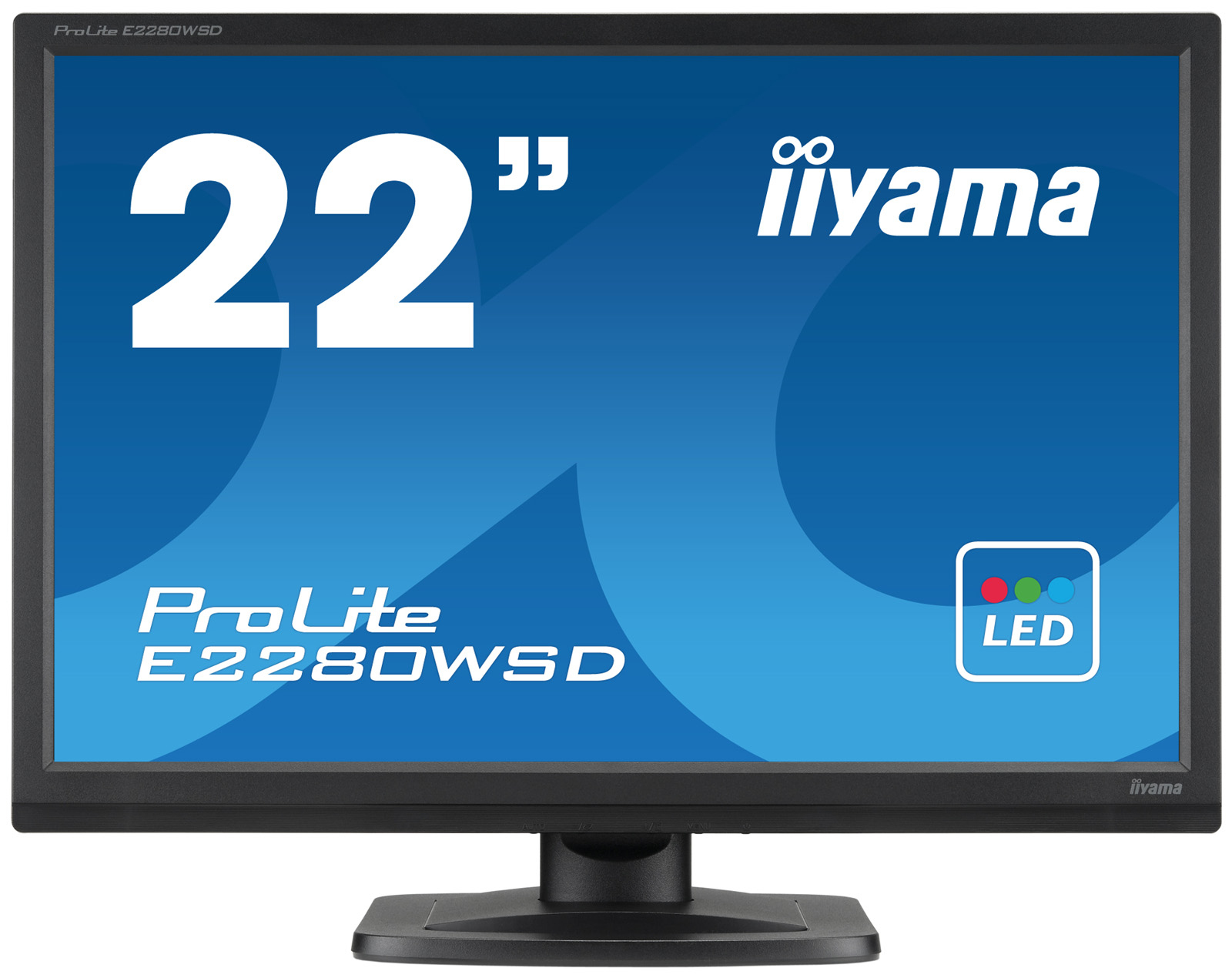

E2280WSD-1 computer monitor

55.9 cm (22") 1680 x 1050 pixels WSXGA+ LED Black

Model E2280WSD-1

64 specifications Checked today

Display55.9 cm (22")
Resolution1680 x 1050 pixels
Weight3.6 kg
ColourBlack
Built-in speaker(s)Yes
Market positioningBusiness

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Weight: 3.6 kg
Colour: Black
Built-in speaker(s): Yes
Market positioning: Business

Brand: iiyama
Category: Monitor
Model: E2280WSD-1
Part number: E2280WSD-1
Also known as: iiyama E2280WSD-1 computer monitor 55.9 cm (22") 1680 x 1050 pixels WSXGA+ LED Black

Specifications

64 specifications in 10 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
HD type	WSXGA+
Panel type	TN
LED backlight	Yes
Display brightness (typical)	250 cd/m²
Response time	5 ms
Response time measurement type	GTG (Gray to Gray)
Screen shape	Flat
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	5000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	24 - 80 kHz
Viewable size, horizontal	47.4 cm
Viewable size, vertical	29.6 cm
Display diagonal (metric)	56 cm

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W

Design

Specification	Value
Market positioning	Business
Product colour	Black

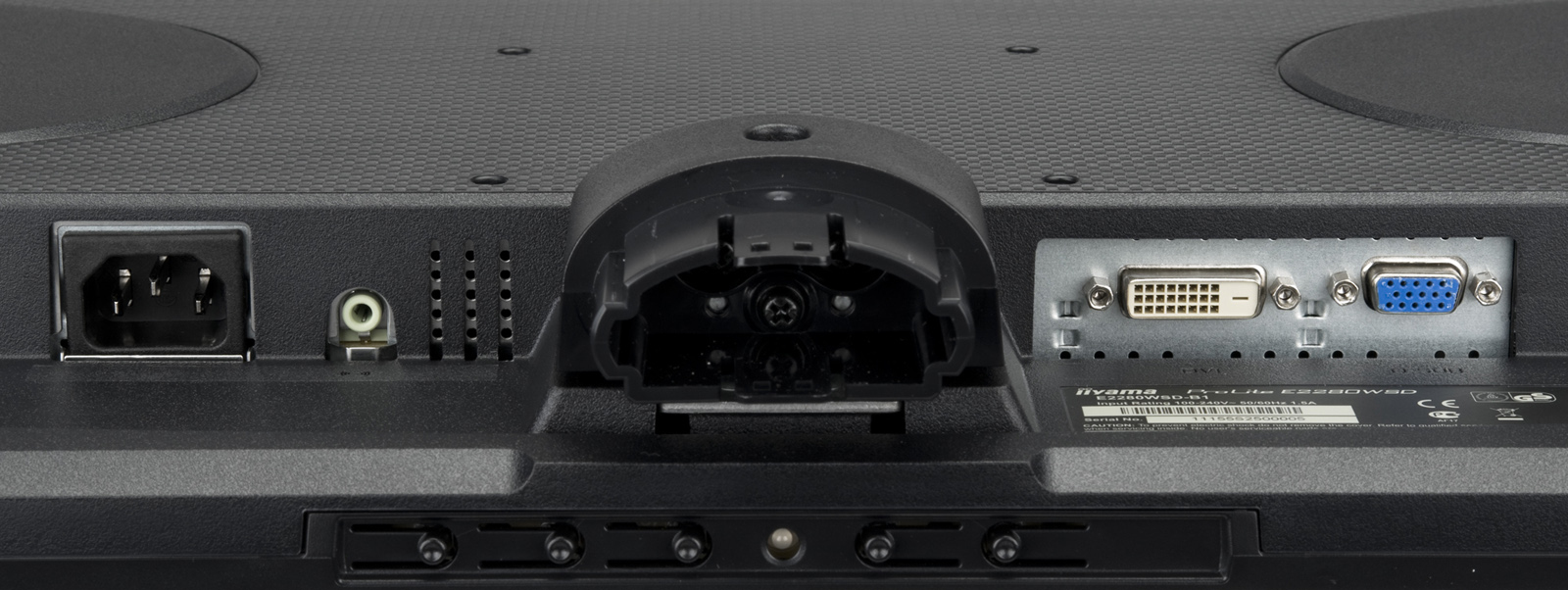

Ports & interfaces

Specification	Value
Built-in USB hub	No
Number of downstream ports	0
VGA (D-Sub) ports quantity	1
DVI port	Yes
HDMI	No
HDCP	Yes

Ergonomics

Specification	Value

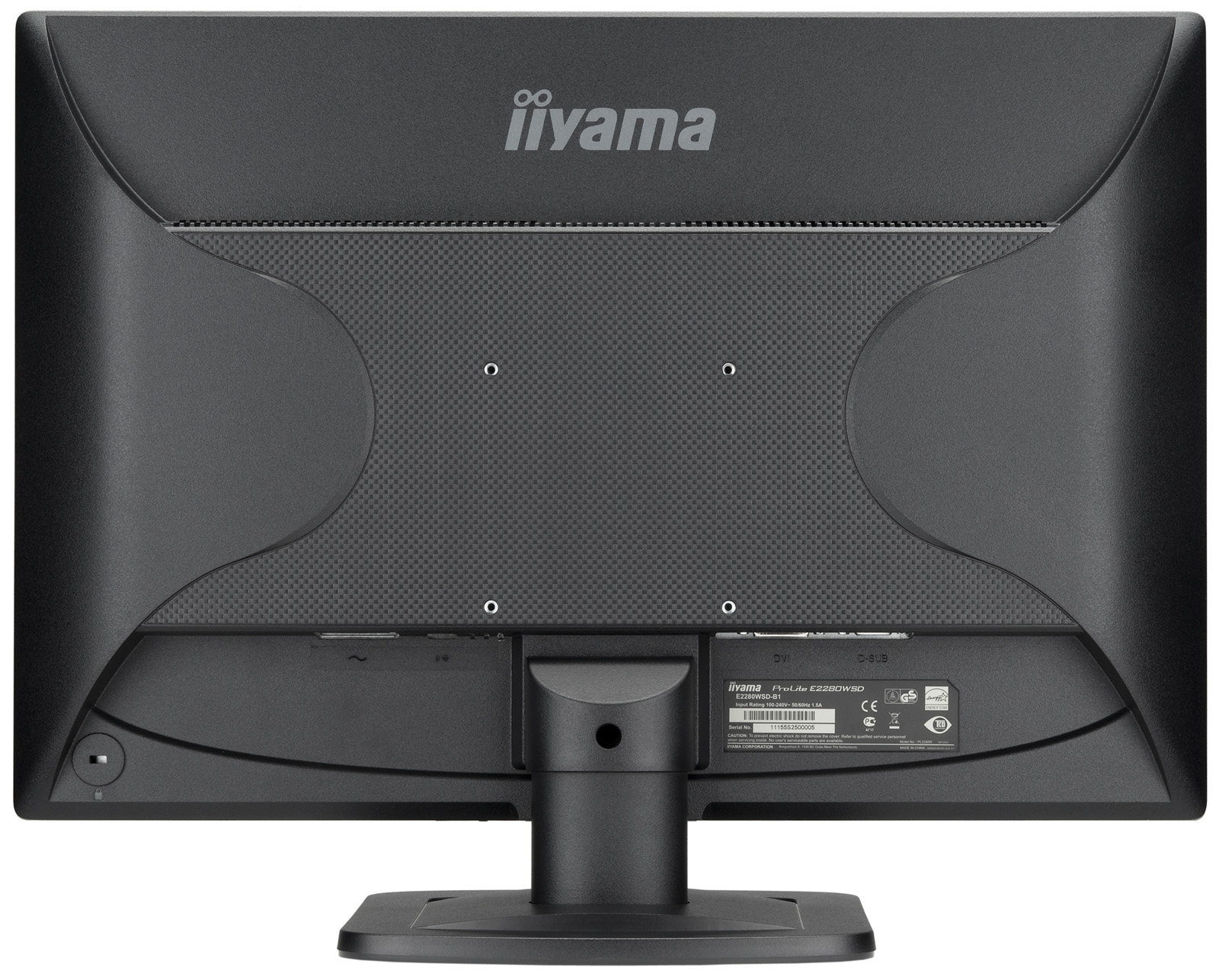

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Tilt angle range	4 - 21°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Traditional Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Number of OSD languages	9

Power

Specification	Value
Power consumption (typical)	21 W
Power consumption (standby)	1 W
Power consumption (off)	1 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal

Weight & dimensions

Specification	Value
Width (with stand)	512.5 mm
Depth (with stand)	204.5 mm
Height (with stand)	395.5 mm
Weight (with stand)	3.6 kg

Packaging content

Specification	Value
Cables included	AC
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ErP, TCO

Other features

Specification	Value
Compliance certificates	CE, REACH, RoHS, WEEE
Depth	204.5 mm
Height	395.5 mm
Packaging content	quick start guide, safety guide
Weight	3.6 kg
Width	512.5 mm
Certification	CE, TÜV-GS, RoHS, Erp, ENERGY STAR, WEEE, REACH
Control panel	Power, Menu, +/ Volume, -/ ECO, Auto
User controls	luminance (contrast, brightness, ECO, i-Style Colour, Adv. Contrast), image setup (clock, phase, H. position, V. position, aspect), colour temperature (gamma, colour temperature), OSD setup (H. position, V. position, timeout, language), others (reset, signal select, information)
