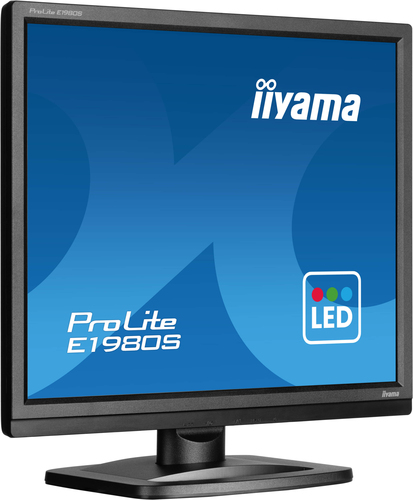

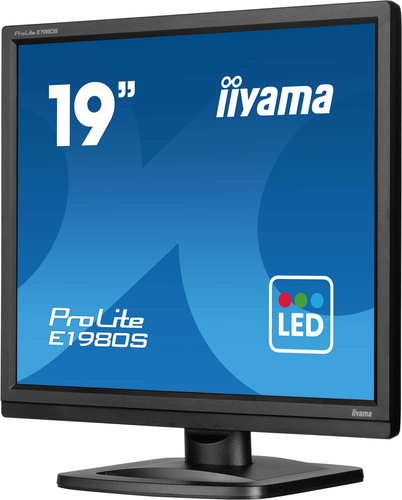

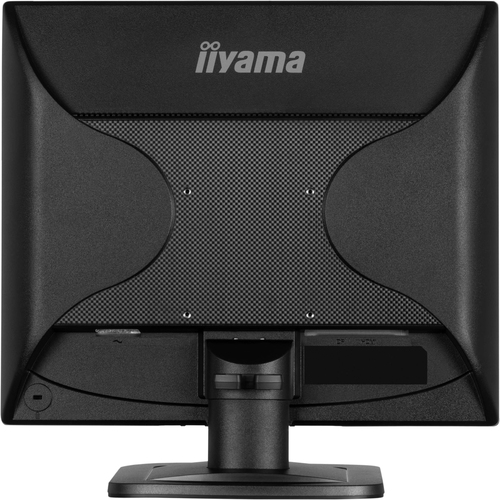

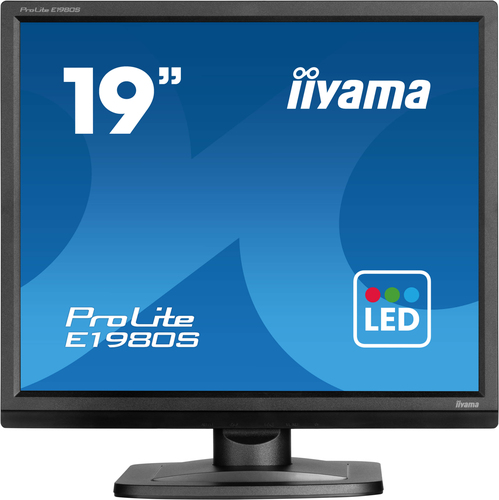

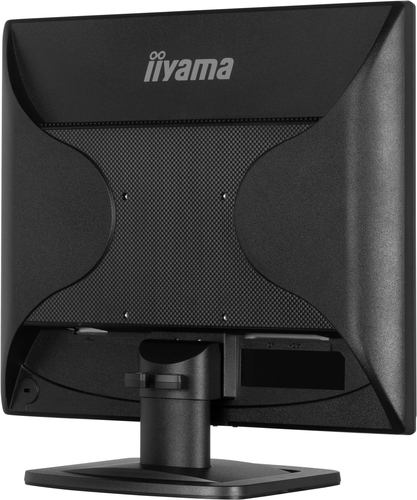

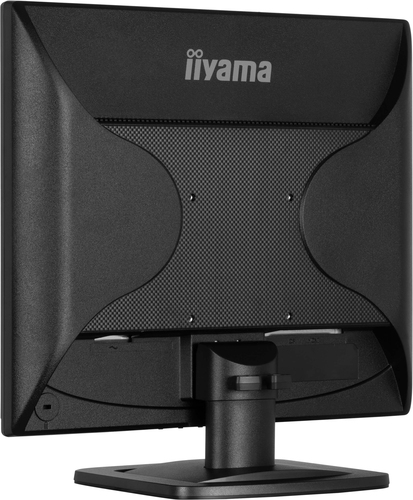

ProLite E1980S-B1 computer monitor
48.3 cm (19") 1280 x 1024 pixels VGA LED Black
Model E1980S-B1EAN 4948570125418
81 specifications Checked today
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- Energy classD
- Weight3.1 kg
- ColourBlack
- Built-in speaker(s)Yes
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Energy class
- D
- Weight
- 3.1 kg
- Colour
- Black
- Built-in speaker(s)
- Yes
- Brand
- iiyama
- Category
- Monitor
- Model
- E1980S-B1
- Part number
- E1980S-B1
- EAN / UPC
- 4948570125418
- Also known as
- iiyama ProLite E1980S-B1 computer monitor 48.3 cm (19") 1280 x 1024 pixels VGA LED Black
Specifications
81 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LED |
| Touchscreen | No |
| HD type | VGA |
| Panel type | TN |
| Display brightness (typical) | 250 cd/m² |
| Response time | 3 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 12000000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Horizontal scan range | 30 - 80 kHz |
| Viewable size, horizontal | 37.6 cm |
| Viewable size, vertical | 30.1 cm |
| Display diagonal (metric) | 48 cm |
| Colour gamut standard | NTSC, sRGB |
| sRGB coverage (typical) | 99% |
| NTSC coverage (typical) | 72% |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | 5 - 23° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10.9 kWh |
| Power consumption (typical) | 12 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 411 mm |
| Depth (with stand) | 204.5 mm |
| Height (with stand) | 402 mm |
| Weight (with stand) | 3.1 kg |
| Width (without stand) | 411 mm |
| Depth (without stand) | 245.5 mm |
| Height (without stand) | 453 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 474 mm |
| Package depth | 122 mm |
| Package height | 427 mm |
| Package weight | 4.1 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Depth | 204.5 mm |
| Height | 402 mm |
| Packaging content | quick start guide, safety guide |
| Weight | 3.1 kg |
| Width | 411 mm |
| Control panel | Power, Menu, + / Volume, -/ Eco, Signal Select (Auto) |
| User controls | picture adjust (contrast, brightness, i-Style colour, ACR, Eco, OD, X-Res technology), image setup (blue light reducer, sharpness), colour settings (gamma, 6-axis, colour temp.), audio settings (volume, mute), OSD settings (H. position, V. position, OSD time, language), extra (reset, DDC/CI control, |
Technical details
| Specification | Value |
|---|---|
| Native refresh rate | 60 Hz |
