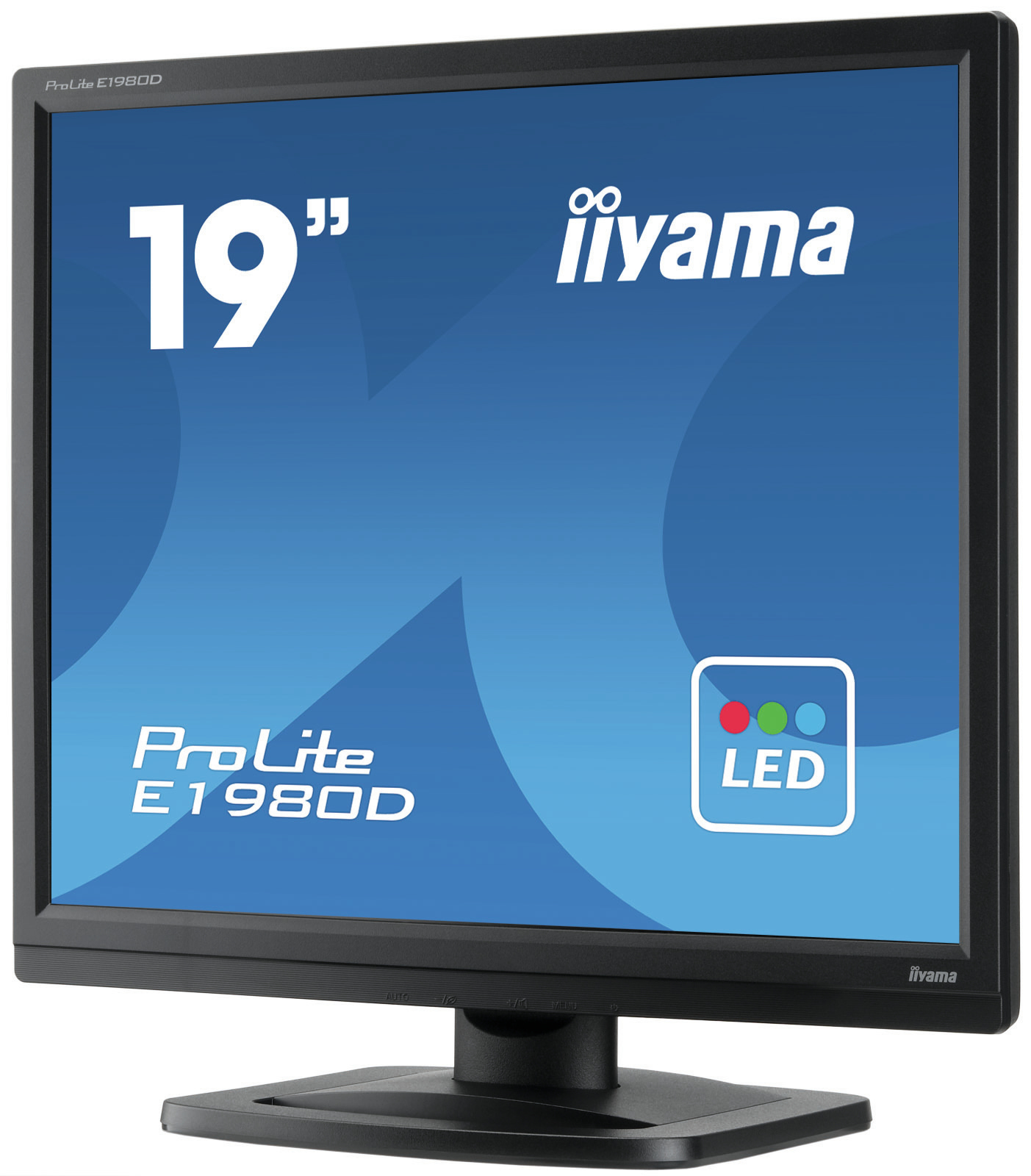

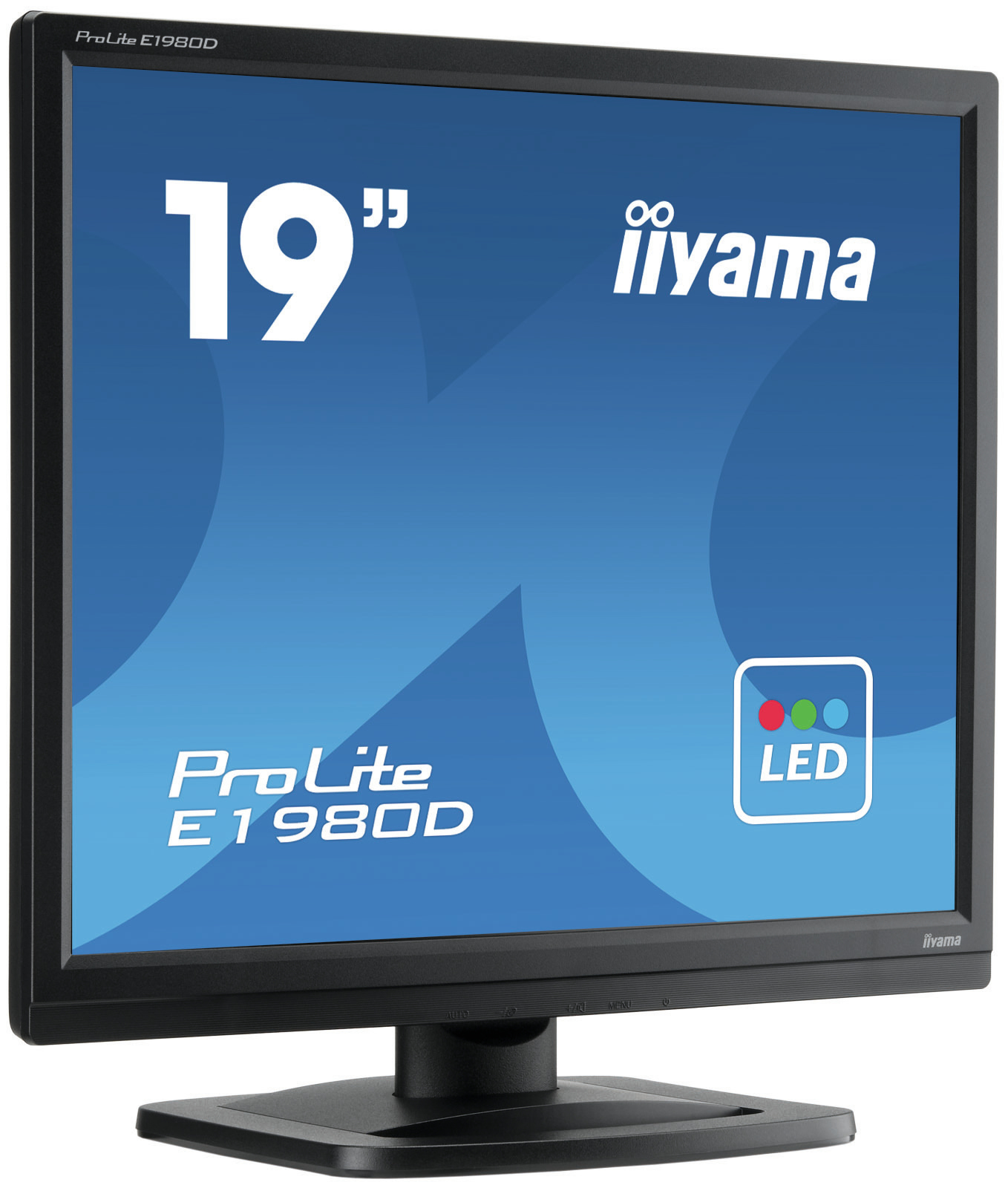

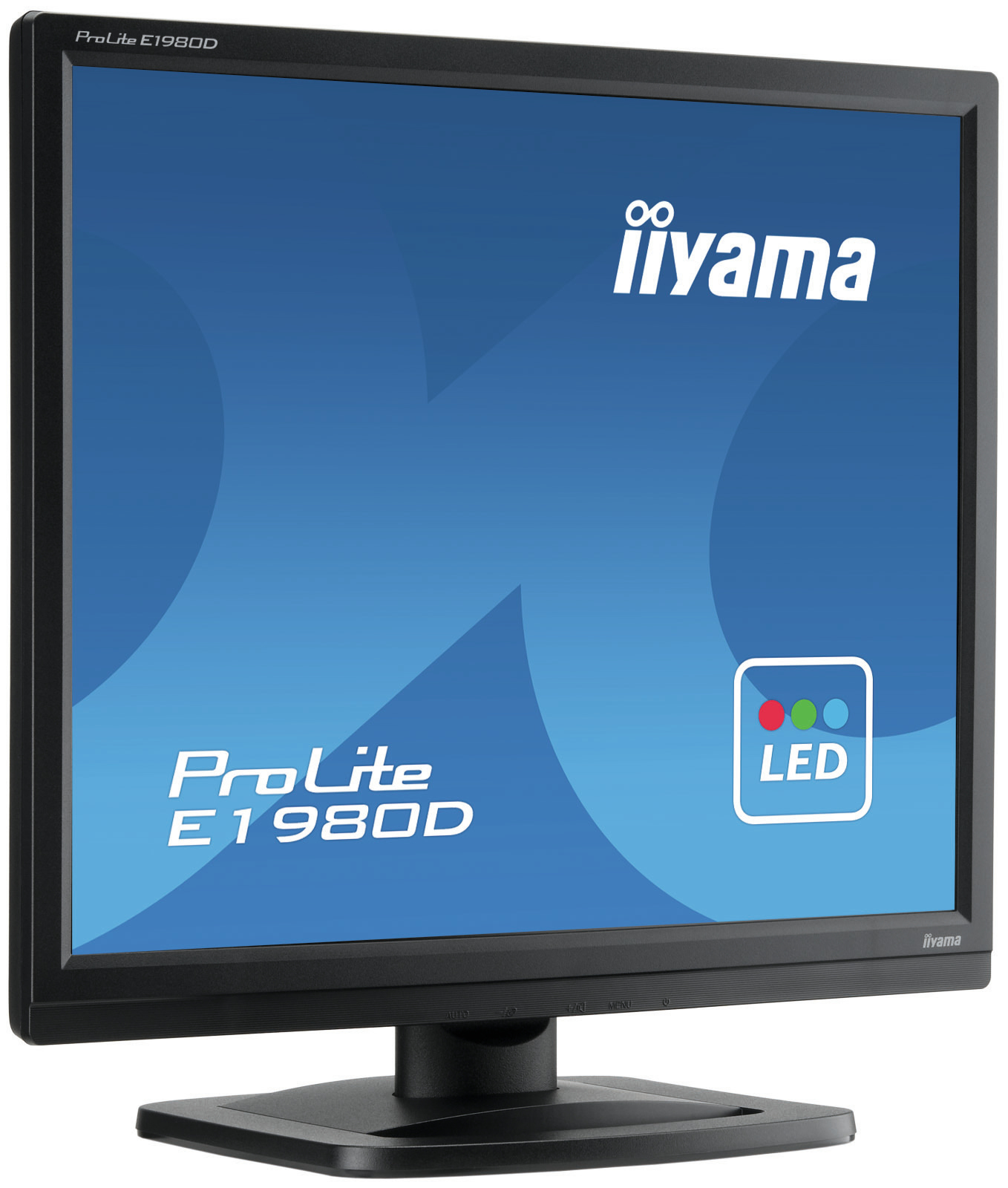

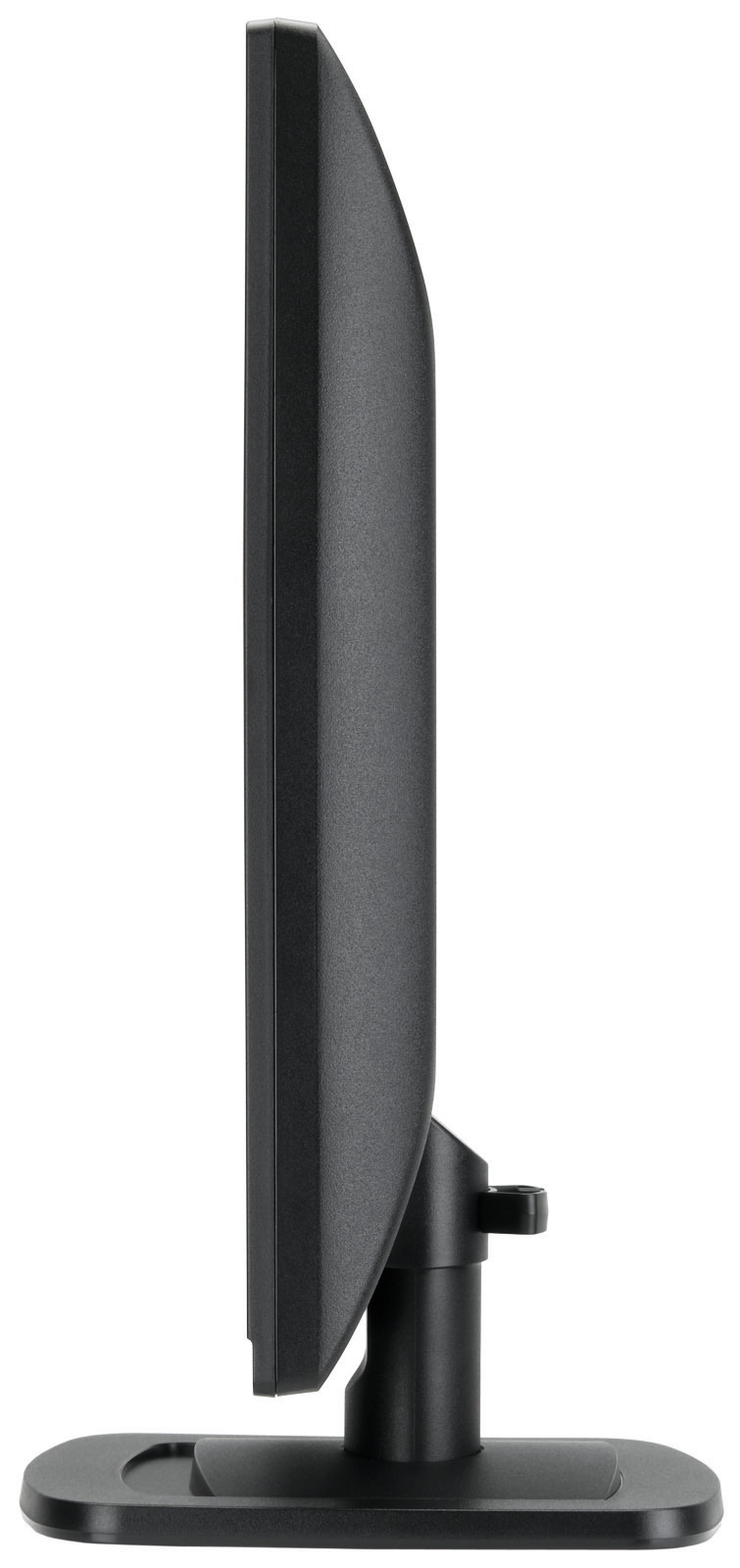

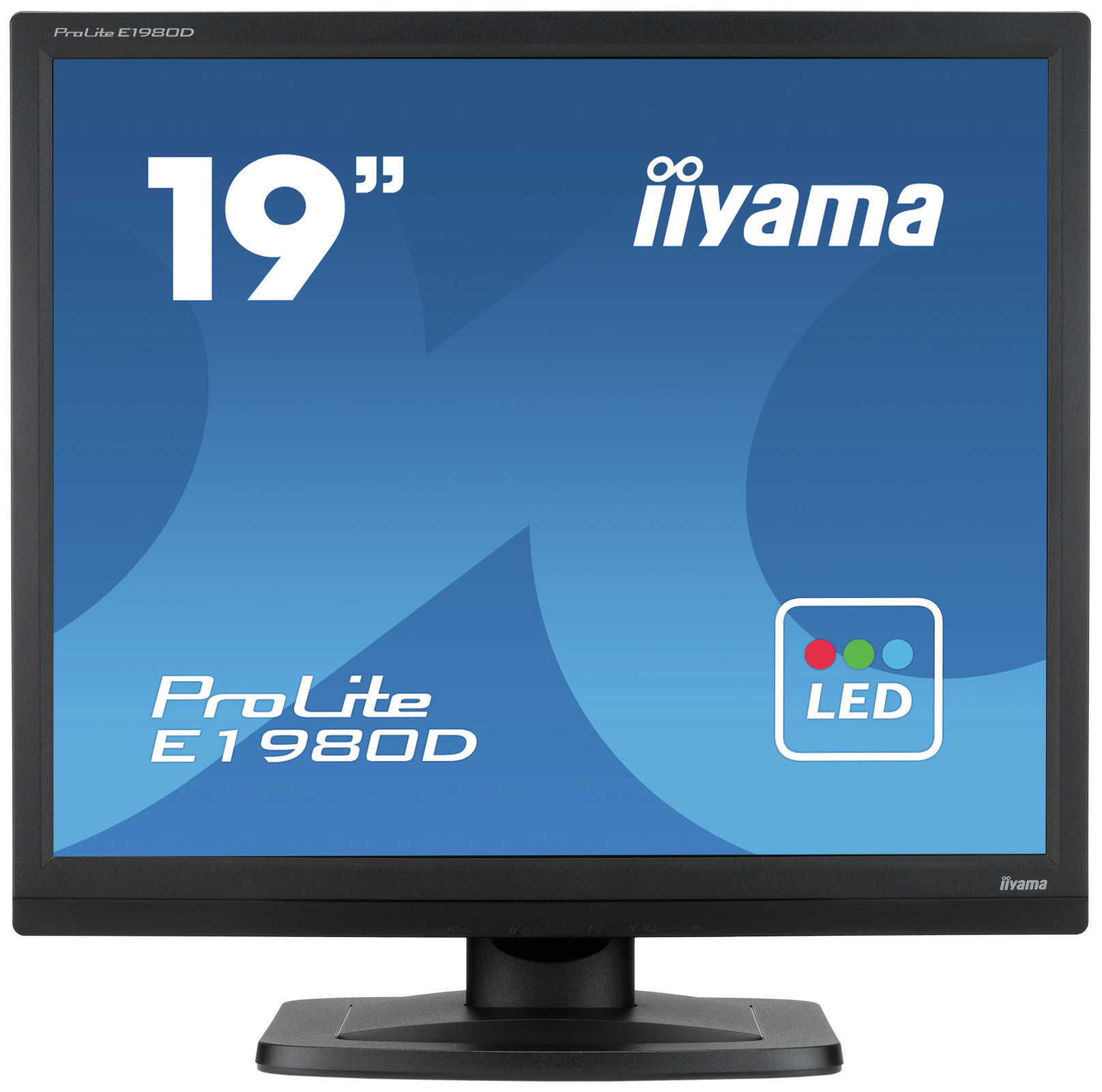

iiyama ProLite E1980D-B1 computer monitor

ProLite E1980D-B1 computer monitor

48.3 cm (19") 1280 x 1024 pixels XGA LED Black

Model E1980D-B1EAN 4948570119332

70 specifications Checked today

Display48.3 cm (19")
Resolution1280 x 1024 pixels
Energy classE
ColourBlack
NVIDIA G-SYNCNo
Market positioningBusiness

See all specifications

Overview

Display: 48.3 cm (19")
Resolution: 1280 x 1024 pixels
Energy class: E
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Business

Brand: iiyama
Category: Monitor
Model: E1980D-B1
Part number: E1980D-B1
EAN / UPC: 4948570119332, 5704174946922
Also known as: iiyama ProLite E1980D-B1 computer monitor 48.3 cm (19") 1280 x 1024 pixels XGA LED Black

Specifications

70 specifications in 14 groups

Display

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
HD type	XGA
Panel type	TN
Display brightness (typical)	250 cd/m²
Response time	5 ms
Display surface	Matt
Screen shape	Flat
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	12000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.7 million colours
Pixel pitch	0.294 x 0.294 mm
Horizontal scan range	24 - 83 kHz
Viewable size, horizontal	37.6 cm
Viewable size, vertical	30.1 cm
Display diagonal (metric)	48 cm
sRGB coverage (typical)	99%
NTSC coverage (typical)	72%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI	No
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-4 - 21°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese, Portuguese, Russian
Number of OSD languages	9

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	15 kWh
Power consumption (typical)	16 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 85%

Weight & dimensions

Specification	Value
Width (with stand)	411 mm
Depth (with stand)	204.5 mm
Height (with stand)	402 mm
Weight (with stand)	3.2 kg

Packaging data

Specification	Value
Package width	122 mm
Package depth	427 mm
Package weight	4.6 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, DVI
Quick start guide	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver

Other features

Specification	Value
Compliance certificates	CE, REACH, RoHS, WEEE

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
