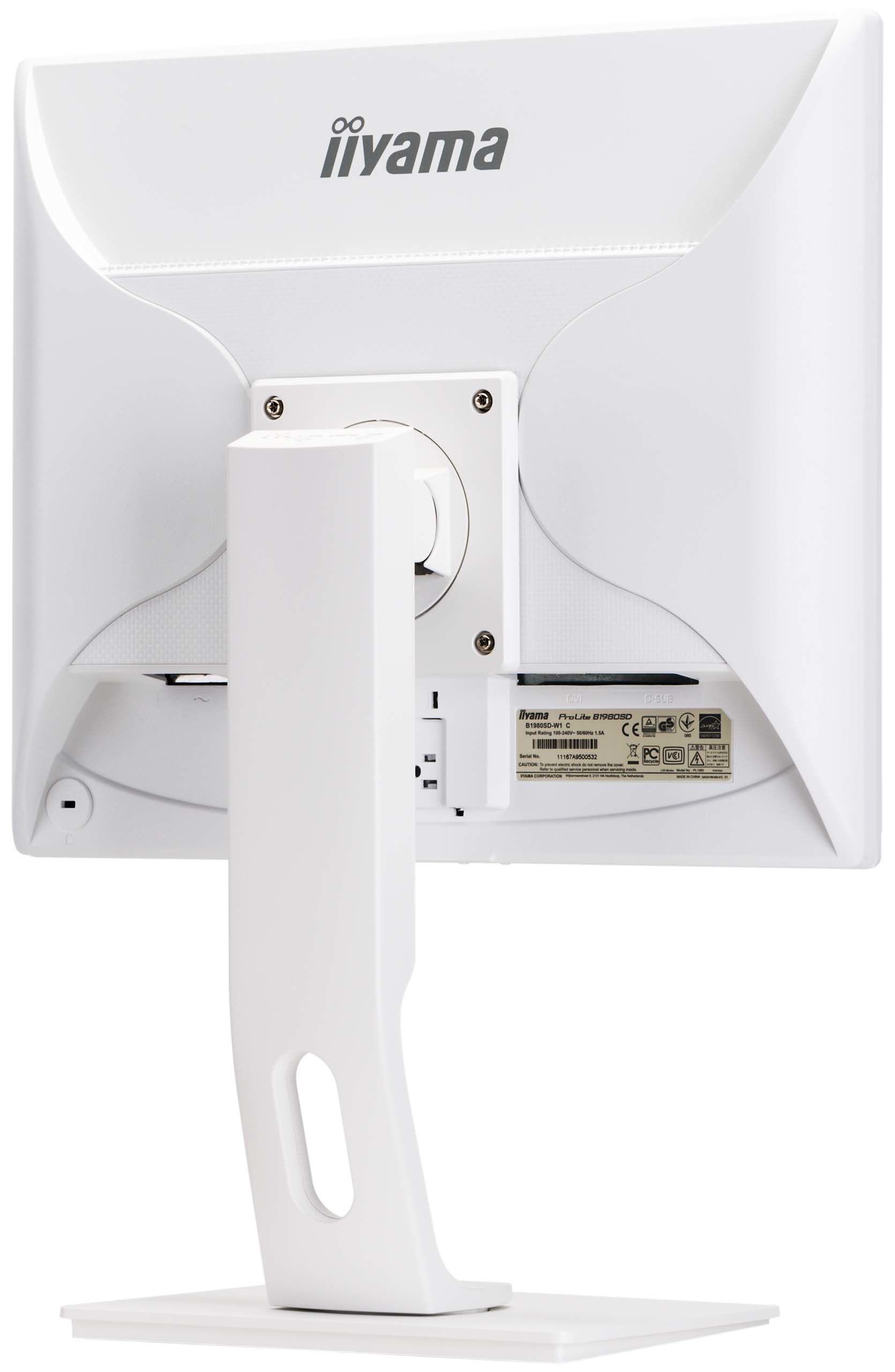

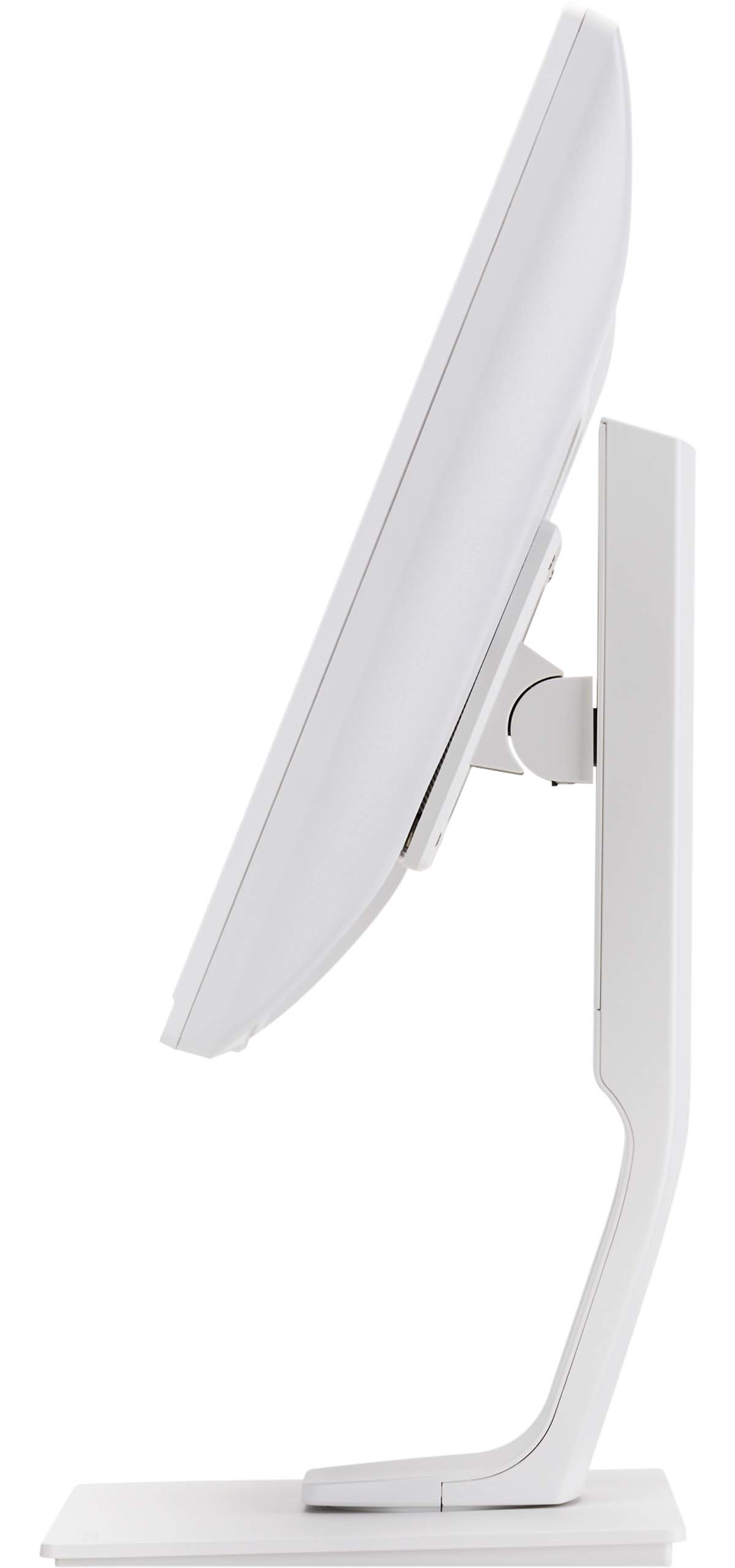

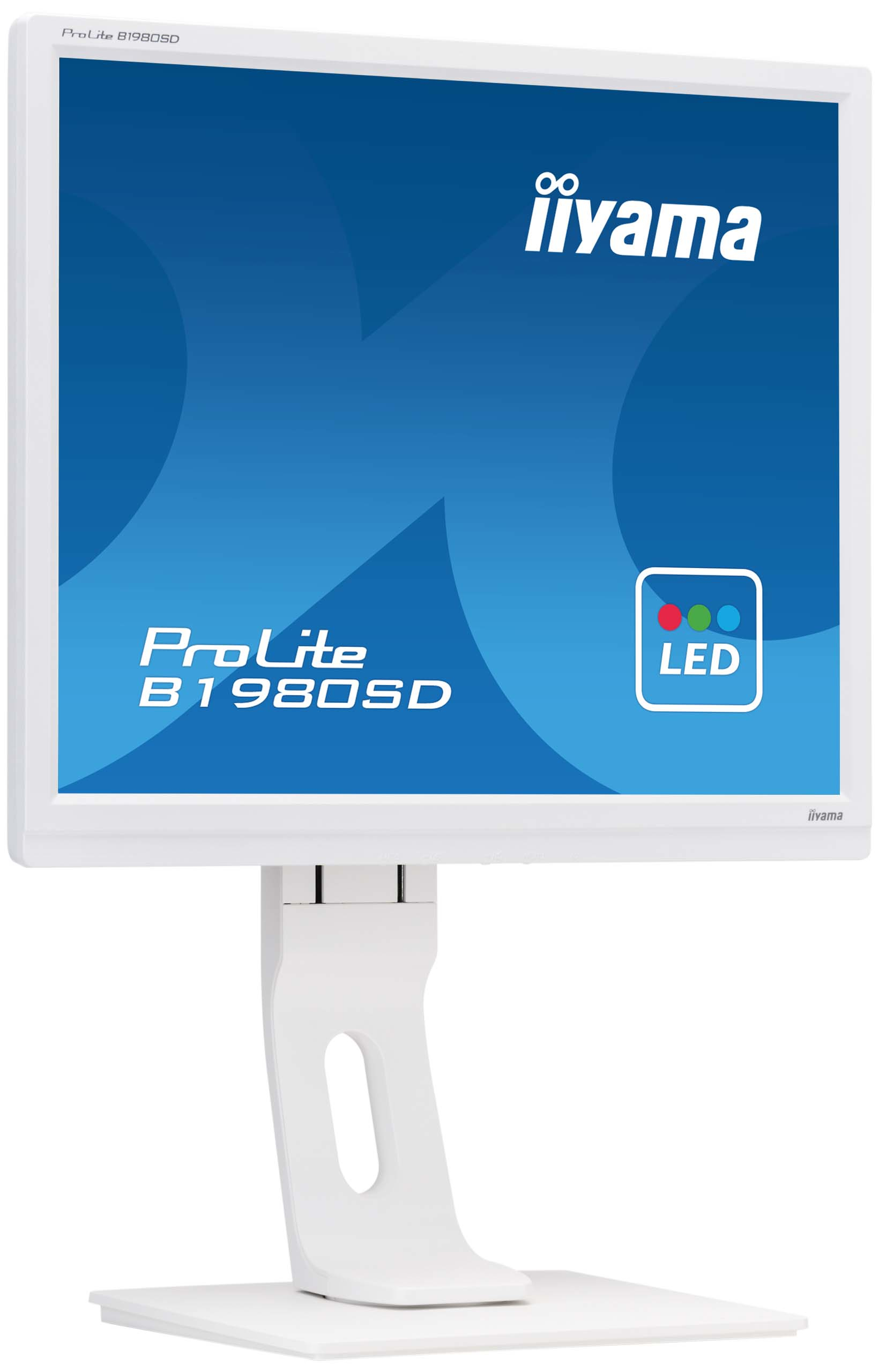

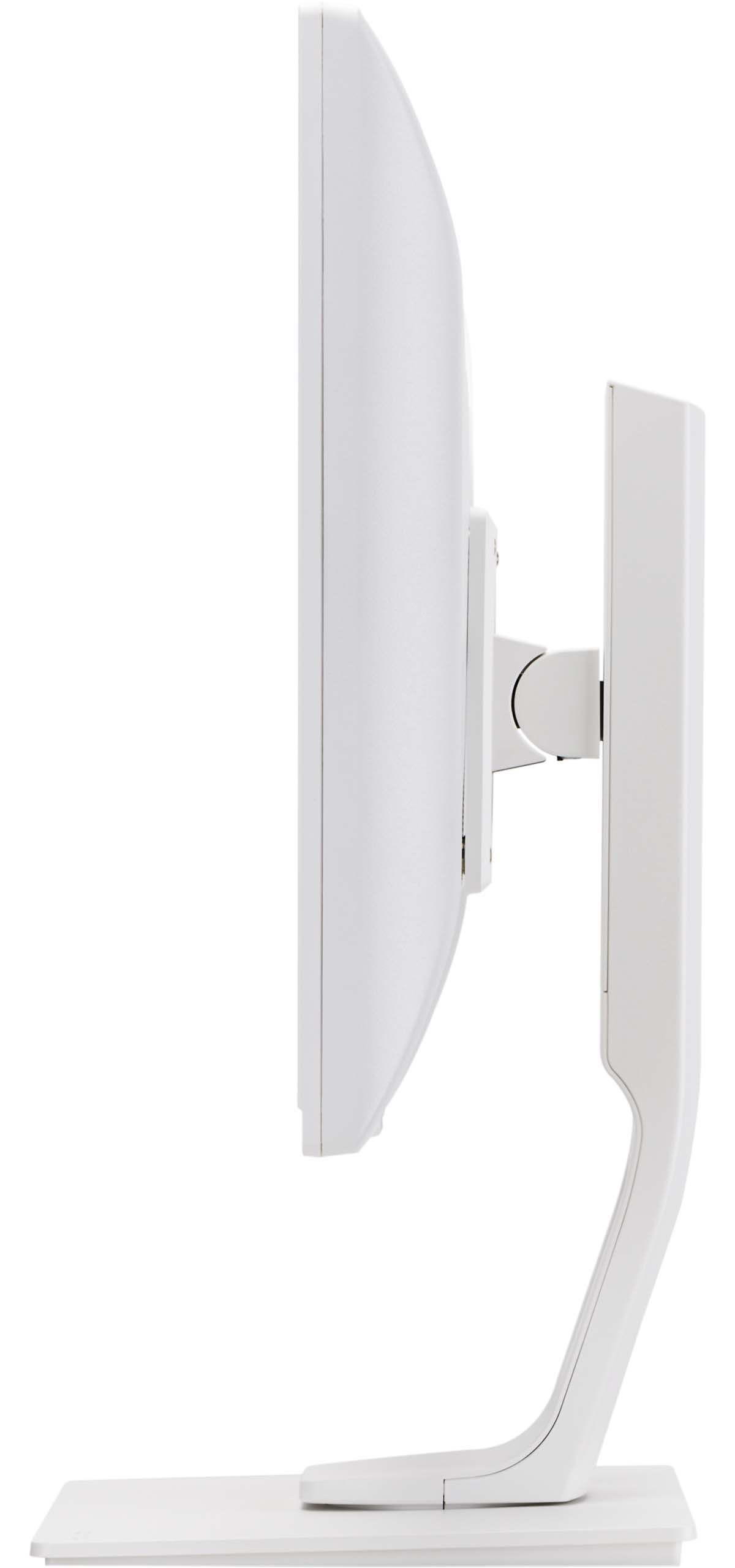

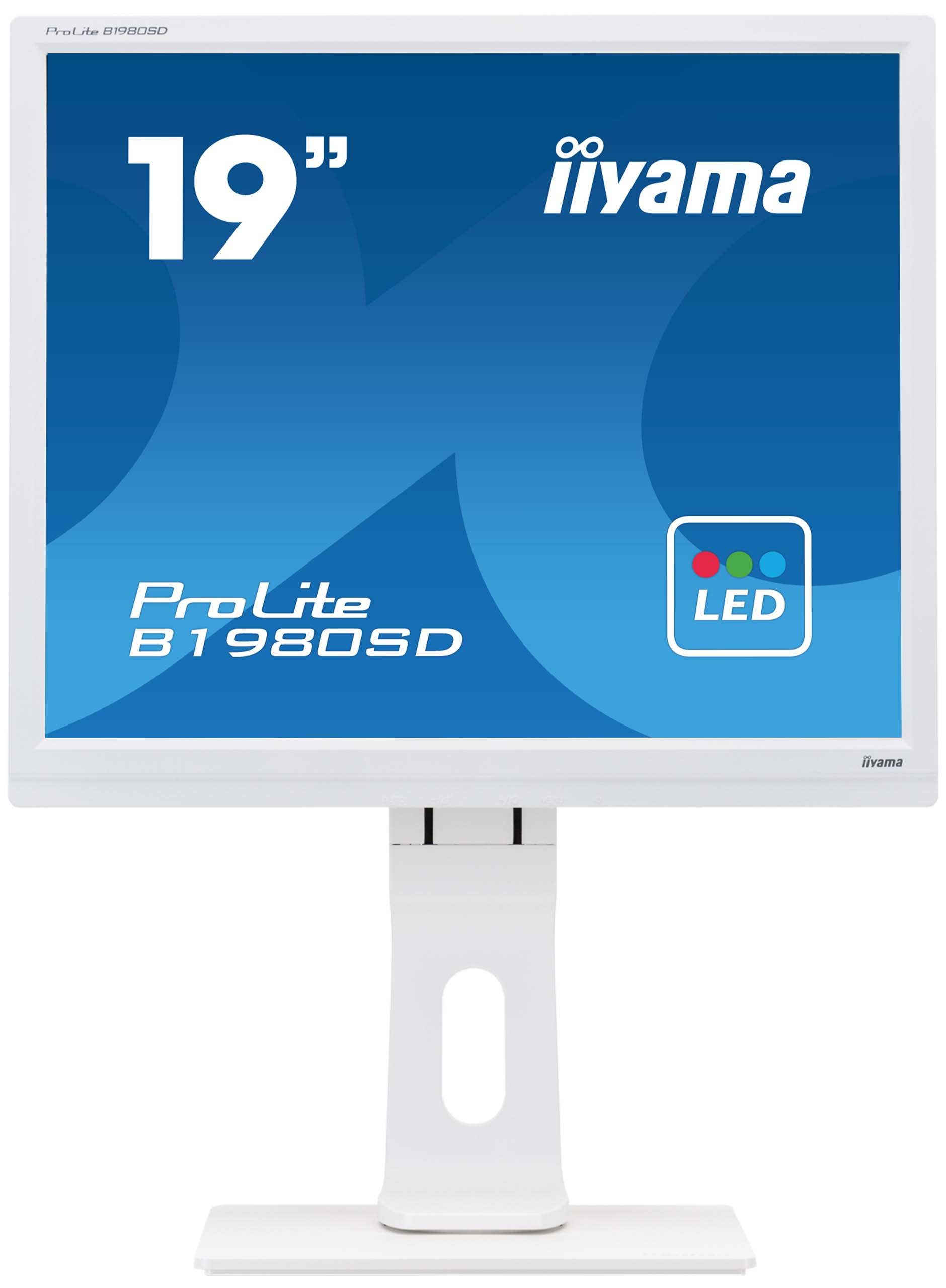

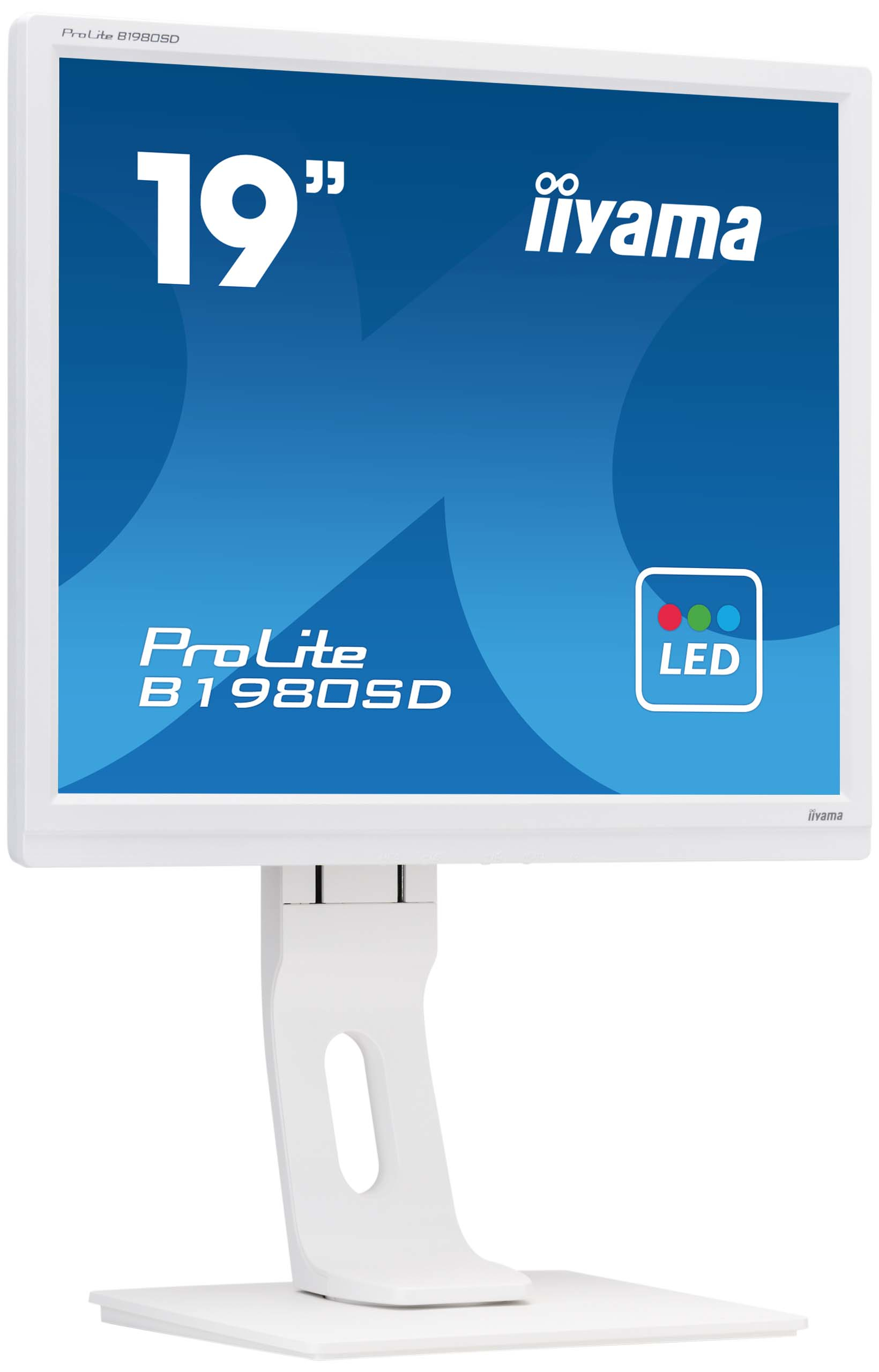

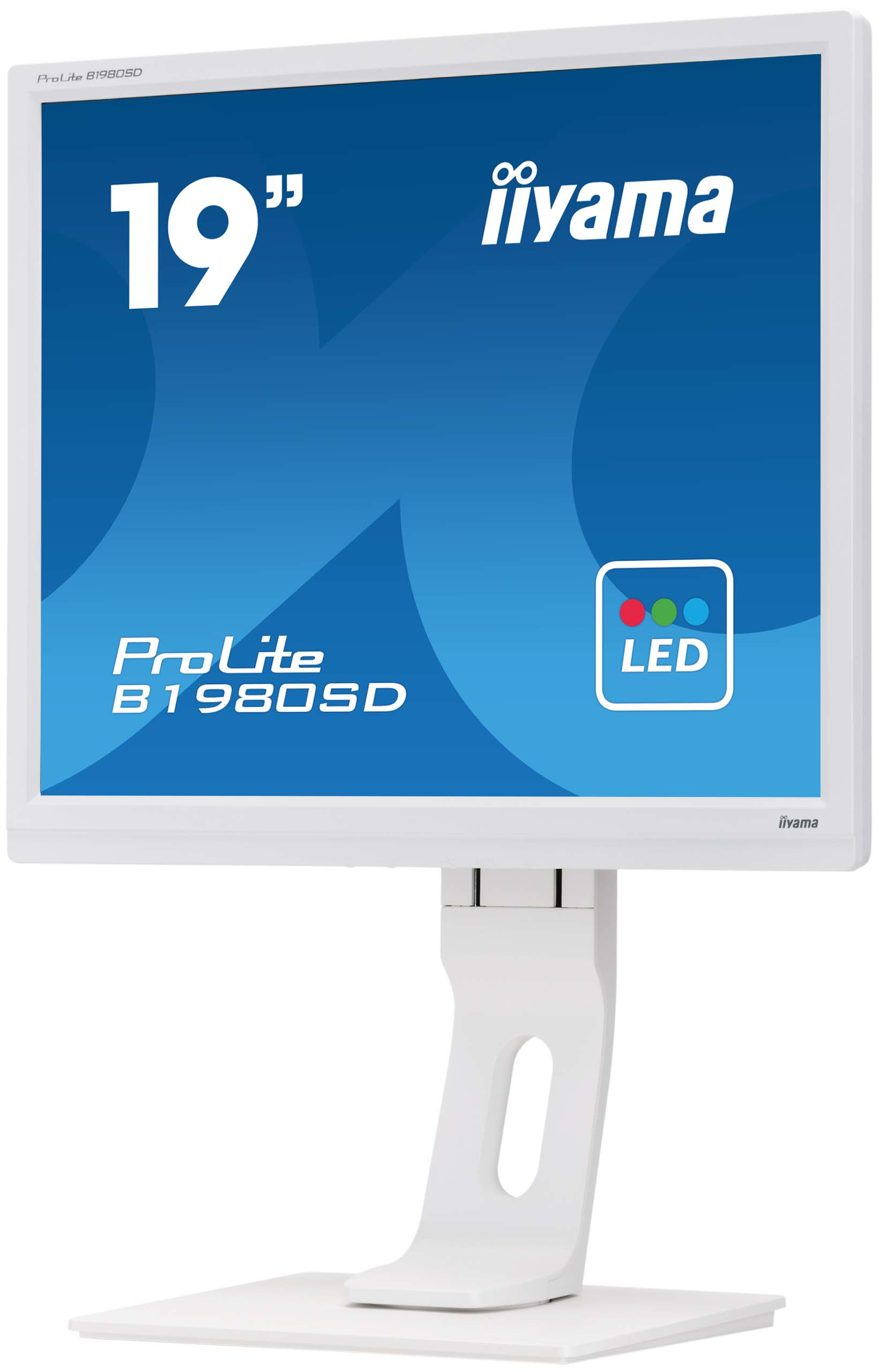

iiyama ProLite B1980SD-W1 computer monitor

48.3 cm (19") 1280 x 1024 pixels LED White

Model B1980SD-W1EAN 4948570111671

109 specifications Checked 3 days ago

Overview

Brand: iiyama
Category: Monitor
Model: B1980SD-W1
Part number: B1980SD-W1
EAN / UPC: 4948570111671, 5054484243649, 5054533243644, 5054629179604
Also known as: iiyama ProLite B1980SD-W1 computer monitor 48.3 cm (19") 1280 x 1024 pixels LED White

109 specifications in 15 groups

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
Panel type	TN
Display brightness (typical)	250 cd/m²
Response time	5 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Aspect ratio	5:4
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	12000000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.294 x 0.294 mm
Horizontal scan range	24 - 80 kHz
Vertical scan range	56 - 75 Hz
Viewable size, horizontal	37.6 cm
Viewable size, vertical	30.1 cm
Colour gamut standard	sRGB
3D	No

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8
Mac operating systems supported	Yes

Specification	Value
Market positioning	Business
Product colour	White

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
Headphone outputs	0
PC Audio in	Yes
HDCP	Yes
AC (power) in	Yes
Composite video in	0
Composite video out	0
SCART ports quantity	0
RF ports quantity	0
Digital audio optical out	0
BNC input ports	0
Component video (YPbPr/YCbCr) in	0
Component video (YPbPr/YCbCr) out	0
Firewire (IEEE 1394) ports	0
RS-232 ports	0
RS-485 ports	0
S-Video inputs quantity	0
Thunderbolt ports quantity	0

Specification	Value

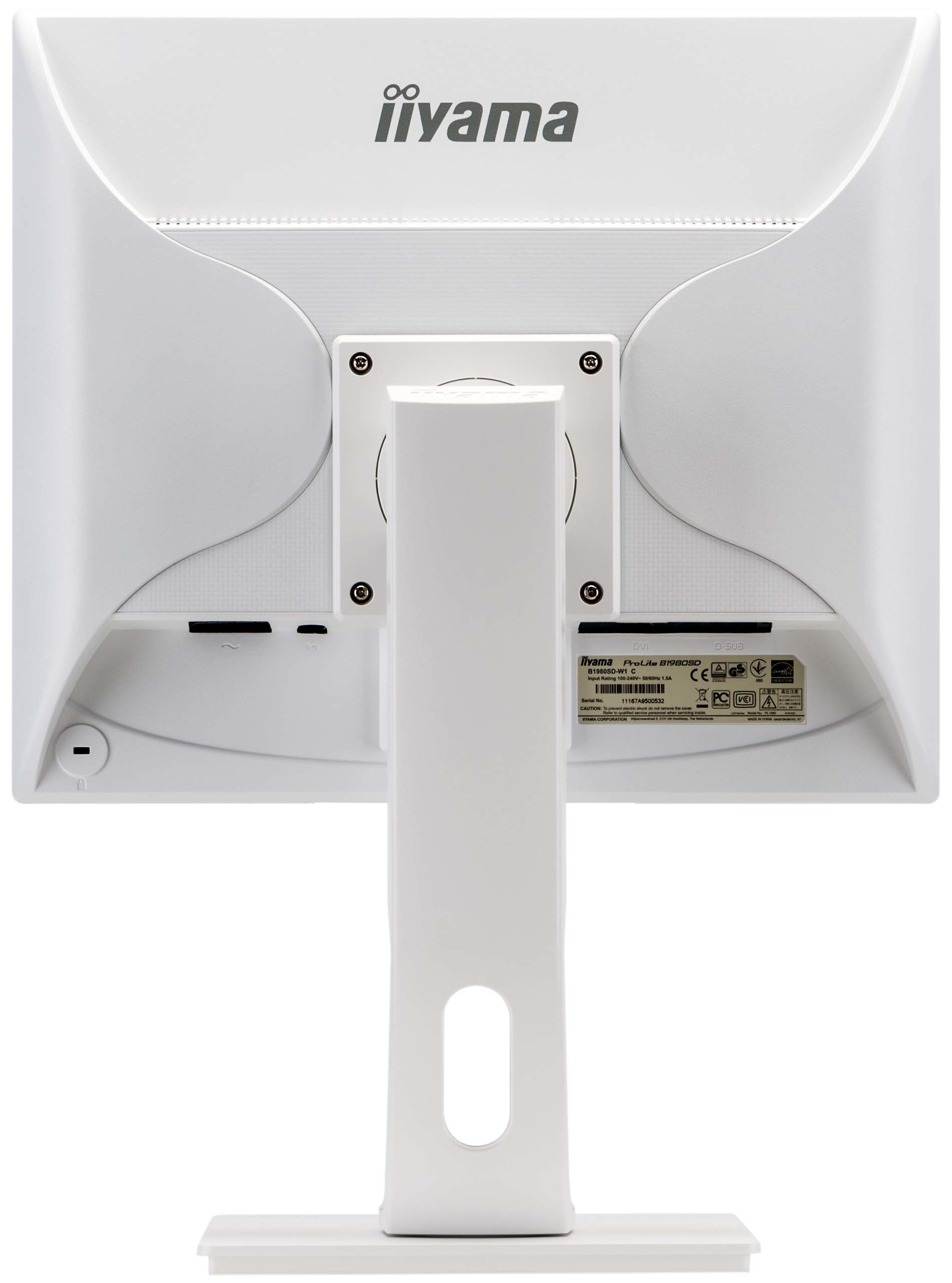

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	13 cm

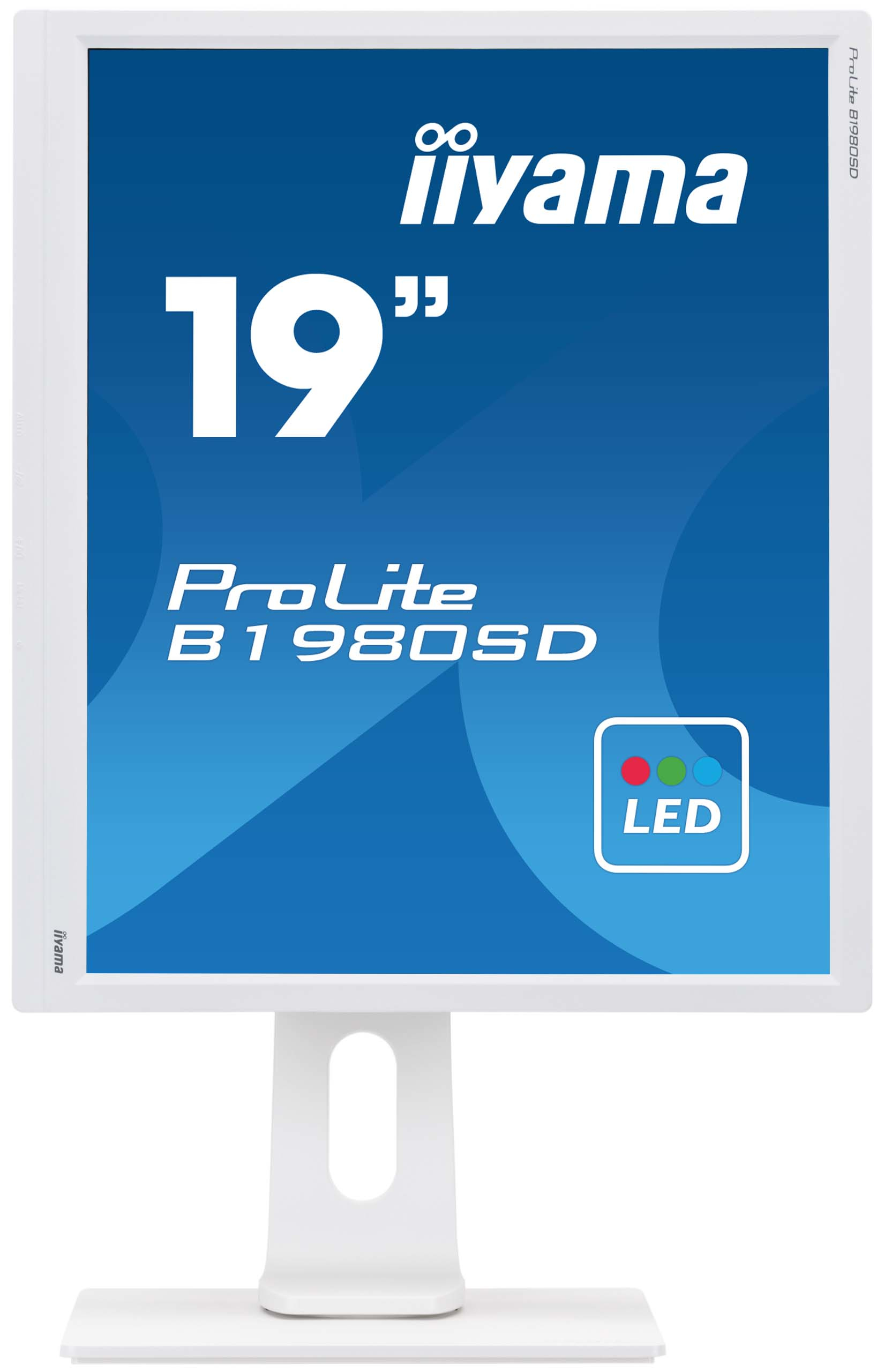

Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-160 - 160°
Tilt adjustment	Yes
Tilt angle range	-5 - 22°
Picture-in-Picture	No
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian
Number of OSD languages	9
Plug and Play	Yes

Specification	Value
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	15 kWh
Power consumption (typical)	16 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 85%

Specification	Value
Quantity per pack	1 pc(s)

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Specification	Value
Thin client installed	Yes

Specification	Value
Harmonized System (HS) code	85285210
