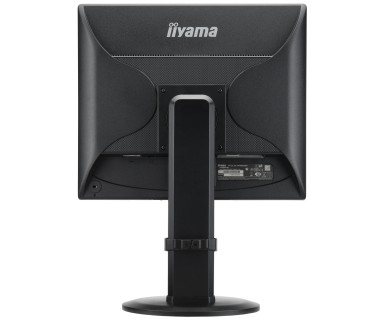

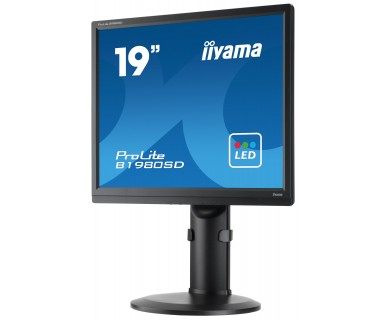

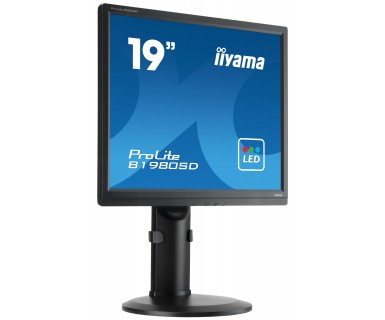

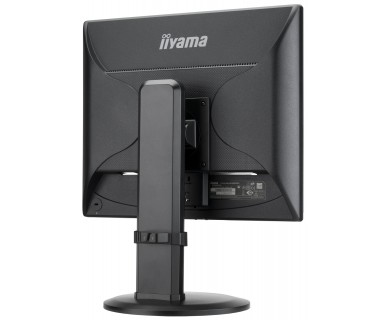

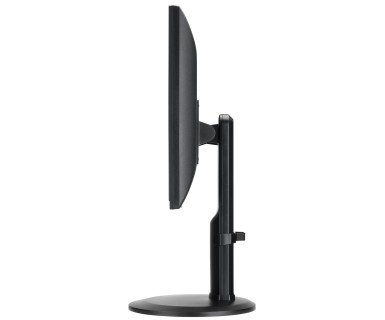

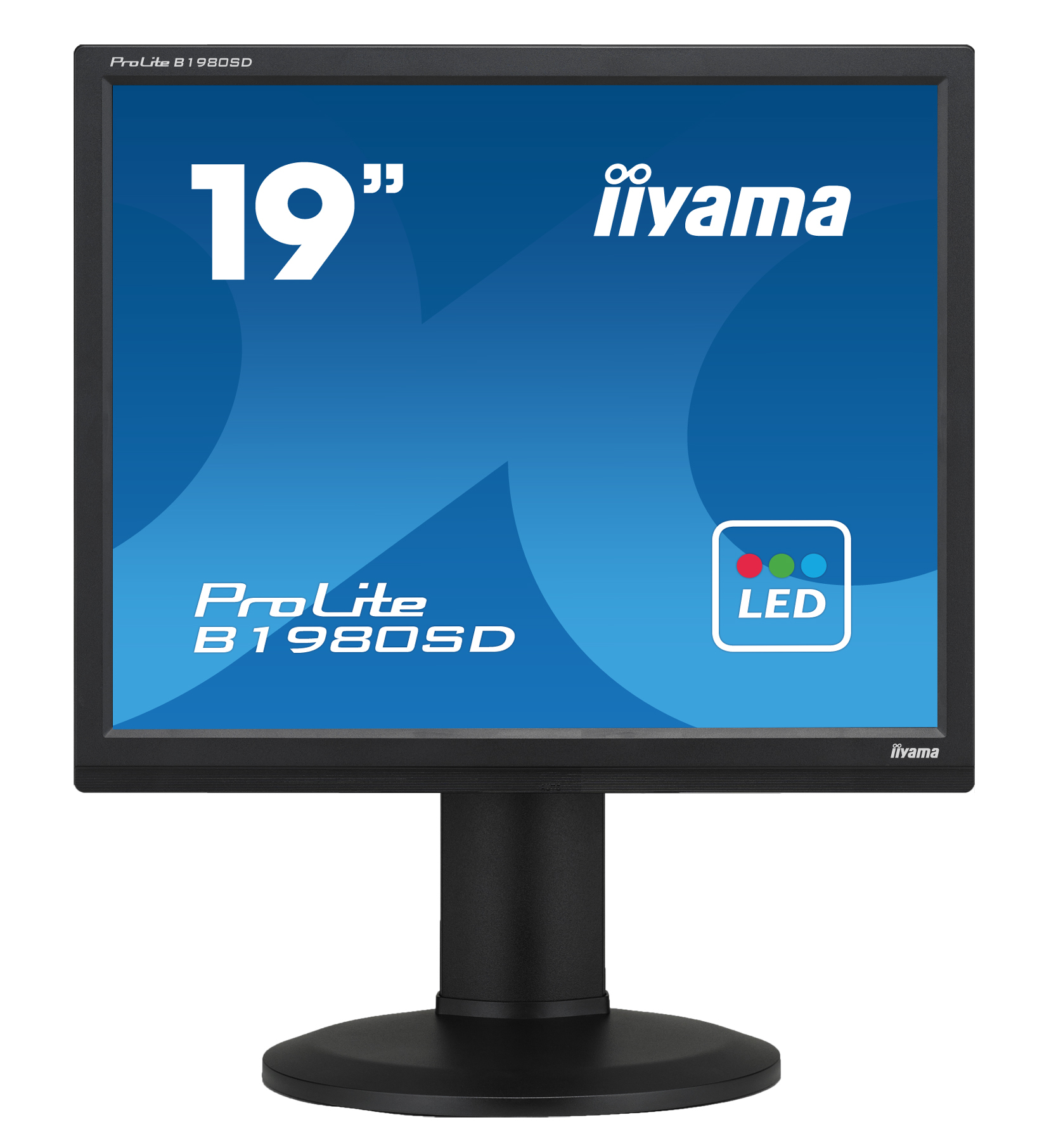

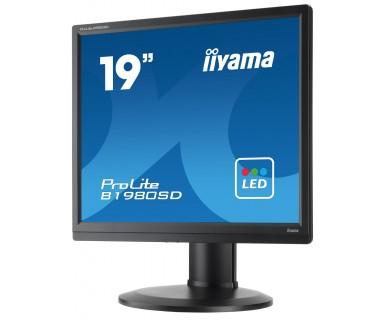

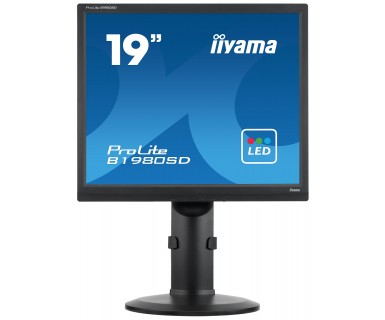

ProLite B1980SD computer monitor

48.3 cm (19") 1280 x 1024 pixels LED Black

Model B1980SDPart no. B1980SD-B1EAN 4043619424696

89 specifications Checked today

Overview

Brand: iiyama
Category: Monitor
Model: B1980SD
Part number: B1980SD-B1
EAN / UPC: 4043619424696, 4948570111688, 5054484237174
Also known as: iiyama ProLite B1980SD computer monitor 48.3 cm (19") 1280 x 1024 pixels LED Black

89 specifications in 15 groups

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
Panel type	TN
Display brightness (typical)	250 cd/m²
Response time	5 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Aspect ratio	5:4
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	12000000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.294 x 0.294 mm
Horizontal scan range	24 - 80 kHz
Vertical scan range	56 - 75 Hz
Viewable size, horizontal	37.6 cm
Viewable size, vertical	30.1 cm
3D	No
Separate H/V sync	Yes

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Specification	Value
Market positioning	Business
Product colour	Black

Specification	Value
Built-in USB hub	No
USB Type-A downstream ports quantity	0

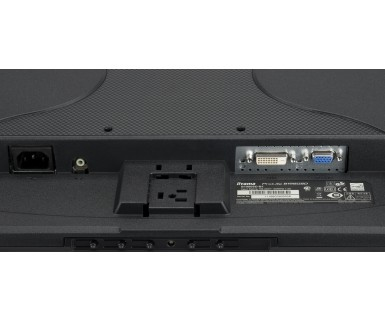

VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI	No
PC Audio in	Yes
HDCP	Yes
Card reader integrated	No

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	13 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-160 - 160°
Tilt adjustment	Yes
Tilt angle range	-5 - 22°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian
Number of OSD languages	9
Plug and Play	Yes

Specification	Value
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	15 kWh
Power consumption (typical)	16 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 85%

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR
