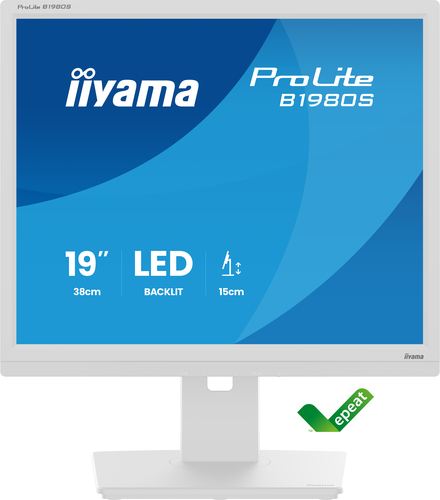

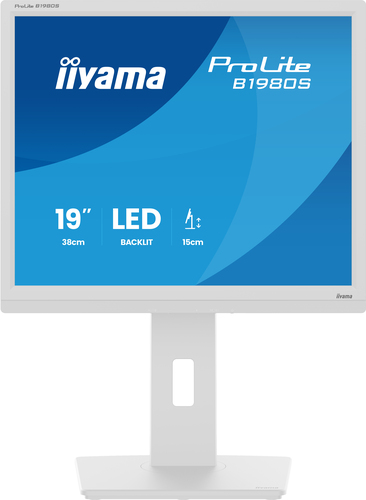

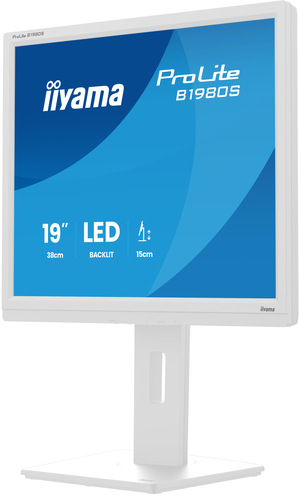

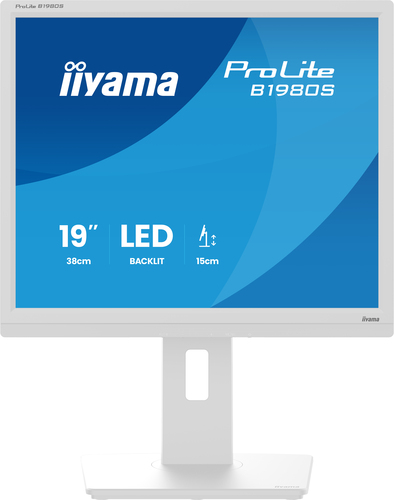

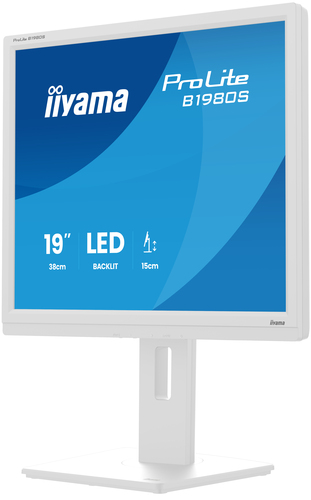

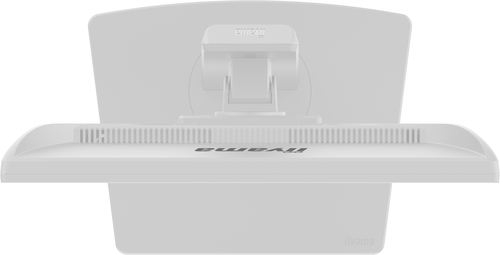

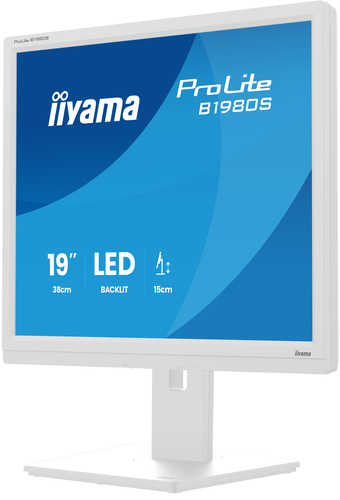

ProLite B1980S-W1 computer monitor

48.3 cm (19") 1280 x 1024 pixels SVGA LED White

Model B1980S-W1EAN 4948570125432

91 specifications Checked today

Display48.3 cm (19")
Resolution1280 x 1024 pixels
Energy classD
Weight4.5 kg
ColourWhite
Built-in speaker(s)Yes

See all specifications

Overview

Display: 48.3 cm (19")
Resolution: 1280 x 1024 pixels
Energy class: D
Weight: 4.5 kg
Colour: White
Built-in speaker(s): Yes

Brand: iiyama
Category: Monitor
Model: B1980S-W1
Part number: B1980S-W1
EAN / UPC: 4948570125432
Also known as: iiyama ProLite B1980S-W1 computer monitor 48.3 cm (19") 1280 x 1024 pixels SVGA LED White

Specifications

91 specifications in 12 groups

Display

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
HD type	SVGA
Panel type	TN
Display brightness (typical)	250 cd/m²
Response time	3 ms
Response time measurement type	GTG (Gray to Gray)
Screen shape	Flat
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	12000000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.7 million colours
Pixel pitch	0.294 x 0.294 mm
Horizontal scan range	30 - 80 kHz
Viewable size, horizontal	37.6 cm
Viewable size, vertical	30.1 cm
Display diagonal (metric)	48 cm
sRGB coverage (typical)	99%
NTSC coverage (typical)	72%

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	White
Illuminated stand	No
Feet colour	White

Ports & interfaces

Specification	Value
Built-in USB hub	No
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort out quantity	1
DisplayPort version	1.2
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable management	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-60 - 60°
Tilt adjustment	Yes
Tilt angle range	-5 - 23°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Number of OSD languages	11

Power

Specification	Value
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	10.9 kWh
Power consumption (typical)	12 W
Power consumption (standby)	0.3 W
Power consumption (max)	0.3 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Weight & dimensions

Specification	Value
Width (with stand)	411 mm
Depth (with stand)	245.5 mm
Height (with stand)	603 mm
Weight (with stand)	4.5 kg
Width (without stand)	411 mm
Depth (without stand)	49 mm
Height (without stand)	453 mm

Packaging data

Specification	Value
Package width	490 mm
Package depth	162 mm
Package height	416 mm
Package weight	5.6 kg
Package type	Box

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, HDMI
Quick start guide	Yes

Sustainability

Specification	Value
Sustainability certificates	ErP

Other features

Specification	Value
Compliance certificates	CE, REACH, RoHS, TÜV mark, UKCA, WEEE
Depth	245.5 mm
Packaging content	quick start guide, safety guide
Weight	4.5 kg
Width	411 mm
Control panel	Power, Menu, + / Volume, -/ Eco, Signal Select (Auto)
User controls	picture adjust (contrast, brightness, i-Style colour, ACR, Eco, OD, X-Res technology), image setup (blue light reducer, sharpness), colour settings (gamma, 6-axis, colour temp.), audio settings (volume, mute), OSD settings (H. position, V. position, OSD time, OSD rotate, language), extra (reset, DDC

Technical details

Specification	Value
Native refresh rate	60 Hz
