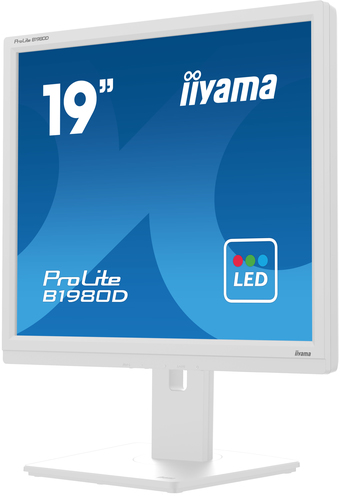

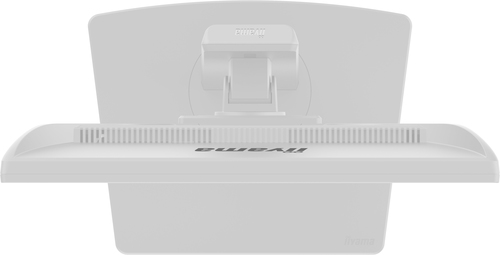

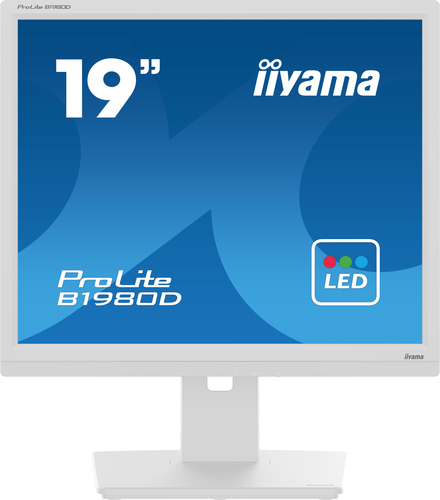

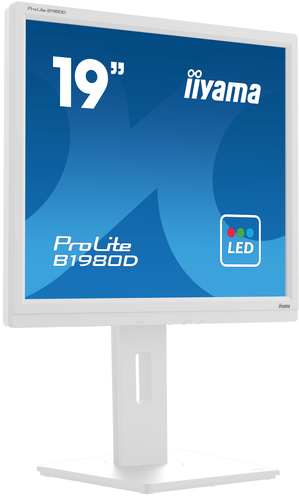

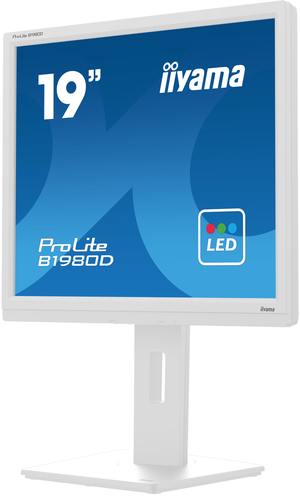

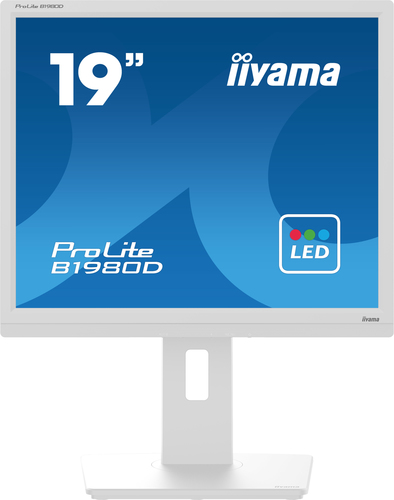

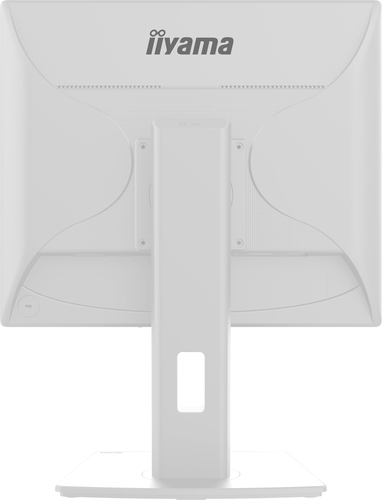

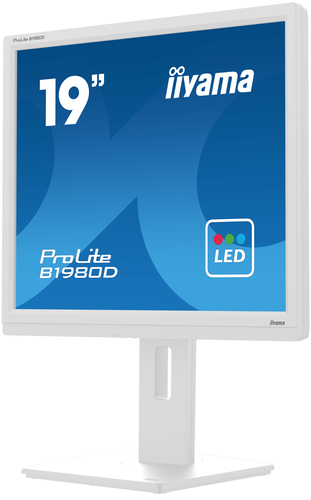

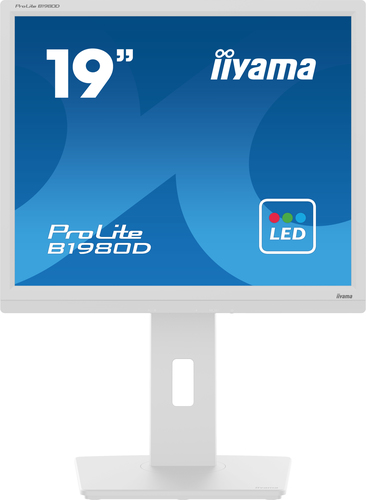

ProLite B1980D-W5 computer monitor
48.3 cm (19") 1280 x 1024 pixels SXGA LCD White
Model B1980D-W5EAN 4948570121373
78 specifications Checked today
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- Energy classE
- Weight4.9 kg
- ColourWhite
- NVIDIA G-SYNCNo
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Energy class
- E
- Weight
- 4.9 kg
- Colour
- White
- NVIDIA G-SYNC
- No
- Brand
- iiyama
- Category
- Monitor
- Model
- B1980D-W5
- Part number
- B1980D-W5
- EAN / UPC
- 4948570121373
- Also known as
- iiyama ProLite B1980D-W5 computer monitor 48.3 cm (19") 1280 x 1024 pixels SXGA LCD White
Specifications
78 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | SXGA |
| Panel type | TN |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 12000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Horizontal scan range | 24 - 80 kHz |
| Viewable size, horizontal | 37.6 cm |
| Viewable size, vertical | 30.1 cm |
| Display diagonal (metric) | 48 cm |
| sRGB coverage (typical) | 99% |
| NTSC coverage (typical) | 72% |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| HDMI | No |
| Headphone out | No |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian |
| Number of OSD languages | 9 |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 411 mm |
| Depth (with stand) | 2109.5 mm |
| Height (with stand) | 547 mm |
| Weight (with stand) | 4.9 kg |
| Height (without stand) | 397 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 490 mm |
| Package depth | 162 mm |
| Package height | 416 mm |
| Package weight | 6 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Depth | 2109.5 mm |
| Packaging content | quick start guide, safety guide |
| Weight | 4.9 kg |
| Width | 411 mm |
| Control panel | Power, Menu, + / Volume, -/ Eco, Auto Adjust / Signal Select |
| User controls | luminance (contrast, brightness, Eco, i-Style colour, ACR), image setup (clock, phase, H. position, V. position), colour temperature (gamma, colour temperature), OSD setup (H. position, V. position, timeout, language), extra (reset, signal select, information), auto adjust |
