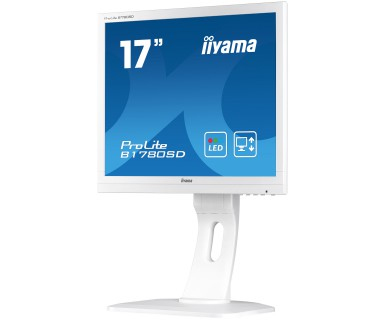

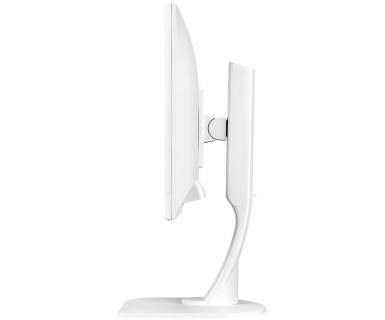

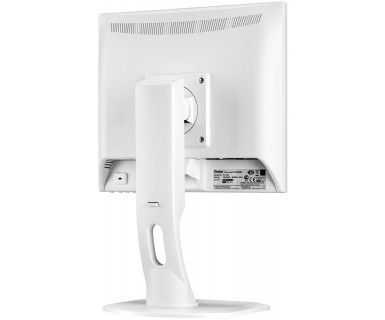

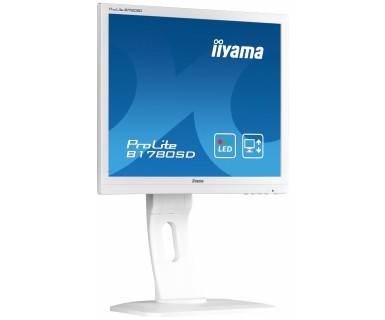

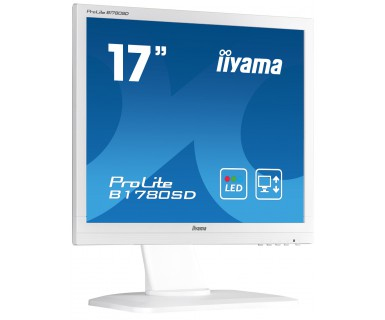

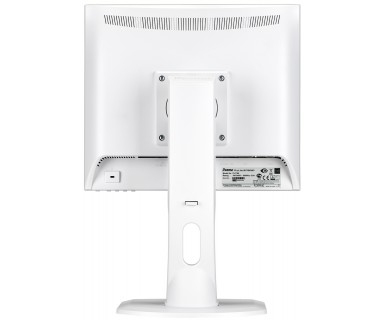

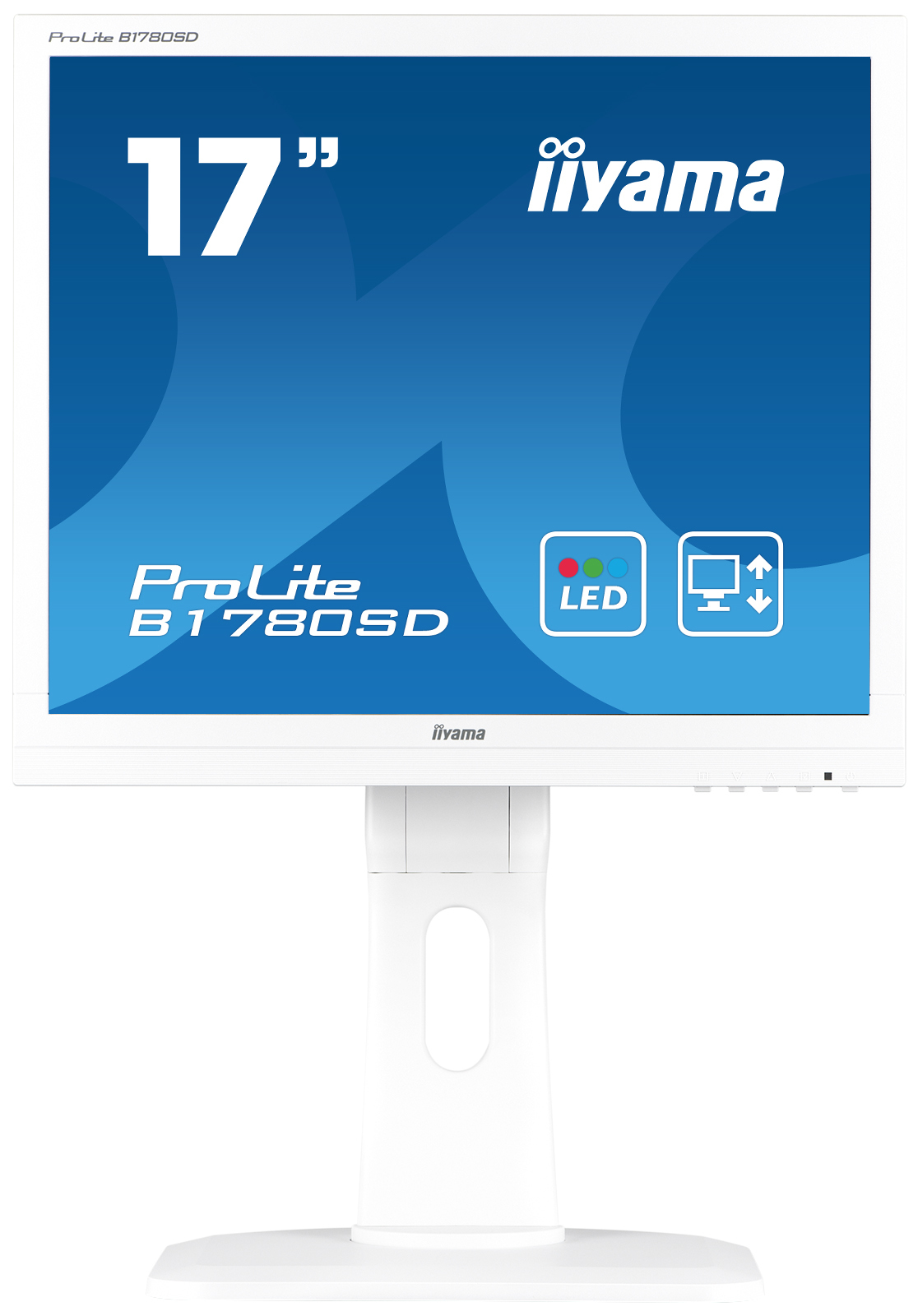

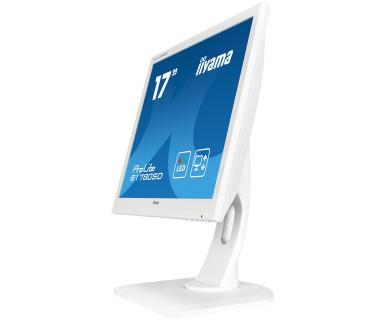

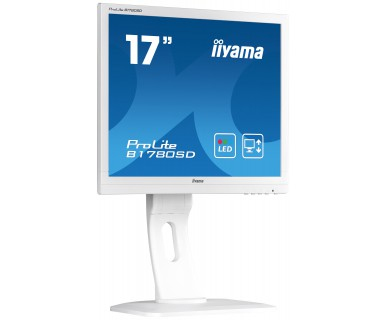

ProLite B1780SD computer monitor

43.2 cm (17") 1280 x 1024 pixels LED White

Model B1780SDPart no. E1780SD-W1EAN 5053959382586

88 specifications Checked today

Overview

Brand: iiyama
Category: Monitor
Model: B1780SD
Part numbers: E1780SD-W1, B1780SD-W1
EAN / UPC: 5053959382586, 4948570113095, 4948570113101, 4948570113019
Also known as: iiyama ProLite B1780SD computer monitor 43.2 cm (17") 1280 x 1024 pixels LED White

88 specifications in 14 groups

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
Panel type	TN
Display brightness (typical)	250 cd/m²
Response time	5 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Aspect ratio	5:4
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	12000000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	24 - 80 kHz
Vertical scan range	55 - 75 Hz
Viewable size, horizontal	33.8 cm
Viewable size, vertical	27 cm
Viewable size diagonal	43.2 cm
3D	No
Separate H/V sync	Yes

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Windows operating systems supported	Windows 2000, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enter
Mac operating systems supported	Yes

Specification	Value
Market positioning	Business
Product colour	White

Specification	Value
Built-in USB hub	No
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
PC Audio in	Yes
HDCP	Yes
AC (power) in	Yes

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	13 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt angle range	-3 - 22°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, German, Dutch, English, French, Japanese, Polish, Russian
Number of OSD languages	9
Plug and Play	Yes

Specification	Value
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	12 kWh
Power consumption (typical)	14 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 85%
