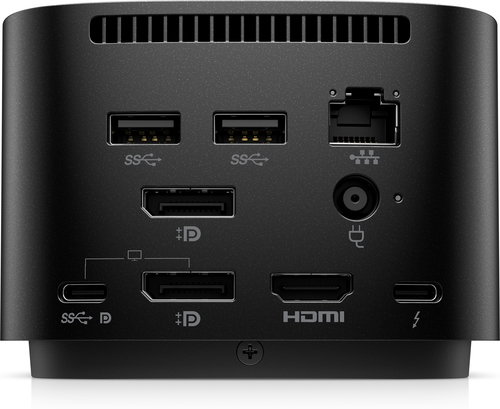

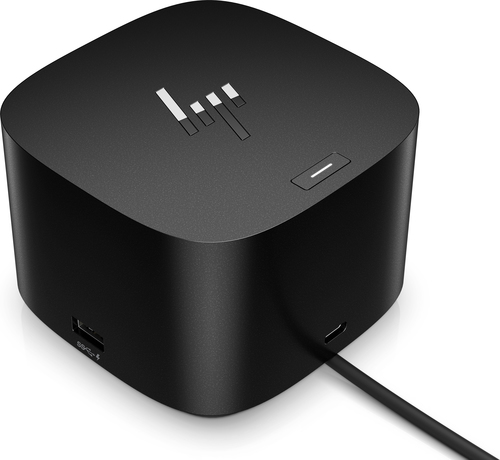

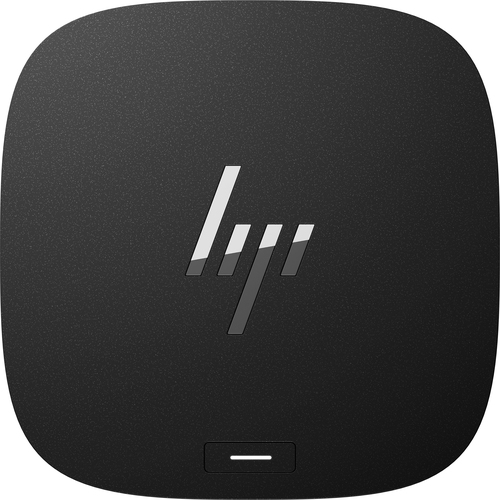

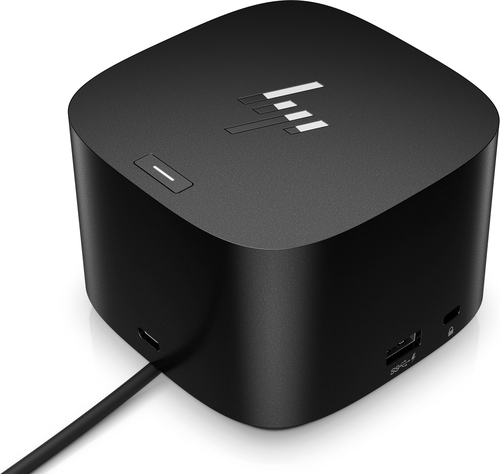

Z24f G3 + Thunderbolt Dock 120W G4
Model Z24f G3 + Thunderbolt Dock 120W G4Part no. 3G828AA + 4J0A2AA
76 specifications Checked today
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- Energy classD
- ColourSilver
- NVIDIA G-SYNCNo
- Market positioningBusiness
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Energy class
- D
- Colour
- Silver
- NVIDIA G-SYNC
- No
- Market positioning
- Business
- Brand
- HP
- Category
- Monitor
- Model
- Z24f G3 + Thunderbolt Dock 120W G4
- Part number
- 3G828AA + 4J0A2AA
- Also known as
- HP Z24f G3 + Thunderbolt Dock 120W G4 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD Silver
Specifications
76 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 10000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.274 x 0.274 mm |
| Horizontal scan range | 30 - 75 kHz |
| Vertical scan range | 50 - 60 Hz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size diagonal | 29.6 cm |
| Display diagonal (metric) | 60.45 cm |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of USB Type-B upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| Audio input | No |
| Headphone out | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Height adjustment | No |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Portuguese |
| Number of OSD languages | 10 |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | D |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| Power consumption (typical) | 26 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 58 W |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 538.4 mm |
| Depth (with stand) | 195 mm |
| Height (with stand) | 489.3 mm |
| Weight (with stand) | 4.7 kg |
| Width (without stand) | 538.4 mm |
| Depth (without stand) | 38.5 mm |
| Height (without stand) | 313.7 mm |
| Weight (without stand) | 3.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.2 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Heavy metals free | Hg (mercury) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
