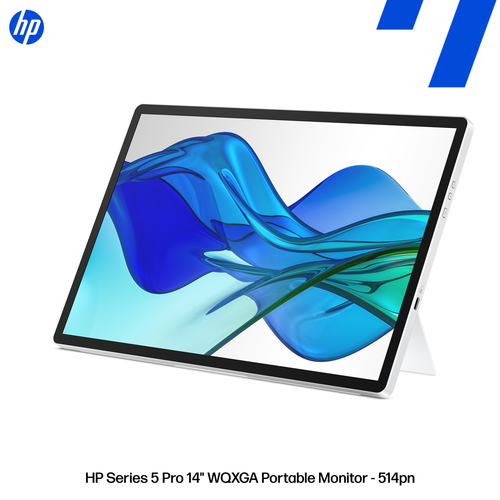

HP Series 5 Pro WQXGA Portable Monitor - 514pn

Model Series 5 Pro WQXGA Portable Monitor - 514pnPart no. B88JWAA#ABBEAN 198990467757

108 specifications Checked 2 days ago

Display35.6 cm (14")
Resolution2560 x 1600 pixels
Energy classB
Weight630 g
ColourSilver
NVIDIA G-SYNCNo

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 2560 x 1600 pixels
Energy class: B
Weight: 630 g
Colour: Silver
NVIDIA G-SYNC: No

Brand: HP
Category: Monitor
Model: Series 5 Pro WQXGA Portable Monitor - 514pn
Part numbers: B88JWAA#ABB, B88JWAA, B88JWAA#ABA
EAN / UPC: 198990467757, 198990467504, 198990467559, 198990467580 +17 more
Also known as: HP Series 5 Pro 14 inch WQXGA Portable Monitor - 514pn

Specifications

108 specifications in 15 groups

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	2560 x 1600 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
HD type	WQXGA
Panel type	IPS Black
LED backlight	Yes
Backlight type	Edge LED
Display brightness (typical)	400 cd/m²
Display brightness	400 cd/m²
Response time	7 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)
Aspect ratio	16:10
Contrast ratio (typical)	2000:1
Contrast ratio (dynamic)	10000000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.1178 x 0.1178 mm
Pixel density	216 ppi
Horizontal scan range	31 - 124 kHz
Vertical scan range	50 - 75 Hz
Viewable size, horizontal	30.1 cm
Viewable size, vertical	18.8 cm
Display diagonal (metric)	35.6 cm
Haze rate	25%
Surface hardness	3H
Colour depth	8 bit
Colour gamut standard	sRGB
Colour gamut	100%
sRGB coverage (typical)	100%
Display bezel technology	Narrow Border

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Fast charging	Yes
Flicker-free technology	Yes
Low Blue Light technology	Yes
HP segment	Business

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	Silver
Colour name	Silver
Feet colour	Silver

Ports & interfaces

Specification	Value
USB Type-C downstream ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
HDMI	No
Headphone out	No
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	No
Cable lock slot	No
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	18.8 - 46.2°
On Screen Display (OSD)	Yes

Power

Specification	Value
Energy efficiency class (SDR)	B
Energy efficiency class (HDR)	B
Energy consumption (SDR) per 1000 hours	5.6 kWh
Power consumption (typical)	7 W
Power consumption (standby)	0.5 W
Power consumption (max)	13 W
Power consumption (off)	0.3 W
Power supply type	External
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Non-operating relative humidity (non-condensing)	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	320.6 mm
Depth (with stand)	8.8 mm
Height (with stand)	208.6 mm
Weight (with stand)	630 g

Packaging data

Specification	Value
Package width	398 mm
Package depth	60 mm
Package height	278 mm
Package weight	1.27 kg
Package type	Box
Warranty card	Yes

Packaging content

Specification	Value
Stand included	Yes
Cables included	USB Type-C to USB Type-C
Quick start guide	Yes
Bundled software	HP Display Center; HP Client Management Script Library

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT, EPEAT Climate +
Sustainable technologies and materials	At least 55% recycled aluminum; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Outside box and corrugated cushions are 100% from certified or recycled sources and recyclable; At least
Sustainability compliance	Yes

Carbon footprint

Specification	Value
Carbon emissions, end-of-life (kg of CO2e)	0.561
Carbon emissions, logistics (kg of CO2e)	0.849
Carbon emissions, manufacturing (kg of CO2e)	66.456
Total carbon emissions, w/o use phase (kg of CO2e)	15.302
Total carbon footprint (kg of CO2e)	83.168

Other features

Specification	Value
Country of origin	China, Vietnam
Compliance certificates	CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI
Low halogen	Yes
Manufacturer warranty	HP three-year limited warranty
Weight	630 g
Certification	BIS; BSMI; CB; CCC; CE; cTUVus; EAC; FCC; ISO 9241-307; KC; KCC; NOM; TUV/GS; VCCI; Vietnam MEPS; WEEE; ISC; ICE; UAE; NRCS
UNSPSC-code	43211902

Technical details

Specification	Value
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true

Energy efficiency

ENERGY STAR certified

Most Efficient

Displays · model 514PN · certified May 27, 2025 · United States, Switzerland, Taiwan, Japan, Canada

Measurement	Value
On-mode power	5.17 W
Sleep-mode power	0.41 W
Off-mode power	0.27 W
