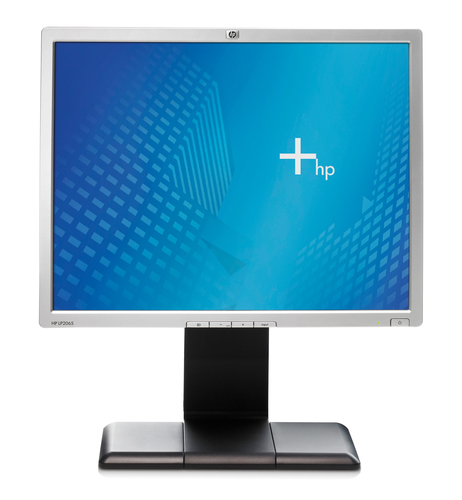

HP LP2065 - 20.1" TFT Display

LP2065 - 20.1" TFT Display

Model LP2065 - 20.1" TFT DisplayPart no. EF227A4EAN 2001188086006

63 specifications Checked today

Display51 cm (20.1")
Resolution1600 x 1200 pixels
Memory160 MB
Market positioningBusiness
USB hub version2.0
Panel mounting interface100 x 100 mm

See all specifications

Overview

Display: 51 cm (20.1")
Resolution: 1600 x 1200 pixels
Memory: 160 MB
Market positioning: Business
USB hub version: 2.0
Panel mounting interface: 100 x 100 mm

Brand: HP
Category: Monitor
Model: LP2065 - 20.1" TFT Display
Part number: EF227A4
EAN / UPC: 2001188086006, 882780065512, 882780065529, 882780065536 +16 more
Also known as: HP LP2065 - 20.1" TFT Display computer monitor 51 cm (20.1") 1600 x 1200 pixels

Specifications

63 specifications in 10 groups

Display

Specification	Value
Display diagonal	51 cm (20.1")
Display resolution	1600 x 1200 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.255
Horizontal scan range	30 - 94 kHz
Vertical scan range	48 - 85 Hz
Digital horizontal frequency	30 - 92 kHz
Digital vertical frequency	30 - 92 Hz
Pixel frequency	202 MHz
Display scanning frequency	Horizontal frequency: 30-94 kHz (VGA), 30-92 kHz (DVI), Vertical frequency: 48-85 Hz (VGA), 30-92 kHz (DVI)

Design

Specification	Value
Market positioning	Business

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	5
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
DVI-I ports quantity	2
Audio input	No
Audio output	No
Microphone in	No
I/O ports	One upstream, four downstream USB 2.0 Hub ports (cable included)

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Adjustable height (max)	13 cm
Pivot	Yes
Swivel angle range	45 - 45°
Tilt angle range	-5 - 25°
Plug and Play	Yes
Display tilt and swivel range	–5° to 25° vertical tilt, ±45° swivel, pivot/landscape rotation, 13 cm height adjust, detachable base

Power

Specification	Value
Power consumption (typical)	75 W
Power consumption (standby)	2 W

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 85%

Weight & dimensions

Specification	Value
Width (with stand)	443 mm
Depth (with stand)	220 mm
Height (with stand)	425 mm
Weight (with stand)	9.2 kg
Width (without stand)	443 mm
Depth (without stand)	87 mm
Height (without stand)	345 mm
Weight (without stand)	5.75 kg
Bezel width (side)	1.3 cm

Packaging data

Specification	Value
Package weight	85 kg

Other features

Specification	Value
Country of origin	China
Audio system	No audio included at platform level
Power requirements	Auto-ranging, 90 to 132 VAC and 195 to 265 VAC, Internal power supply, 50 to 60 Hz (built-in power supply)
Security features	Kensington Lock-ready
Certification	TCO'03, TUV-Ergo, UL, VCCI, CE, ISO 13406-2
Dimensions (W x D x H) (imperial)	442 x 220.2 x 553.7 mm (17.4 x 8.67 x 21.8")
Display resolution at frequency	Preset VESA Graphic Modes (non-interlaced): 1600 x 1200 @ 60 Hz-75 Hz (analog input), 1280 x 1024 @ 60 Hz-75 Hz-85 Hz, 1280 x 960 @ 60 Hz, 1152 x 900 @ 66 Hz, 1024 x 768 @ 60 Hz-75 Hz-85 Hz, 800 x 600 @ 60 Hz-85 Hz, 640 x 480 @ 60 Hz-75 Hz-85 Hz; Text Mode: 720 x 400 @ 70 Hz; MAC Mode: 1152 x 870 @
Display video input type connector	Two connectors, dual DVI-I (VGA analog and digital)
User controls	Input select, auto adjust/OSD up, OSD down, OSD menu select, power Brightness, contrast, positioning, color temperature, individual color control, serial number display, full screen resolutions, clock, clock phase, video picture-in-picture (size and position), input selection (includes separate dire
Weight (imperial)	Unpacked 20.28 lb
Supplied AC adapter type	LCD, No audio included at platform level

Thin Client

Specification	Value
Processor frequency	0.533 GHz
Internal memory	160 MB
