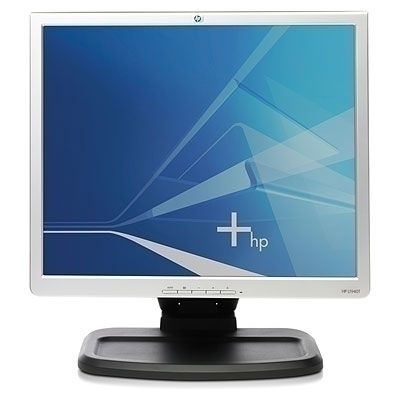

HP L1940T Flat Panel Monitor

Model L1940T Flat Panel MonitorPart no. EM869AT#ABB--KLLEAN 882780253155

49 specifications Checked 4 days ago

Overview

Brand: HP
Category: Monitor
Model: L1940T Flat Panel Monitor
Part numbers: EM869AT#ABB--KLL, EM869AT, RB560EC, EM869AT#ABY-D70, EM869AT#ABY-DEMO2, EM869AT#ABY-DEMO3
EAN / UPC: 882780253155, 882780253100, 882780253117, 882780253124 +2 more
Also known as: HP L1940T Flat Panel Monitor computer monitor 48.3 cm (19") 1280 x 1024 pixels

49 specifications in 9 groups

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Contrast ratio (typical)	700:1
Viewing angle, horizontal	140°
Viewing angle, vertical	135°
Pixel pitch	0.294 x 0.294 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
Pixel frequency	140 MHz
Display scanning frequency	Horizontal Frequency: 30-83 kHz, Vertical Frequency: 56-76 Hz
Surface treatment	Active Matrix TFT (thin film transistor)

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
I/O ports	USB 2.0 Hub: Self-powered, one upstream, two downstream ports (cable included)

Specification	Value
Panel mounting interface	100 x 100 mm
Plug and Play	Yes
Display tilt and swivel range	Tilt range: -5° to + 35° vertical tilt, 170° horizontal swivel, pivot rotation: 90° into portrait orientation, base: attached

Specification	Value
Power consumption (typical)	60 W
Power consumption (standby)	2 W

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 90%
Relative humidity	20 - 80%
Non-operating relative humidity (non-condensing)	5 - 90%

Specification	Value
Country of origin	China
Audio system	No audio included at platform level
TV tuner integrated	No
Power requirements	90 - 265 VAC
Security features	Kensington Lock-ready
Certification	Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS Mark), ISO 13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM Approval, MPR-II Compliant,
Display resolution at frequency	Max Resolution (analog and digital): 1280 x 1024 @ 75 Hz; Preset VESA Modes (non-interlaced): 640 x 480 @ 60 Hz, 72 Hz, 75 Hz - 720 x 400 @ 70 Hz - 800 x 600 @ 60 Hz, 72 Hz, 75 Hz - 1024 x 768 @ 60 Hz, 70 Hz, 75 Hz - 1280 x 1024 @ 60 Hz, 75 Hz; Preset MAC Mode: 832 x 624 @ 75 Hz - 1152 x 870 @75 Hz;
Display video input type connector	Two connectors: one 15-pin mini D-sub analog VGA and one DVI-D (VGA analog or digital)
User controls	4-button OSD (auto-adjust, menu, minus, plus); power on/off; second-level OSD buttons include dual-input switch Size and positioning, contrast, brightness, clock, clock phase, selectable color temperature, serial number, mode displayed, sleep timer, input selection, factory reset, individual color c
Supplied AC adapter type	AC

Specification	Value
Processor frequency	1.8 GHz
