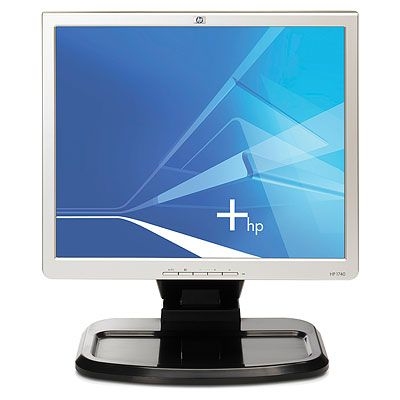

HP L1740 computer monitor

43.2 cm (17") 1280 x 1024 pixels LCD Black, Silver

Model L1740Part no. PL766AA#ABBEAN 5704327438755

79 specifications Checked 3 days ago

Overview

Brand: HP
Category: Monitor
Model: L1740
Part numbers: PL766AA#ABB, PL766AT, PL766AA, 396638-001
EAN / UPC: 5704327438755, 829160568744, 829160568751, 829160568768 +23 more
Also known as: HP L1740 computer monitor 43.2 cm (17") 1280 x 1024 pixels LCD Black, Silver

79 specifications in 12 groups

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Native aspect ratio	4:3
Display technology	LCD
Touchscreen	No
Panel type	TFT
Display brightness (typical)	300 cd/m²
Response time	13 ms
Display surface	Matt
Supported graphics resolutions	1280 x 1024 (SXGA)
Aspect ratio	4:3
Contrast ratio (typical)	500:1
Viewing angle, horizontal	150°
Viewing angle, vertical	135°
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
3D	No
Pixel frequency	140 MHz
Display scanning frequency	Horizontal frequency: 30-83 kHz, Vertical frequency: 56-76 Hz
Surface treatment	Active Matrix TFT (thin film transistor)

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Market positioning	Business
Product colour	Black, Silver

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
Audio input	No
Audio output	No
AC (power) in	Yes
I/O ports	USB 2.0 Hub: Self-powered, one upstream, two downstream ports (cable included) 15-pin D-sub mini connector, detached

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-170 - 170°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
Plug and Play	Yes
LED indicators	Yes
Display tilt and swivel range	Tilt range: -5° to + 35° vertical tilt, swivel range: -45° to +45°, pivot rotation: 90° into portrait orientation, Height Adjustable base: attached

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Non-operating relative humidity (non-condensing)	5 - 90%

Specification	Value
Cables included	AC

Specification	Value
Country of origin	China
On/off switch	Yes
TV tuner integrated	No
Power requirements	Auto-ranging, 90 to 265 VAC, Internal power supply (built-in power supply)
Security features	Kensington Lock-ready
Display resolution at frequency	Max Resolution (analog and digital): 1280 x 1024 @ 75 Hz; Preset VESA Modes (non-interlaced): 640 x 480 @ 60 Hz, 72 Hz, 75 Hz - 720 x 400 @ 70 Hz - 800 x 600 @ 60 Hz, 72 Hz, 75 Hz - 1024 x 768 @ 60 Hz, 70 Hz, 75 Hz - 1280 x 1024 @ 60 Hz, 75 Hz; Preset MAC Mode: 832 x 624 @ 75 Hz - 1152 x 870 @75 Hz;
Display video input type connector	Two connectors: one 15-pin mini D-sub analog VGA and one DVI-D (VGA analog or digital)
User controls	4-button OSD (auto-adjust, menu, minus, plus); power on/off; second-level OSD buttons include dual-input switch Size and positioning, contrast, brightness, clock, clock phase, selectable color temperature, serial number, mode displayed, sleep timer, input
Supplied AC adapter type	No audio at platform level

Specification	Value
Thin client installed	No
