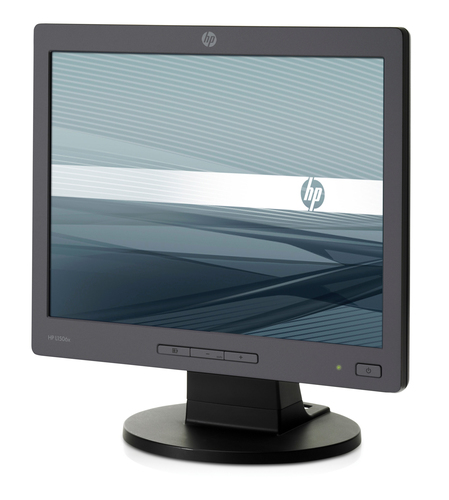

HP L1506x 15-inch Non-Touch Monitor

Model L1506xPart no. LL543AA#ABBEAN 886112320577

83 specifications Checked 4 days ago

Overview

83 specifications in 13 groups

Specification	Value
Display diagonal	38.1 cm (15")
Display resolution	1024 x 768 pixels
Native aspect ratio	4:3
Touchscreen	No
Display brightness (typical)	400 cd/m²
Response time	8 ms
Display surface	Gloss
Supported graphics resolutions	720 x 400, 832 x 624, 1024 x 768 (XGA), 640 x 480 (VGA)
Aspect ratio	4:3
Contrast ratio (typical)	700:1
Contrast ratio (dynamic)	1000000:1
Viewing angle, horizontal	160°
Viewing angle, vertical	140°
Pixel pitch	0.297 x 0.297 mm
Horizontal scan range	30 - 63 kHz
Vertical scan range	50 - 76 Hz
3D	No

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Product colour	Black

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
HDMI	No
HDMI ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
Audio input	No
Audio output	No
Headphone outputs	0
Microphone in	No
PC Audio in	No
HDCP	No
AC (power) in	Yes
Composite video in	0
Composite video out	0
SCART ports quantity	0
RF ports quantity	0
PC Audio out	No
Digital audio optical out	0
BNC input ports	0
Component video (YPbPr/YCbCr) in	0
Firewire (IEEE 1394) ports	0
RS-232 ports	0
RS-485 ports	0
S-Video inputs quantity	0
Thunderbolt ports quantity	0
Card reader integrated	No
Compatible memory cards	Not supported

Specification	Value
Bluetooth	No
Ethernet LAN	No

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Tilt angle range	-5 - 30°
Picture-in-Picture	No
Plug and Play	Yes
Electronic Programme Guide (EPG)	No

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	32 - 122 °F

Specification	Value
Cables included	VGA
Remote control included	No

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
Country of origin	China
Screen format adjustments	4:3
TV tuner integrated	No
Volume control	Digital
Ethernet LAN (RJ-45) ports	0
Certification	CB, CISPR, VCCI, ETL, TUV, GS Mark, BSMI, CCC, KCC/KC, NOM, CE, FCC, UL, GOST, SASO, EPEAT Silver, EPEAT Gold, RoHS, WEEE
Supplied AC adapter type	LED

Specification	Value
Thin client installed	No
