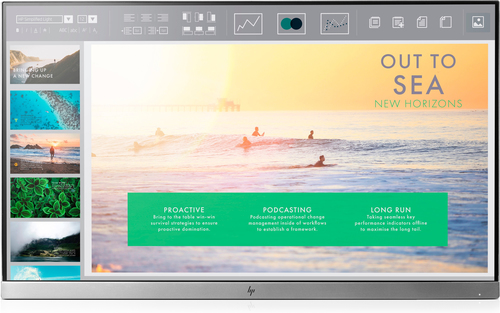

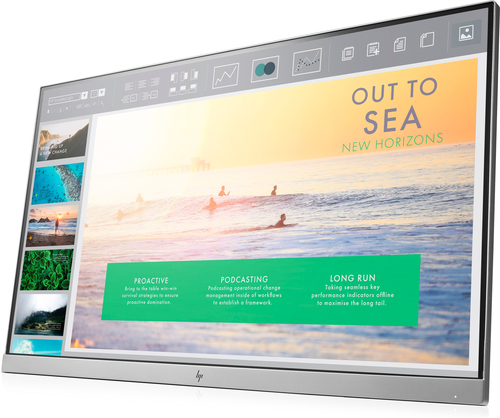

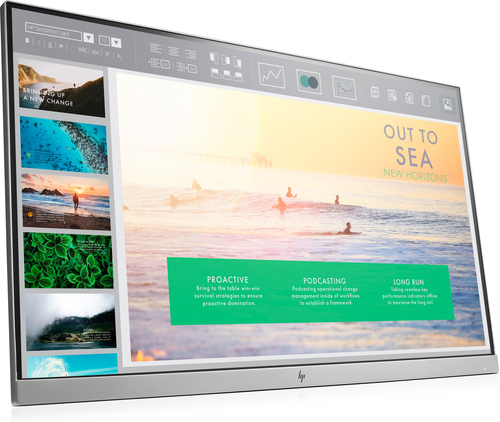

E233 HO + Quick Release Bracket 2

Model E233 HO + Quick Release Bracket 2Part no. 2PD30AA?6KD15AA

66 specifications Checked today

Display58.4 cm (23")
Resolution1920 x 1080 pixels
Energy classA+
ColourBlack, Silver
NVIDIA G-SYNCNo
Market positioningBusiness

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Energy class: A+
Colour: Black, Silver
NVIDIA G-SYNC: No
Market positioning: Business

Brand: HP
Category: Monitor
Model: E233 HO + Quick Release Bracket 2
Part number: 2PD30AA?6KD15AA
Also known as: HP EliteDisplay E233 HO + Quick Release Bracket 2 computer monitor 58.4 cm (23") 1920 x 1080 pixels Full HD LED Black, Silver

Specifications

66 specifications in 13 groups

Display

Specification	Value
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	IPS
Display brightness (typical)	250 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+)
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	5000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.265 x 0.265 mm
Horizontal scan range	30 - 80 kHz
Vertical scan range	50 - 60 Hz
Viewable size, horizontal	50.9 cm
Viewable size, vertical	28.6 cm
3D	No

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	Black, Silver

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports	1
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	1
DVI port	No
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Height adjustment	No
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Portuguese
Number of OSD languages	10
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	19 W
Power consumption (standby)	0.5 W
Power consumption (max)	36 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	25 kWh

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width (without stand)	521 mm
Depth (without stand)	44.7 mm
Height (without stand)	311.7 mm
Weight (without stand)	3.29 kg

Packaging content

Specification	Value
Stand included	No

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Other features

Specification	Value
Country of origin	China
On/off switch	Yes
TV tuner integrated	No
Energy efficiency class (legacy scale)	A+
Supplied AC adapter type	LED

Thin Client

Specification	Value
Thin client installed	No
