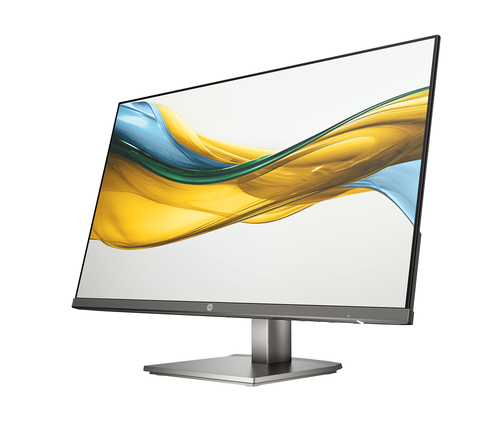

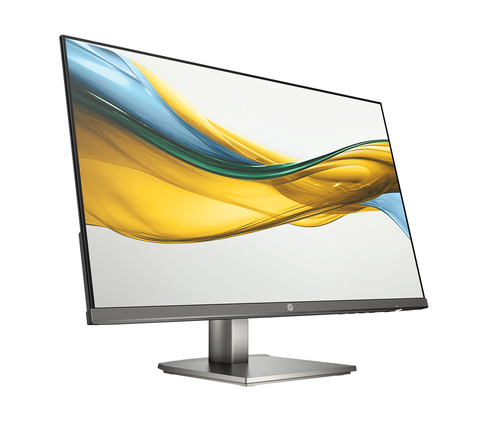

Series 5 23.8 inch FHD Monitor - 524da

Model 524daPart no. B11W5AT#ABBEAN 198828212320

114 specifications Checked today

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
Energy classE
Weight3.52 kg
ColourBlack
NVIDIA G-SYNCNo

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Energy class: E
Weight: 3.52 kg
Colour: Black
NVIDIA G-SYNC: No

Brand: HP
Category: Monitor
Model: 524da
Part number: B11W5AT#ABB
EAN / UPC: 198828212320
Also known as: HP Series 5 23.8 inch FHD Monitor - 524da

Specifications

114 specifications in 14 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Backlight type	Edge LED
Display brightness (typical)	300 cd/m²
Display brightness	300 cd/m²
Response time	5 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)
Aspect ratio	16:9
Contrast ratio (typical)	1500:1
Contrast ratio (dynamic)	8000000:1
Maximum refresh rate	100 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.2745 x 0.2745 mm
Pixel density	93 ppi
Horizontal scan range	30 - 113 kHz
Vertical scan range	48 - 100 Hz
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Display diagonal (metric)	60.5 cm
Haze rate	25%
Surface hardness	3H
Colour depth	8 bit
Colour gamut standard	sRGB
Colour gamut	99%
sRGB coverage (typical)	99%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes
HP segment	Business

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	Black
Colour name	Black
Detachable stand	Yes
Feet colour	Grey

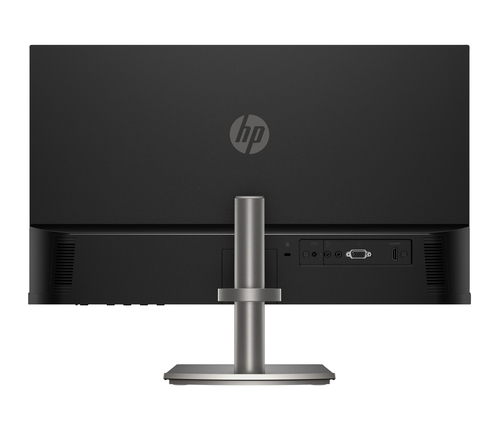

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
Audio input	Yes
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	No
Cable lock slot	Yes
Height adjustment	Yes
Adjustable height (max)	10 cm
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	E
Energy consumption (SDR) per 1000 hours	15 kWh
Power consumption (typical)	21 W
Power consumption (standby)	0.5 W
Power consumption (max)	25 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	External
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	20 - 80%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Non-operating relative humidity (non-condensing)	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	535.8 mm
Depth (with stand)	202.2 mm
Height (with stand)	459.8 mm
Weight (with stand)	3.52 kg
Width (without stand)	535.8 mm
Depth (without stand)	34 mm
Height (without stand)	315.6 mm
Weight (without stand)	2.22 kg

Packaging data

Specification	Value
Package width	610 mm
Package depth	121 mm
Package height	399 mm
Package weight	5.93 kg
Package type	Box

Packaging content

Specification	Value
Cables included	HDMI, AC
Power adapter included	Yes
Manual	Yes
Bundled software	HP Display Center; HP Client Management Script Library

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT, TCO, EPEAT Climate +, TCO10
Sustainable technologies and materials	At least 90% post-consumer recycled plastic including 5% ocean bound plastic; At least 10% recycled metal; Low halogen; Outside box and corrugated cushions are made of 100% recycled or certified sources
Sustainability compliance	Yes

Other features

Specification	Value
Country of origin	China
Compliance certificates	CECP, CCC, CB, EAC, RoHS, BIS, Federal Communications Commission (FCC), CE, BSMI
Low halogen	Yes
Manufacturer warranty	HP three-year limited warranty
Packaging content	Monitor; HDMI cable; Power adapter; AC power cord; Document kit
Weight	3.52 kg
Certification	Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL; CEL Grade 1; cTUVus; EAC; ErP; FCC; ICES; ISO 9241-307; KC; KCC; NOM; SEPA; TUV Bauart; VCCI; Vietnam MEPS; Ukraine Energy label; California Energy Commission (CEC); UAE; TGM; NRCS of South Africa; UAE ECAS; TÜV Low Blue Light Hardware
UNSPSC-code	43211902
Supplied AC adapter type	198828212344

Technical details

Specification	Value
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
