S55U 55" UHD Gaming Monitor - 3840 x 2160, 120Hz, 2ms, 500 cd/m², FreeSync Premium, HDR Ready, HDMI 2.1
Model S55UPart no. S55U EKEAN 4719331826390
89 specifications Checked today
- Display138.7 cm (54.6")
- Resolution3840 x 2160 pixels
- Energy classG
- ColourBlack
- NVIDIA G-SYNCNo
- Market positioningGaming
Overview
- Display
- 138.7 cm (54.6")
- Resolution
- 3840 x 2160 pixels
- Energy class
- G
- Colour
- Black
- NVIDIA G-SYNC
- No
- Market positioning
- Gaming
- Brand
- GIGABYTE
- Category
- Monitor
- Model
- S55U
- Part number
- S55U EK
- EAN / UPC
- 4719331826390
- Also known as
- GIGABYTE S55U 55" UHD Gaming Monitor - 3840 x 2160, 120Hz, 2ms, 500 cd/m², FreeSync Premium, HDR Ready, HDMI 2.1
Specifications
89 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 138.7 cm (54.6") |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Panel type | VA |
| Backlight type | Direct LED |
| Display brightness (peak) | 1500 cd/m² |
| Display brightness (typical) | 500 cd/m² |
| Response time | 2 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Supported graphics resolutions | 3840 x 2160 |
| Contrast ratio (typical) | 5000:1 |
| Maximum refresh rate | 120 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.315 x 0.315 mm |
| Viewable size, horizontal | 121 cm |
| Viewable size, vertical | 68 cm |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Dolby Vision |
| Colour gamut standard | DCI-P3 |
| Colour gamut | 96% |
| sRGB coverage (typical) | 140% |
| DCI-P3 coverage | 96% |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium |
| Flicker-free technology | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Gaming |
| Product colour | Black |
| Feet colour | Black |

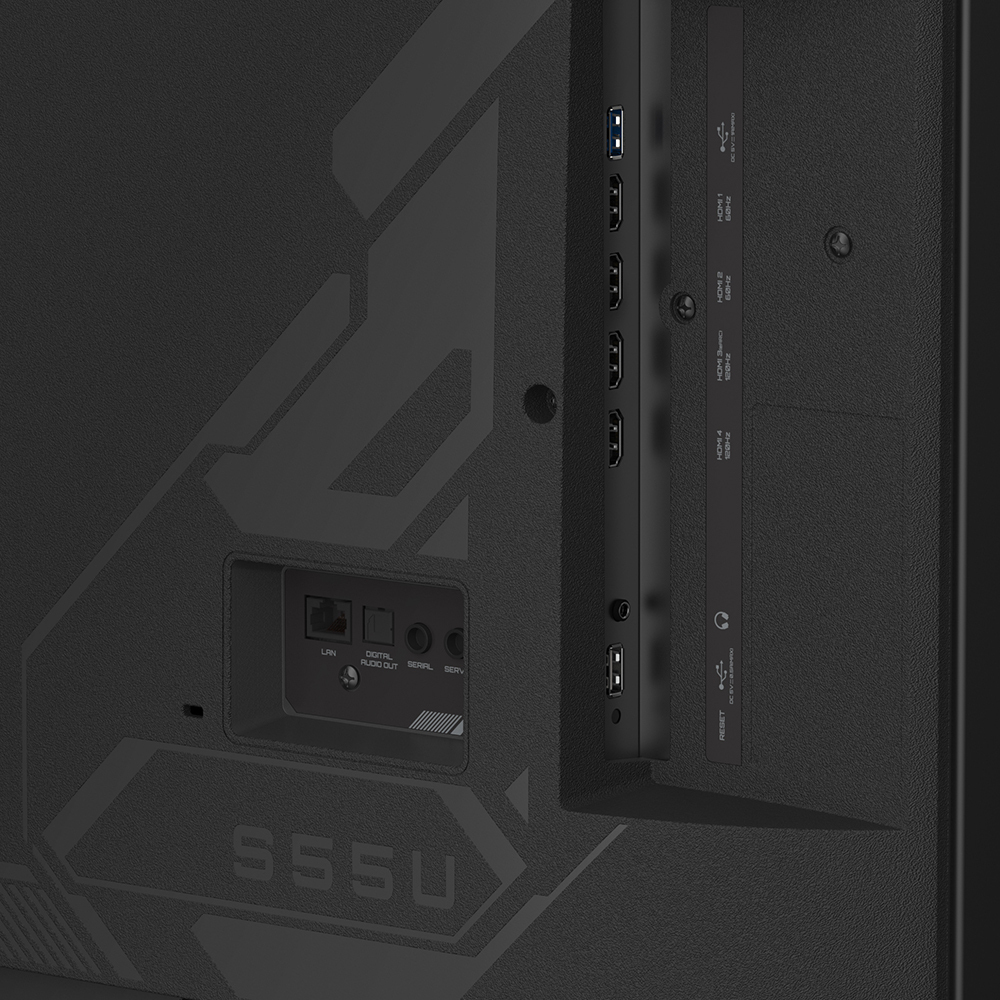

Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 4 |
| HDMI version | 2.1 |
| Headphone out | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 400 x 300 mm |
| Cable lock slot | No |
| Height adjustment | No |
| Pivot | No |
| Swivelling | No |
| Tilt adjustment | No |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 84 kWh |
| Energy consumption (HDR) per 1000 hours | 230 kWh |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 70% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1232 mm |
| Depth (with stand) | 309 mm |
| Height (with stand) | 749 mm |
| Weight (with stand) | 18.1 kg |
| Width (without stand) | 1232 mm |
| Depth (without stand) | 98 mm |
| Height (without stand) | 717 mm |
| Weight (without stand) | 16.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1366 mm |
| Package depth | 855 mm |
| Package height | 169 mm |
| Package weight | 25.3 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | HDMI, Power |
Other features
| Specification | Value |
|---|---|
| Brand specific technologies | Black Equalizer, Crosshair |
| HBR3 support | No |
| Warranty period | 3 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
