M32U Arm Edition

Model M32U Arm EditionPart no. M32UAE EKEAN 4719331836412

82 specifications Checked today

Display80 cm (31.5")
Resolution3840 x 2160 pixels
Energy classG
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 80 cm (31.5")
Resolution: 3840 x 2160 pixels
Energy class: G
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: GIGABYTE
Category: Monitor
Model: M32U Arm Edition
Part number: M32UAE EK
EAN / UPC: 4719331836412
Also known as: GIGABYTE M32U 31.5" 4K UHD Arm Edition Gaming Monitor - 3840 x 2160, 144Hz, 1ms, 350 cd/m², FreeSync Premium Pro, Display HDR400, HDMI 2.1, Displayport 1.4

Specifications

82 specifications in 11 groups

Display

Specification	Value
Display diagonal	80 cm (31.5")
Display resolution	3840 x 2160 pixels
Display technology	LED
Touchscreen	No
HD type	4K Ultra HD
Panel type	SS-IPS
Backlight type	Edge LED
Display brightness (typical)	350 cd/m²
Response time	1 ms
Screen shape	Flat
Contrast ratio (typical)	1000:1
Maximum refresh rate	144 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.181 x 0.181 mm
Viewable size, horizontal	69.7 cm
Viewable size, vertical	39.2 cm
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR 400
Colour depth	10 bit
Colour gamut standard	DCI-P3
Colour gamut	90%
sRGB coverage (typical)	103%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
AMD FreeSync type	FreeSync Premium Pro
Flicker-free technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W

Design

Specification	Value
Market positioning	Gaming
Product colour	Black
Front bezel colour	Black

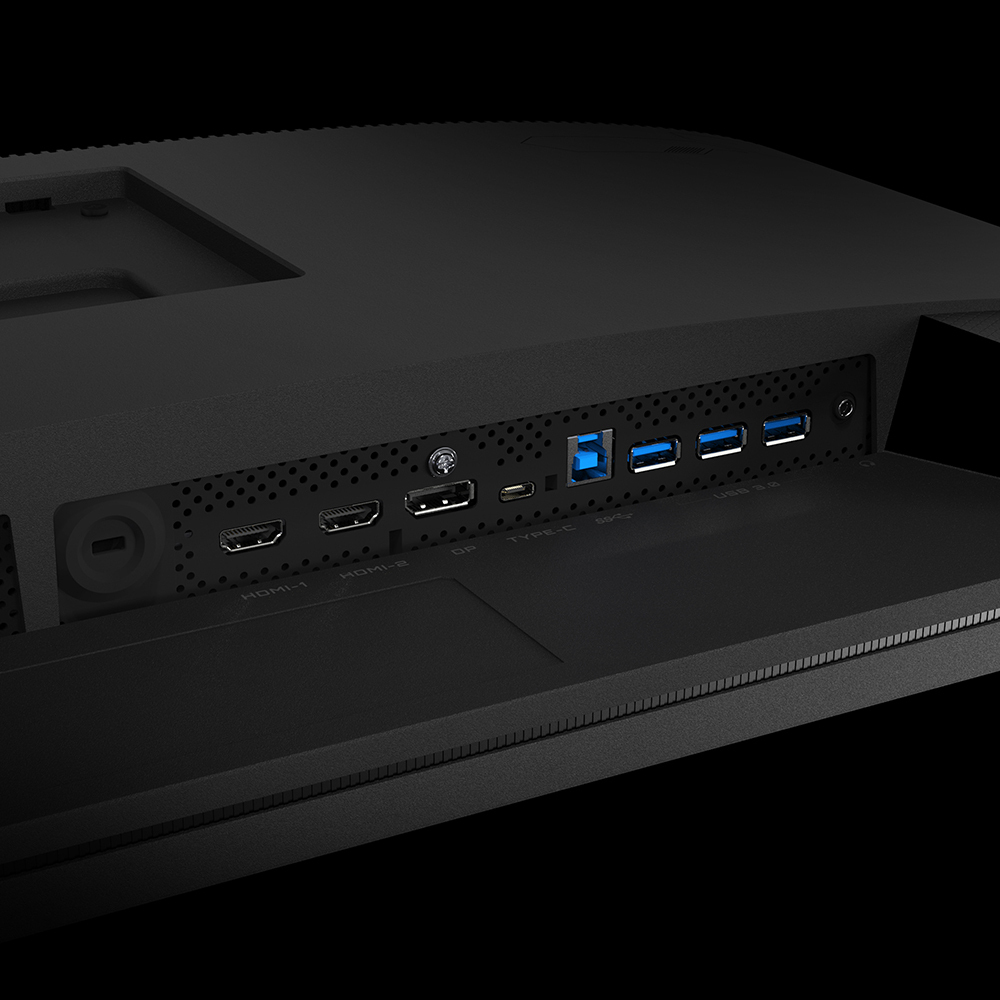

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	3
HDMI	Yes
HDMI ports quantity	2
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone out	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	16.7 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-270 - 270°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes

Power

Specification	Value
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	33 kWh
Energy consumption (HDR) per 1000 hours	80 kWh
Power consumption (typical)	45.5 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Weight & dimensions

Specification	Value
Width (with stand)	715.3 mm
Depth (with stand)	221 mm
Height (with stand)	587.7 mm
Weight (with stand)	10.5 kg
Width (without stand)	715.8 mm
Depth (without stand)	68.2 mm
Height (without stand)	423 mm
Weight (without stand)	7.21 kg

Packaging data

Specification	Value
Package width	990 mm
Package depth	192 mm
Package height	536 mm
Package weight	13.7 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, DisplayPort, HDMI, USB
Quick start guide	Yes

Other features

Specification	Value
HBR3 support	Yes
