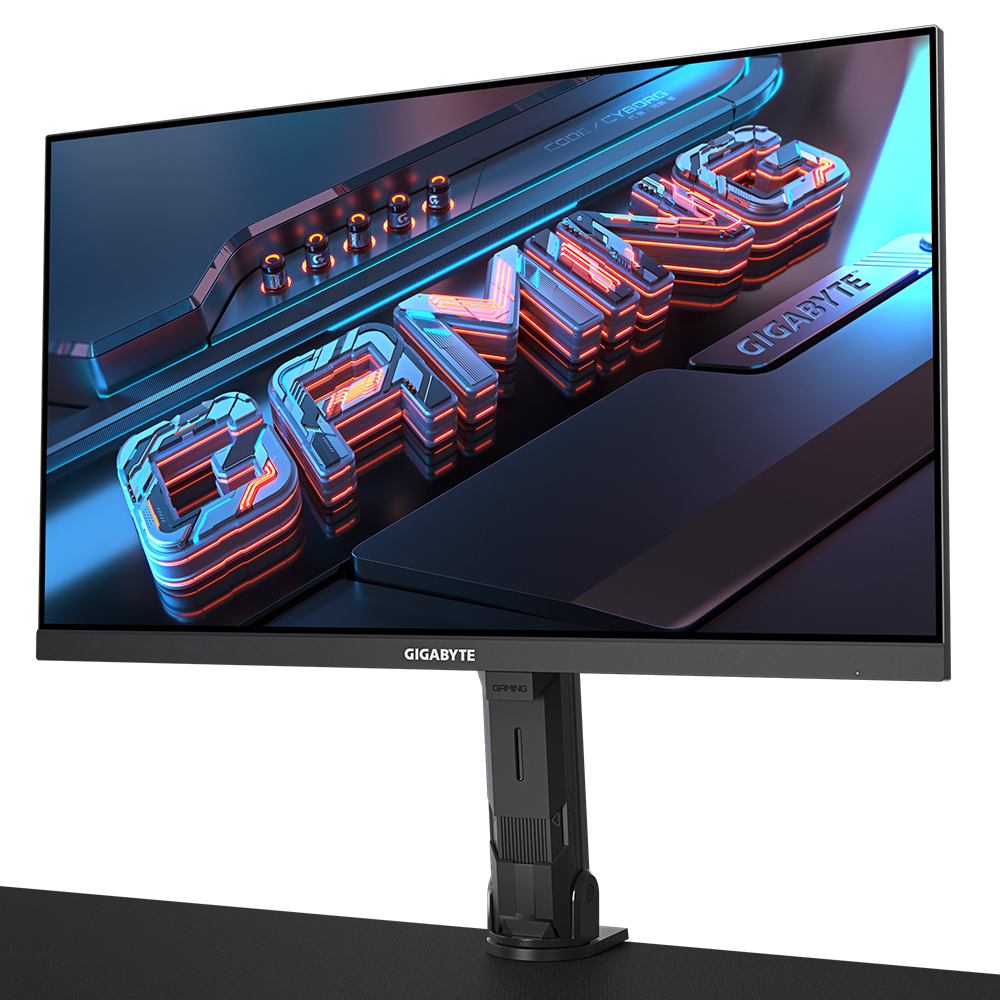

M28U Arm Edition
Model M28U Arm EditionPart no. M28UAE EUEAN 889523032336
77 specifications Checked today
- Display71.1 cm (28")
- Resolution3840 x 2160 pixels
- Energy classF
- ColourBlack
- Flicker-free technologyYes
- Market positioningGaming
Overview
- Display
- 71.1 cm (28")
- Resolution
- 3840 x 2160 pixels
- Energy class
- F
- Colour
- Black
- Flicker-free technology
- Yes
- Market positioning
- Gaming
- Brand
- GIGABYTE
- Category
- Monitor
- Model
- M28U Arm Edition
- Part numbers
- M28UAE EU, M28UAE EK
- EAN / UPC
- 889523032336, 4719331836481
- Also known as
- GIGABYTE M28U Arm Edition computer monitor 71.1 cm (28") 3840 x 2160 pixels 4K Ultra HD LED Black
Specifications
77 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 71.1 cm (28") |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Backlight type | Edge LED |
| Display brightness (typical) | 300 cd/m² |
| Response time | 1 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 144 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.16 x 0.16 mm |
| Viewable size, horizontal | 63.2 cm |
| Viewable size, vertical | 36 cm |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR 400 |
| Colour depth | 8 bit |
| Colour gamut standard | DCI-P3 |
| Colour gamut | 94% |
| sRGB coverage (typical) | 120% |
Performance
| Specification | Value |
|---|---|
| Flicker-free technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 6 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Gaming |
| Product colour | Black |

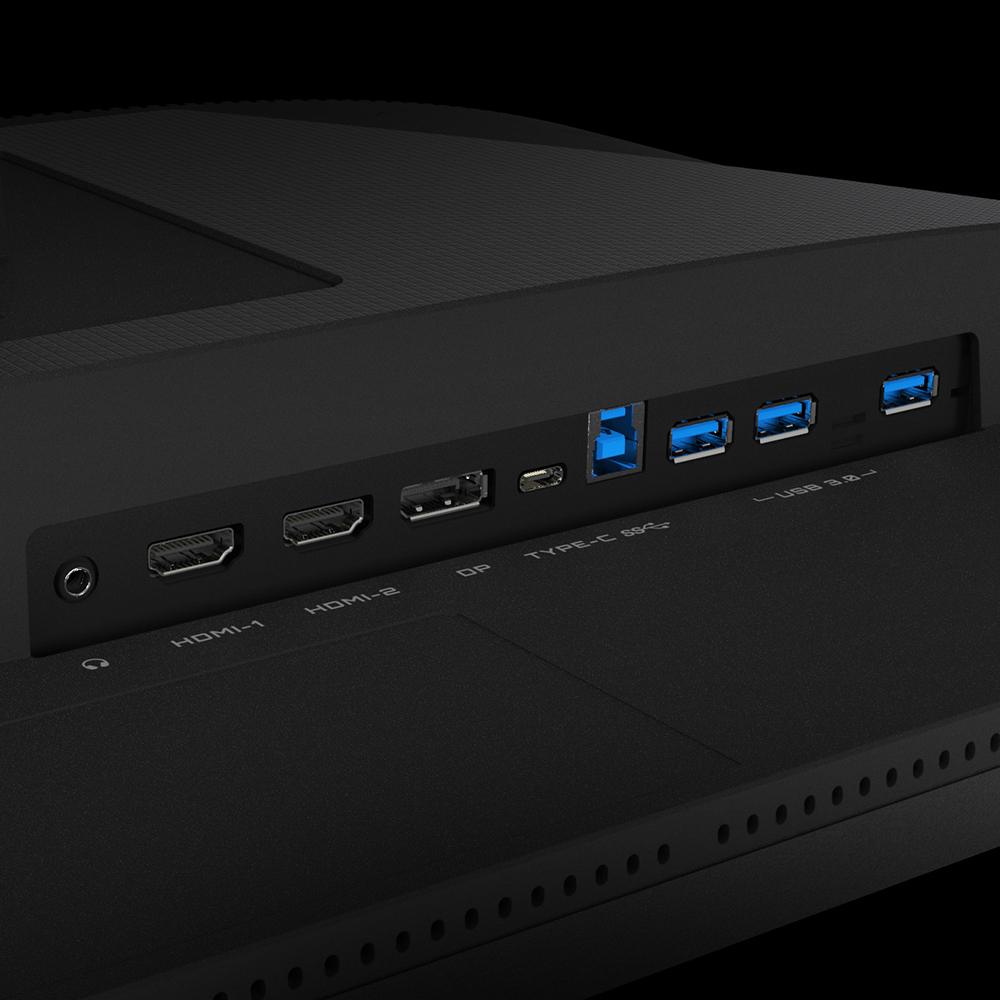

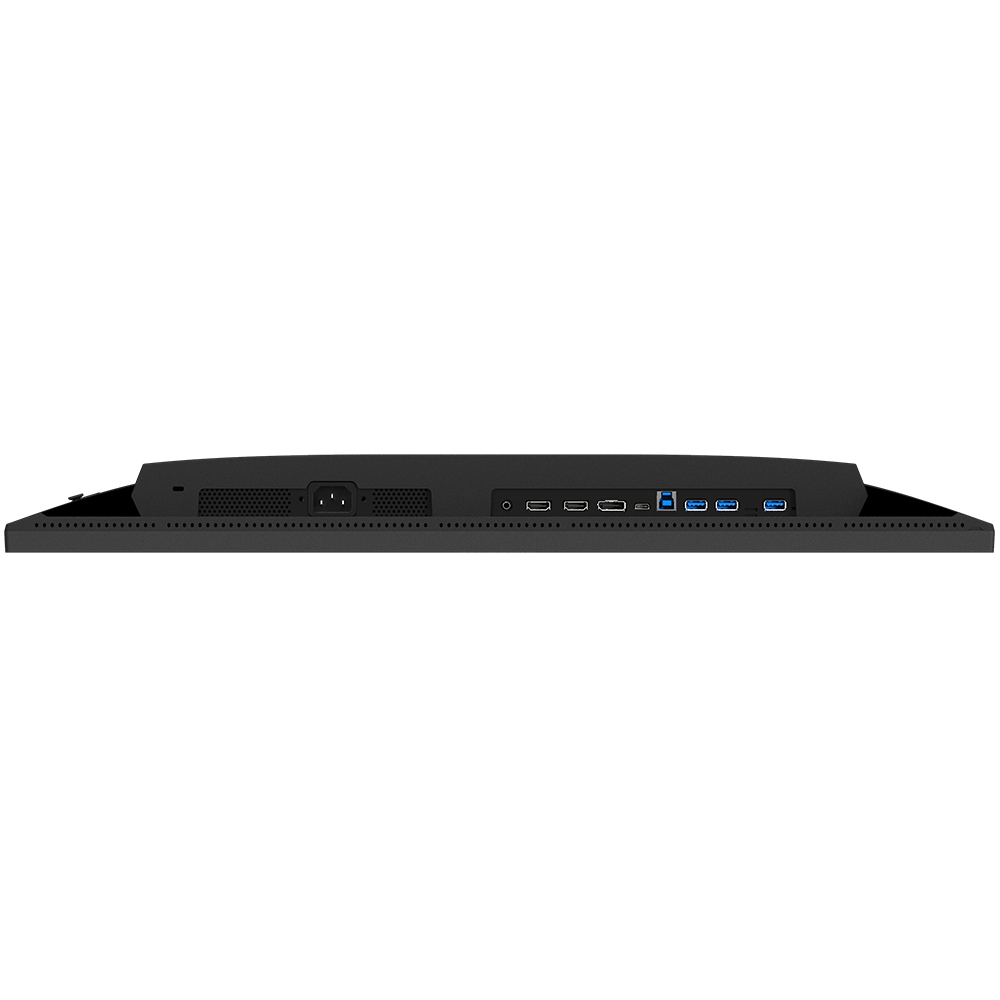

Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 3 |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone out | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 13 cm |
| Pivot | No |
| Swivelling | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 33 kWh |
| Energy consumption (HDR) per 1000 hours | 53 kWh |
| Power consumption (typical) | 115 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 636.5 mm |
| Depth (with stand) | 402.9 mm |
| Height (with stand) | 636.6 mm |
| Weight (with stand) | 6.93 kg |
| Width (without stand) | 636.5 mm |
| Depth (without stand) | 63.1 mm |
| Height (without stand) | 372.3 mm |
| Weight (without stand) | 5.18 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 890 mm |
| Package depth | 148 mm |
| Package height | 510 mm |
| Package weight | 9.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| HBR3 support | Yes |
Technical details
| Specification | Value |
|---|---|
| Native refresh rate | 60 Hz |
