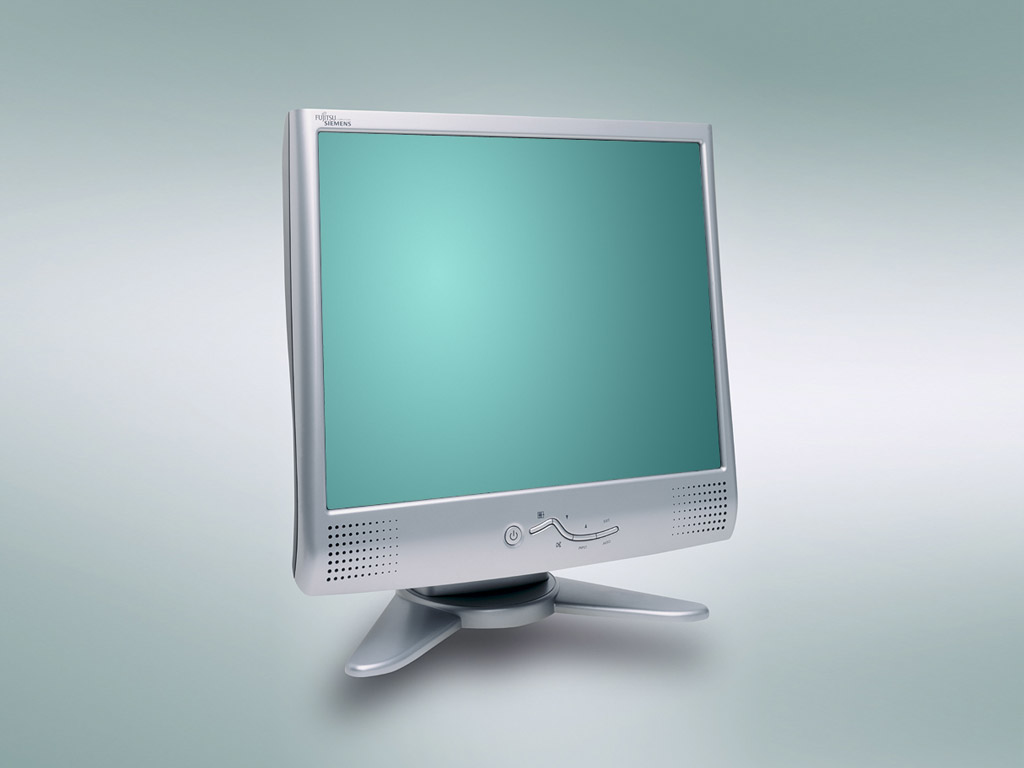

Fujitsu Scaleoview SD17-1: Full Specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Colour: Silver
Built-in speaker(s): Yes
USB Type-A downstream ports quantity: 0
Power consumption (standby): 2 W

Brand: Fujitsu
Category: Monitor
Model: Scaleoview SD17-1
Part number: S26361-K1034-V170
EAN / UPC: 4040528985102
Also known as: Fujitsu Displays Scaleoview SD17-1 computer monitor 43.2 cm (17") 1280 x 1024 pixels LCD Silver

Specifications

47 specifications in 11 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
Panel type	TFT
Display brightness (typical)	270 cd/m²
Response time	8 ms
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Aspect ratio	16:9
Contrast ratio (typical)	500:1
Viewing angle, horizontal	140°
Viewing angle, vertical	130°
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
3D	No

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No

Design

Specification	Value
Product colour	Silver

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	Yes
HDMI ports quantity	0
Audio input	Yes
Headphone connectivity	3.5 mm
HDCP	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Cable lock slot	Yes
Cable lock slot type	Kensington

Power

Specification	Value
Power consumption (standby)	2 W
Power consumption (max)	35 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C

Weight & dimensions

Specification	Value
Width (without stand)	378 mm
Depth (without stand)	190.4 mm
Height (without stand)	395 mm
Weight (without stand)	4.9 kg

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
TV tuner integrated	No
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
