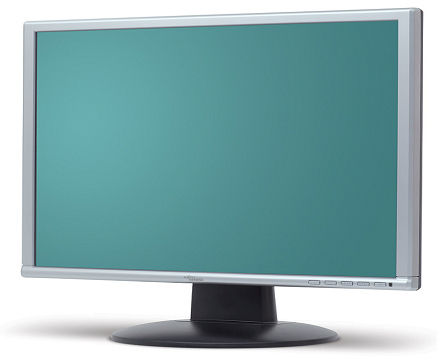

Fujitsu ScaleoView L22W-1

ScaleoView L22W-1

Model ScaleoView L22W-1Part no. BDL:CH-WHITEH22-1W

37 specifications Checked today

Display55.9 cm (22")
Resolution1680 x 1050 pixels
RMS rated power2 W
VGA (D-Sub) ports quantity1
Panel mounting interface100 x 100 mm
Power consumption (typical)49 W

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
RMS rated power: 2 W
VGA (D-Sub) ports quantity: 1
Panel mounting interface: 100 x 100 mm
Power consumption (typical): 49 W

Brand: Fujitsu
Category: Monitor
Model: ScaleoView L22W-1
Part number: BDL:CH-WHITEH22-1W
Also known as: Fujitsu SCALEOVIEW Series ScaleoView L22W-1 computer monitor 55.9 cm (22") 1680 x 1050 pixels

Specifications

37 specifications in 10 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	5 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	30 - 82 kHz
Vertical scan range	56 - 76 Hz

Multimedia

Specification	Value
RMS rated power	2 W
Built-in camera	No

Ports & interfaces

Specification	Value
VGA (D-Sub) ports quantity	1

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Tilt angle range	-5 - 20°
Plug and Play	Yes
LED indicators	Stand-by
Ergonomics	GS ISO13406-2

Power

Specification	Value
Power consumption (typical)	49 W
Power consumption (standby)	2 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Specification	Value
Width (with stand)	407 mm
Depth (with stand)	210 mm
Height (with stand)	506 mm
Weight (without stand)	4.7 kg

Packaging content

Specification	Value
Quick start guide	Yes
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
TV tuner integrated	No
Display viewable area (HxV)	296.1 x 473.8 mm
Power requirements	100 - 240 V, 50/60 Hz
Safety	EN60950
Mean time between failures (MTBF)	70000 h
