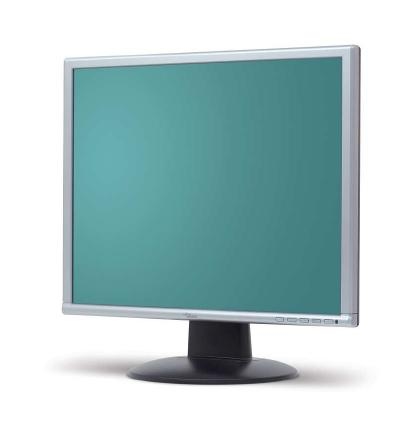

SCALEOVIEW L19-2
Model SCALEOVIEW L19-2Part no. S26361-K1117-V170EAN 4045827722090
29 specifications Checked today
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
- Power consumption (typical)50 W
- Operating temperature (T-T)15 - 32 °C
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 50 W
- Operating temperature (T-T)
- 15 - 32 °C
- Brand
- Fujitsu
- Category
- Monitor
- Model
- SCALEOVIEW L19-2
- Part numbers
- S26361-K1117-V170, S26361-K1117-V172
- EAN / UPC
- 4045827722090, 4045827903352
- Also known as
- Fujitsu SCALEOVIEW Series SCALEOVIEW L19-2 computer monitor 48.3 cm (19") 1280 x 1024 pixels
Specifications
29 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 155° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.294 |
| Horizontal scan range | 31 - 81 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 37.6 cm |
| Viewable size, vertical | 30.1 cm |
| Viewable size diagonal | 48 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | -5 - 20° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 50 W |
| Power consumption (standby) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 32 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 375 mm |
| Depth (with stand) | 214 mm |
| Height (with stand) | 410 mm |
| Weight (without stand) | 4.5 kg |
Other features
| Specification | Value |
|---|---|
| Certification | TCO99 |
