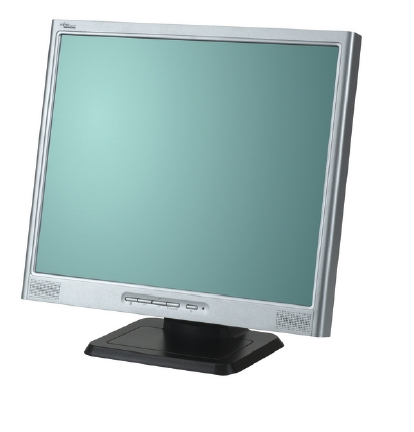

SCALEOVIEW L17-7
Model SCALEOVIEW L17-7Part no. S26361-K1206-V202EAN 4333643084448
36 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- RMS rated power4 W
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
- Power consumption (typical)40 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- RMS rated power
- 4 W
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 40 W
- Brand
- Fujitsu
- Category
- Monitor
- Model
- SCALEOVIEW L17-7
- Part number
- S26361-K1206-V202
- EAN / UPC
- 4333643084448
- Also known as
- Fujitsu SCALEOVIEW Series SCALEOVIEW L17-7 computer monitor 43.2 cm (17") 1280 x 1024 pixels
Specifications
36 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31 - 81 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size diagonal | 43 cm |
Multimedia
| Specification | Value |
|---|---|
| RMS rated power | 4 W |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Audio input | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt angle range | -5 - 20° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 40 W |
| Power consumption (standby) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 378 mm |
| Depth (with stand) | 214 mm |
| Height (with stand) | 372 mm |
| Weight (without stand) | 3.5 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Display viewable area (HxV) | 338 x 270 mm |
| Power requirements | 100 - 240 V, 50 - 60 Hz |
| Safety | EN60950, NEMKO |
| Mean time between failures (MTBF) | 70000 h |
| Certification | DDC2B, ISO13406-2, CE, 89/336/EEC, EN55022/B, EN50082-1, EN61000-3-2/-3, TCO 03, FCC Class B part 15 |
