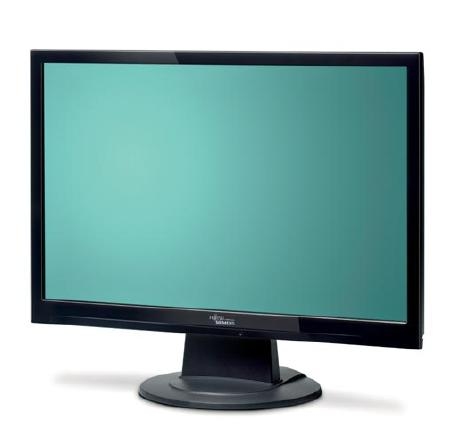

SCALEOVIEW D22W-1
Model SCALEOVIEW D22W-1Part no. S26361-K1230-V170EAN 4333643137588
28 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourBlack
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
- Power consumption (typical)55 W
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- Black
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 55 W
- Brand
- Fujitsu
- Category
- Monitor
- Model
- SCALEOVIEW D22W-1
- Part number
- S26361-K1230-V170
- EAN / UPC
- 4333643137588
- Also known as
- Fujitsu SCALEOVIEW Series SCALEOVIEW D22W-1 computer monitor 55.9 cm (22") 1680 x 1050 pixels Black
Specifications
28 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.282 |
| Horizontal scan range | 31.5 - 83 kHz |
| Vertical scan range | 56 - 76 Hz |
| Viewable size, horizontal | 47.4 cm |
| Viewable size, vertical | 29.6 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt angle range | -5 - 15° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 55 W |
| Power consumption (standby) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 510 mm |
| Depth (with stand) | 202 mm |
| Height (with stand) | 424 mm |
| Weight (without stand) | 4.94 kg |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100 - 230 VAC, 50 - 60 Hz |
