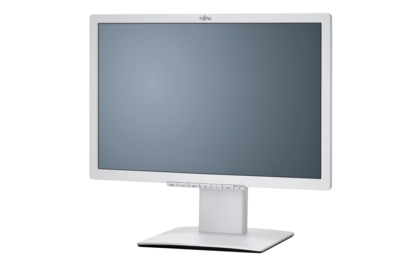

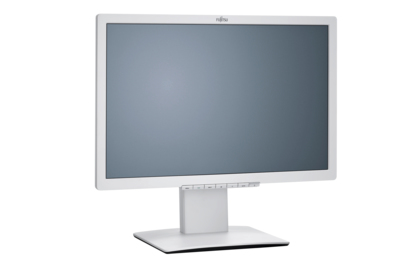

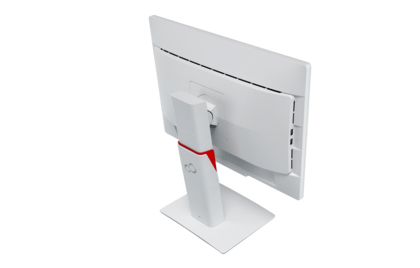

Fujitsu B22W-7 LED

Model B22W-7 LEDPart no. BDL:K1472V140-UK

86 specifications Checked 2 days ago

Overview

Brand: Fujitsu
Category: Monitor
Model: B22W-7 LED
Part numbers: BDL:K1472V140-UK, BDL:K1472V141-UK
Also known as: Fujitsu B22W-7 LED computer monitor 55.9 cm (22") 1680 x 1050 pixels HD+ Grey

86 specifications in 14 groups

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
HD type	HD+
Panel type	TN
Display brightness (typical)	250 cd/m²
Response time	5 ms
Display surface	Matt
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900, 1680 x 1050 (WSXGA+)
Supported video modes	480p
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	30 - 82 kHz
Vertical scan range	56 - 76 Hz
Colour gamut standard	sRGB
3D	No

Specification	Value
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64

Specification	Value
Product colour	Grey

Specification	Value
Built-in USB hub	Yes
USB version	2.0
Number of upstream ports	1
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
DisplayPorts quantity	1
Audio input	Yes
Audio output	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	Yes
AC (power) in	Yes

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	13 cm
Swivelling	Yes
Swivel angle range	0 - 340°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Number of OSD languages	19

Specification	Value
Power consumption (typical)	17 W
Power consumption (PowerSave)	0.23 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	22 kWh

Specification	Value
Operating temperature (T-T)	5 - 35 °C

Specification	Value
Package weight	7.5 kg
User Guide on CD-ROM	Yes

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Specification	Value
Rotating	Yes
TV tuner integrated	No
Active display area (W x H)	474 x 296 mm
ECO mode	Yes
Energy efficiency class (legacy scale)	A+
Mean time between failures (MTBF)	70000 h
Certification	CE certification according to EC Directive 2004/108/EEC, RoHS, WEEE, IT-Eco-Declaration, TÜV GS, EAC, FCC Class B, cUL, RCM, VCCI, KC, TÜV-S, S-Mark, BSMI, CCC, SASO, TCO Displays 6.0, ISO9241-307, TÜV Flicker Free
Supplied AC adapter type	LED

Specification	Value
Thin client installed	No
