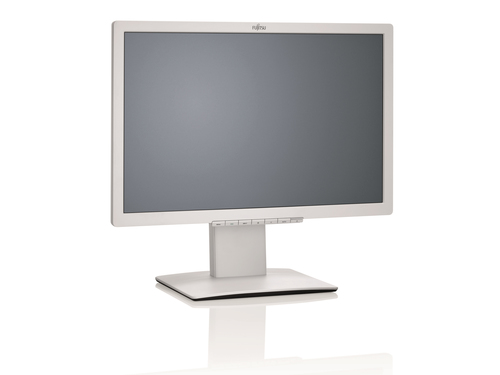

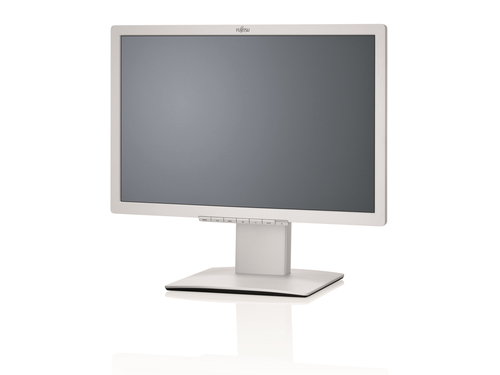

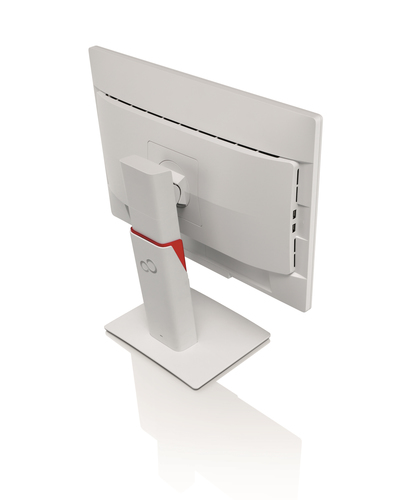

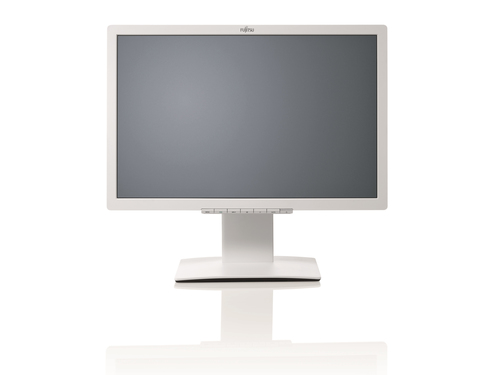

B line B22W-7 computer monitor
55.9 cm (22") 1680 x 1050 pixels HD LED White
Model B22W-7EAN 4057185833721
80 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourWhite
- Built-in speaker(s)Yes
- USB hub version2.0
- Power consumption (typical)17 W
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- White
- Built-in speaker(s)
- Yes
- USB hub version
- 2.0
- Power consumption (typical)
- 17 W
- Brand
- Fujitsu
- Category
- Monitor
- Model
- B22W-7
- Part numbers
- B22W-7, S26361-K1472-V140, S26361-K1472-V141
- EAN / UPC
- 4057185833721, 4051554619831, 4053162410718, 5712505119471
- Also known as
- Fujitsu B line B22W-7 computer monitor 55.9 cm (22") 1680 x 1050 pixels HD LED White
Specifications
80 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | No |
| HD type | HD |
| Panel type | TN |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Display surface | Matt |
| Supported graphics resolutions | 1440 x 900, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.282 x 0.282 mm |
| Horizontal scan range | 30 - 82 kHz |
| Vertical scan range | 56 - 76 Hz |
| Viewable size, horizontal | 47.4 cm |
| Viewable size, vertical | 29.6 cm |
| Colour gamut standard | sRGB |
| 3D | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 1.5 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
| Headphone connectivity | 3.5 mm |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 13 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | 0 - 340° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 35° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 17 W |
| Power consumption (off) | 0.2 W |
| Power consumption (PowerSave) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 514 mm |
| Depth (with stand) | 199 mm |
| Height (with stand) | 367 mm |
| Weight (with stand) | 6 kg |
| Width (without stand) | 514 mm |
| Depth (without stand) | 65 mm |
| Height (without stand) | 346 mm |
| Weight (without stand) | 3.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.5 kg |
| User Guide on CD-ROM | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Audio (3.5mm), DVI, USB, VGA |
| Quick start guide | Yes |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Mean time between failures (MTBF) | 70000 h |
| Certification | TÜV GS, EAC, FCC B, cUL, C-Tick, VCCI, KC, TÜV-S, CCC, SASO, ISO9241-307 |
| Supplied AC adapter type | AC |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
