B22-8 TS Pro

Model B22-8 TS ProPart no. VFY:B228TDXSP2EUEAN 4063872886833

87 specifications Checked today

Overview

Brand: Fujitsu
Category: Monitor
Model: B22-8 TS Pro
Part numbers: VFY:B228TDXSP2EU, S26361-K1602-V160, BDL:K1602V160-UK, VFY:B228TDXSP1EU, S26361-K1602-V161
EAN / UPC: 4063872886833, 4057185709163, 4058154219171, 4058154238042 +2 more
Also known as: Fujitsu Displays B22-8 TS Pro computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Black

87 specifications in 14 groups

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	IPS
Display brightness (typical)	250 cd/m²
Response time	10 ms
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+)
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.248 x 0.248 mm
Horizontal scan range	30 - 82 kHz
Vertical scan range	56 - 76 Hz
Viewable size, horizontal	47.6 cm
Viewable size, vertical	26.8 cm
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Specification	Value
Product colour	Black

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
Number of upstream ports	1
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
DisplayPorts quantity	1
Audio input	Yes
Audio output	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	Yes

Specification	Value
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	0 - 340°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°

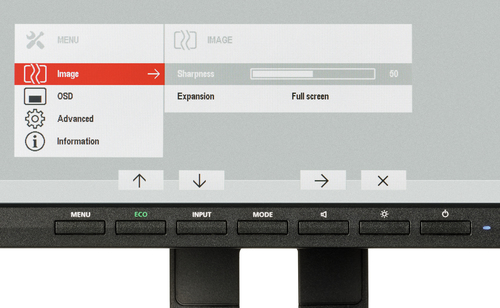

On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish

Specification	Value
Energy efficiency class (SDR)	D
Energy consumption (SDR) per 1000 hours	12 kWh
Power consumption (typical)	14 W
Power consumption (standby)	0.12 W
Power consumption (max)	20 W
Power consumption (PowerSave)	0.16 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85%

Specification	Value
Package weight	6.47 kg

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Specification	Value
AC adapter included	Yes
On/off switch	Yes
TV tuner integrated	No
ECO mode	Yes
Compliance industry standards	TÜV GS, EAC, FCC Klasse B, cUL, RCM, VCCI, KC#E-Standby, S-Mark, BSMI, CCC, SASO
Certification	2004/108/EWG, EN 60950, RoHS, WEEE, IT-EcoDeclaration, TCO
Supplied AC adapter type	AC
