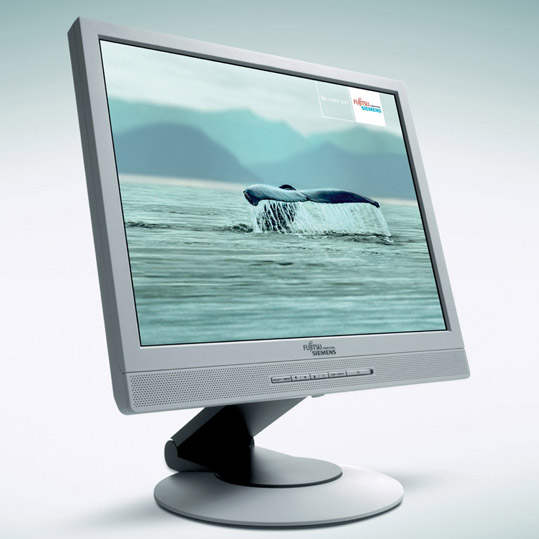

B17-2 17" TFT TCO99 analog
Model B17-2 17" TFT TCO99 analogPart no. S26361-K977-V150
26 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourSilver
- I/O ports1 x D-SUB (15-pin)
- Tilt angle range-5 - 25°
- Power consumption (typical)30 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Silver
- I/O ports
- 1 x D-SUB (15-pin)
- Tilt angle range
- -5 - 25°
- Power consumption (typical)
- 30 W
- Brand
- Fujitsu
- Category
- Monitor
- Model
- B17-2 17" TFT TCO99 analog
- Part number
- S26361-K977-V150
- Also known as
- Fujitsu SCENICVIEW Series B17-2 17" TFT TCO99 analog computer monitor 43.2 cm (17") 1280 x 1024 pixels Silver
Specifications
26 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 260 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 500:1 |
| Viewing angle, horizontal | 140° |
| Viewing angle, vertical | 125° |
| Pixel pitch | 0.264 |
| Horizontal scan range | 30 - 82 kHz |
| Vertical scan range | 56 - 76 Hz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1 x D-SUB (15-pin) |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -5 - 25° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 30 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 374 mm |
| Depth (without stand) | 249 mm |
| Height (without stand) | 360 mm |
| Weight (without stand) | 5.7 kg |
Other features
| Specification | Value |
|---|---|
| Certification | TCO99 |
| Speakers and microphone | 2 x 2,0W |
| Supplied AC adapter type | LCD |
