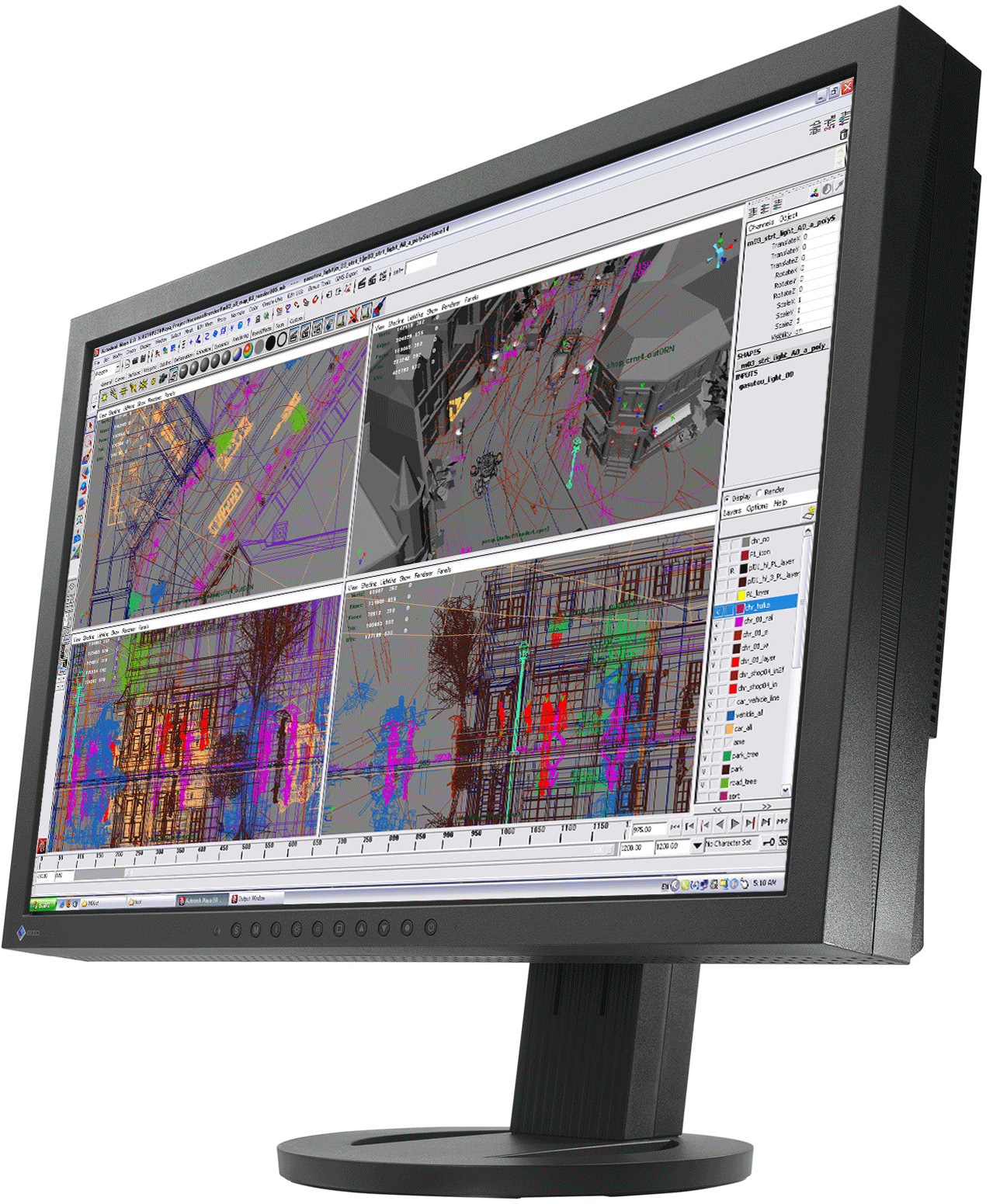

SX2262WCAL-BK computer monitor

55.9 cm (22") 1920 x 1200 pixels Black

Model SX2262WCAL-BK

59 specifications Checked today

Overview

Brand: EIZO
Category: Monitor
Model: SX2262WCAL-BK
Part number: SX2262WCAL-BK
Also known as: EIZO SX2262WCAL-BK computer monitor 55.9 cm (22") 1920 x 1200 pixels Black

59 specifications in 10 groups

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Touchscreen	No
Display brightness (typical)	280 cd/m²
Response time	5 ms
Supported graphics resolutions	1920 x 1200 (WUXGA)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.247 x 0.247 mm
Horizontal scan range	31 - 76 kHz
Vertical scan range	49 - 86 Hz
Viewable size, horizontal	47.4 cm
Viewable size, vertical	29.6 cm
Viewable size diagonal	55.8 cm
Digital horizontal frequency	31 - 76 kHz
Digital vertical frequency	59 - 61 Hz
Colour gamut standard	sRGB
3D	No

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Product colour	Black

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	2
DVI-I ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	1
HDCP	Yes
AC (power) in	Yes

Specification	Value
Cable lock slot	No
Pivot	Yes
Pivot angle	0 - 90°
Swivel angle range	0 - 172°
Tilt angle range	0 - 30°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish
Plug and Play	Yes
LED indicators	Power

Specification	Value
Power consumption (typical)	45 W
Power consumption (PowerSave)	1 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
