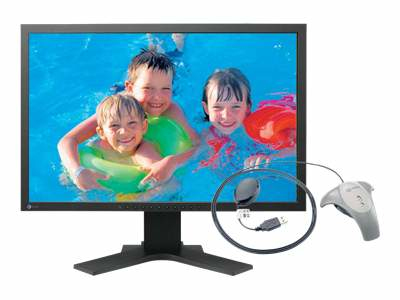

EIZO S22433W-Photo computer monitor

EIZO S22433W-Photo computer monitor

55.9 cm (22") 1680 x 1050 pixels LCD Black

Model S22433W-PhotoPart no. 21295

73 specifications Checked 4 days ago

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack
Built-in speaker(s)No
USB hub version2.0
Power consumption (typical)32 W

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black
Built-in speaker(s): No
USB hub version: 2.0
Power consumption (typical): 32 W

Brand: EIZO
Category: Monitor
Model: S22433W-Photo
Part number: 21295
Also known as: EIZO S22433W-Photo computer monitor 55.9 cm (22") 1680 x 1050 pixels LCD Black

Specifications

73 specifications in 11 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
Panel type	PVA
Display brightness (typical)	350 cd/m²
Response time	6 ms
Supported graphics resolutions	720 x 400, 1280 x 960, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Aspect ratio	16:10
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.282 x 0.282 mm
Viewable size, horizontal	47.4 cm
Viewable size, vertical	29.6 cm
Digital horizontal frequency	31 - 82 kHz
Digital vertical frequency	55 - 76 Hz
3D	No
Pixel frequency	150 MHz

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	1
Mini DisplayPorts quantity	0
HDCP	Yes
AC (power) in	Yes
Composite video in	0
Composite video out	0
SCART ports quantity	0
RF ports quantity	0
Digital audio optical out	0
BNC input ports	0
Common interface (CI)	No
Common interface Plus (CI+)	No
Component video (YPbPr/YCbCr) in	0
Component video (YPbPr/YCbCr) out	0
Firewire (IEEE 1394) ports	0
RS-232 ports	0
RS-485 ports	0
S-Video inputs quantity	0
Thunderbolt ports quantity	0

Network

Specification	Value
Bluetooth	No
Ethernet LAN	No

Ergonomics

Specification	Value
Cable lock slot	No
Pivot	Yes
Pivot angle	90
Swivel angle range	-35 - 35°
Tilt angle range	0 - 40°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	32 W
Power consumption (max)	90 W

Weight & dimensions

Specification	Value
Width (with stand)	511 mm
Depth (with stand)	208.5 mm
Height (with stand)	521 mm
Weight (with stand)	9.6 kg
Width (without stand)	511 mm
Depth (without stand)	85 mm
Height (without stand)	333 mm
Weight (without stand)	6.6 kg

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Other features

Specification	Value
TV tuner integrated	No
Ethernet LAN (RJ-45) ports	0
Certification	TCO 5.0, CE, TÜV GS, TÜV
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
