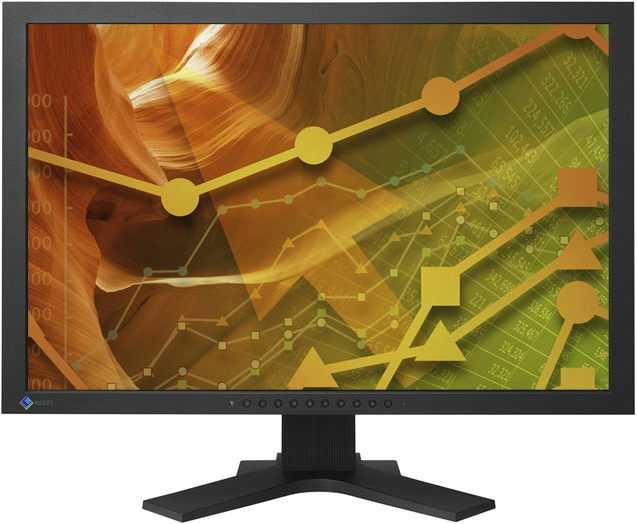

S2202WSH-BK computer monitor
55.9 cm (22") 1680 x 1050 pixels Black
Model S2202WSH-BK
59 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourBlack
- Built-in speaker(s)Yes
- USB Type-A downstream ports quantity0
- Power consumption (typical)23 W
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- Black
- Built-in speaker(s)
- Yes
- USB Type-A downstream ports quantity
- 0
- Power consumption (typical)
- 23 W
- Brand
- EIZO
- Category
- Monitor
- Model
- S2202WSH-BK
- Part number
- S2202WSH-BK
- Also known as
- EIZO S2202WSH-BK computer monitor 55.9 cm (22") 1680 x 1050 pixels Black
Specifications
59 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Native aspect ratio | 16:10 |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Supported graphics resolutions | 1680 x 1050 (WSXGA+) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.282 x 0.282 mm |
| Horizontal scan range | 31 - 82 kHz |
| Vertical scan range | 55 - 76 Hz |
| Viewable size, horizontal | 47.4 cm |
| Viewable size, vertical | 29.6 cm |
| Viewable size diagonal | 55.8 cm |
| Digital horizontal frequency | 31 - 65 kHz |
| Digital vertical frequency | 59 - 61 Hz |
| 3D | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 1 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| HDMI ports quantity | 0 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivel angle range | 0 - 35° |
| Tilt angle range | 0 - 40° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Swedish |
| Plug and Play | Yes |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 23 W |
| Power consumption (PowerSave) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 507 mm |
| Depth (with stand) | 230 mm |
| Height (with stand) | 521 mm |
| Weight (with stand) | 10.2 kg |
| Width (without stand) | 507 mm |
| Depth (without stand) | 74 mm |
| Height (without stand) | 333 mm |
| Weight (without stand) | 6.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Certification | TCO, TUV, CE, CB, UL, CsA, FCC-B, VCCI-B, EPA, RoHS, WEEE, EPEAT, EIZO |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
