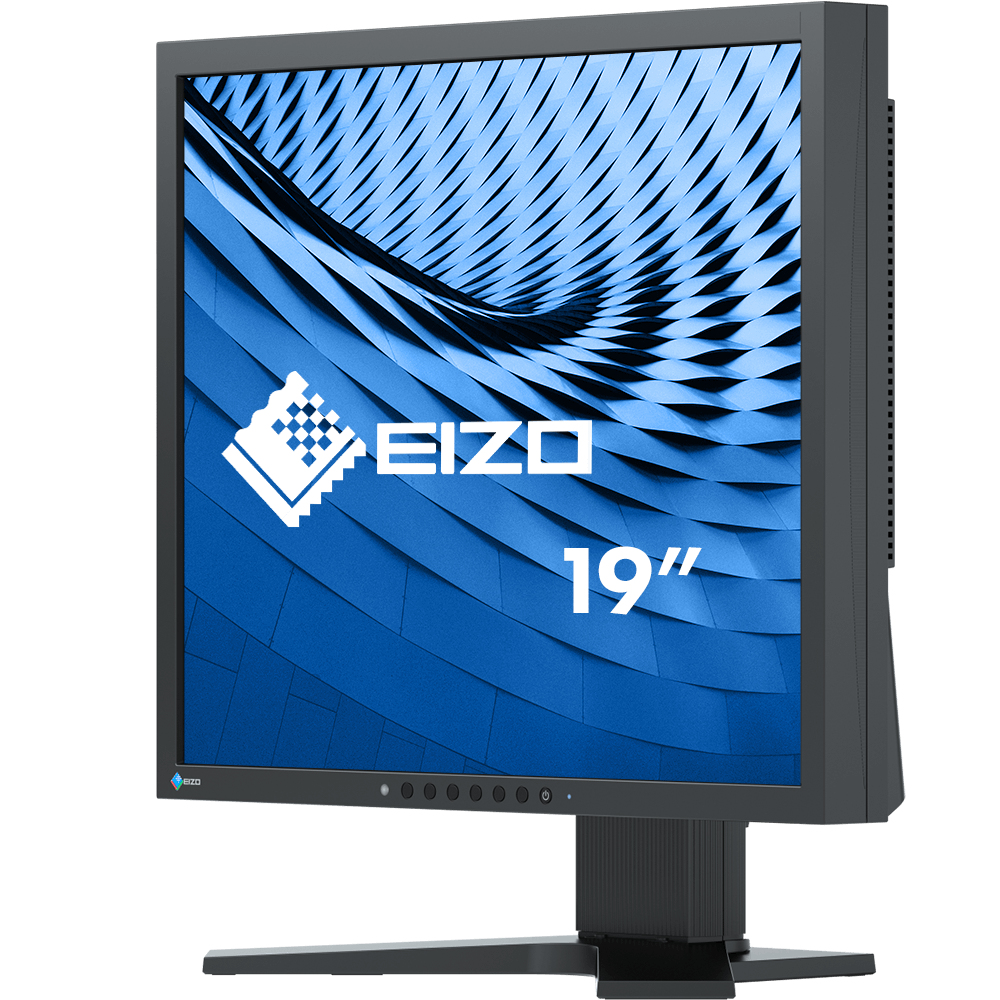

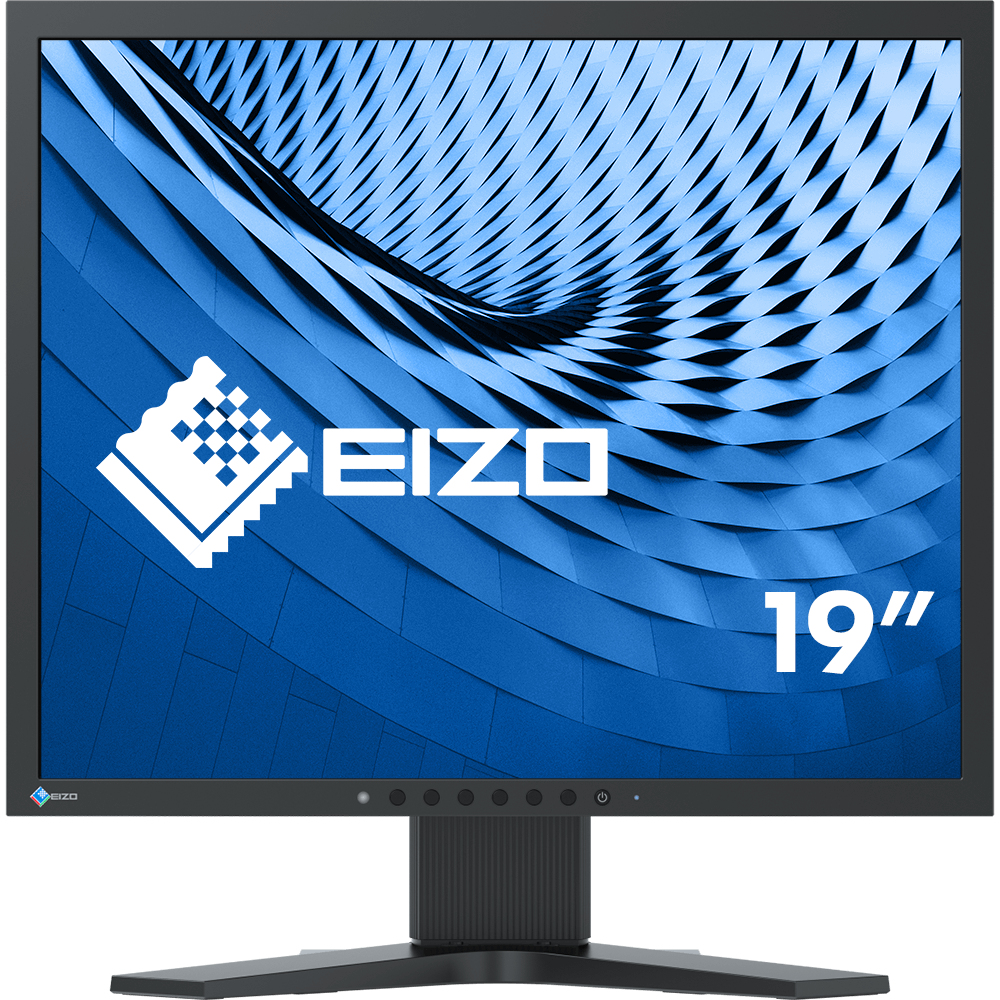

FlexScan S1934H-BK computer monitor

48.3 cm (19") 1280 x 1024 pixels SXGA LCD Black

Model S1934H-BKEAN 690592042269

90 specifications Checked today

Overview

Brand: EIZO
Category: Monitor
Model: S1934H-BK
Part number: S1934H-BK
EAN / UPC: 690592042269, 4995047049234, 5704174648857
Also known as: EIZO FlexScan S1934H-BK computer monitor 48.3 cm (19") 1280 x 1024 pixels SXGA LCD Black

90 specifications in 13 groups

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LCD
Touchscreen	No
HD type	SXGA
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	14 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.293 x 0.293 mm
Pixel density	87 ppi
Horizontal scan range	31 - 64 kHz
Vertical scan range	55 - 61 Hz
Viewable size, horizontal	37.5 cm
Viewable size, vertical	30 cm
Viewable size diagonal	48.1 cm
Colour gamut standard	sRGB

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	10 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-35 - 35°
Tilt adjustment	Yes
Tilt angle range	0 - 30°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish
Number of OSD languages	9

Specification	Value
Energy efficiency class (SDR)	C
Energy consumption (SDR) per 1000 hours	9 kWh
Power consumption (typical)	9.4 W
Power consumption (standby)	0.5 W
Power consumption (max)	21 W
Power consumption (off)	0.1 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
Automatic brightness control	Yes
Look-up table (LUT) bit depth	10
Certification	TCO, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, RoHS, CCC, EAC
Warranty period	5 year(s)
