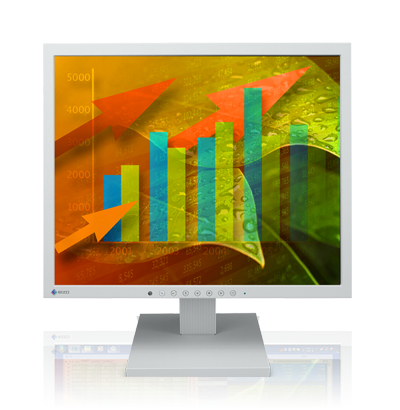

FlexScan S1703-WT computer monitor

43.2 cm (17") 1280 x 1024 pixels SXGA LED White

Model S1703-WT

66 specifications Checked today

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ColourWhite
NVIDIA G-SYNCNo
Built-in speaker(s)Yes
Market positioningBusiness

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Colour: White
NVIDIA G-SYNC: No
Built-in speaker(s): Yes
Market positioning: Business

Brand: EIZO
Category: Monitor
Model: S1703-WT
Part number: S1703-WT
Also known as: EIZO FlexScan S1703-WT computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LED White

Specifications

66 specifications in 11 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
HD type	SXGA
Panel type	TN
Backlight type	LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	31 - 64 kHz
Vertical scan range	59 - 61 Hz
Viewable size, horizontal	33.8 cm
Viewable size, vertical	27 cm
Sync-on-green (SOG)	Yes
3D	No
Separate H/V sync	Yes

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	1 W
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	White

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
HDMI ports quantity	0
DisplayPorts quantity	0
Audio input	Yes
Audio output	Yes
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Tilt adjustment	Yes
Tilt angle range	-5 - 30°
On Screen Display (OSD)	Yes

Power

Specification	Value
Power consumption (typical)	9 W
Power consumption (max)	25 W
Power consumption (PowerSave)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	367 mm
Depth (with stand)	188 mm
Height (with stand)	384 mm
Weight (with stand)	4.4 kg
Width (without stand)	367 mm
Depth (without stand)	59 mm
Height (without stand)	304 mm
Weight (without stand)	3.6 kg

Packaging content

Specification	Value
Cables included	AC, DVI, VGA

Other features

Specification	Value
TV tuner integrated	No
Certification	TCO Displays 6.0, EPEAT Gold (US), TUV/Ergo- nomics (including ISO9241-307), TUV/GS, C-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, CCC, GOST-R
