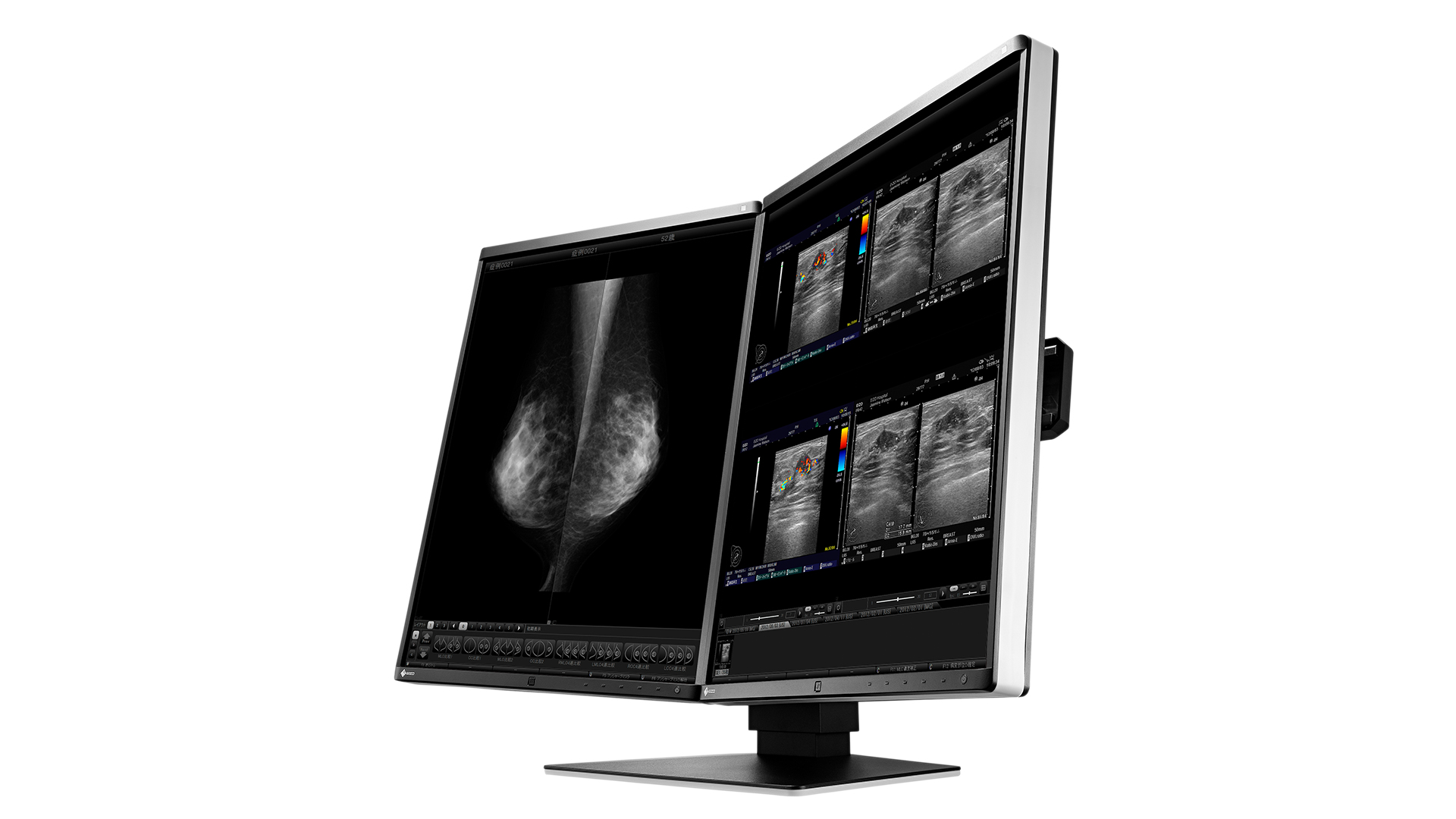

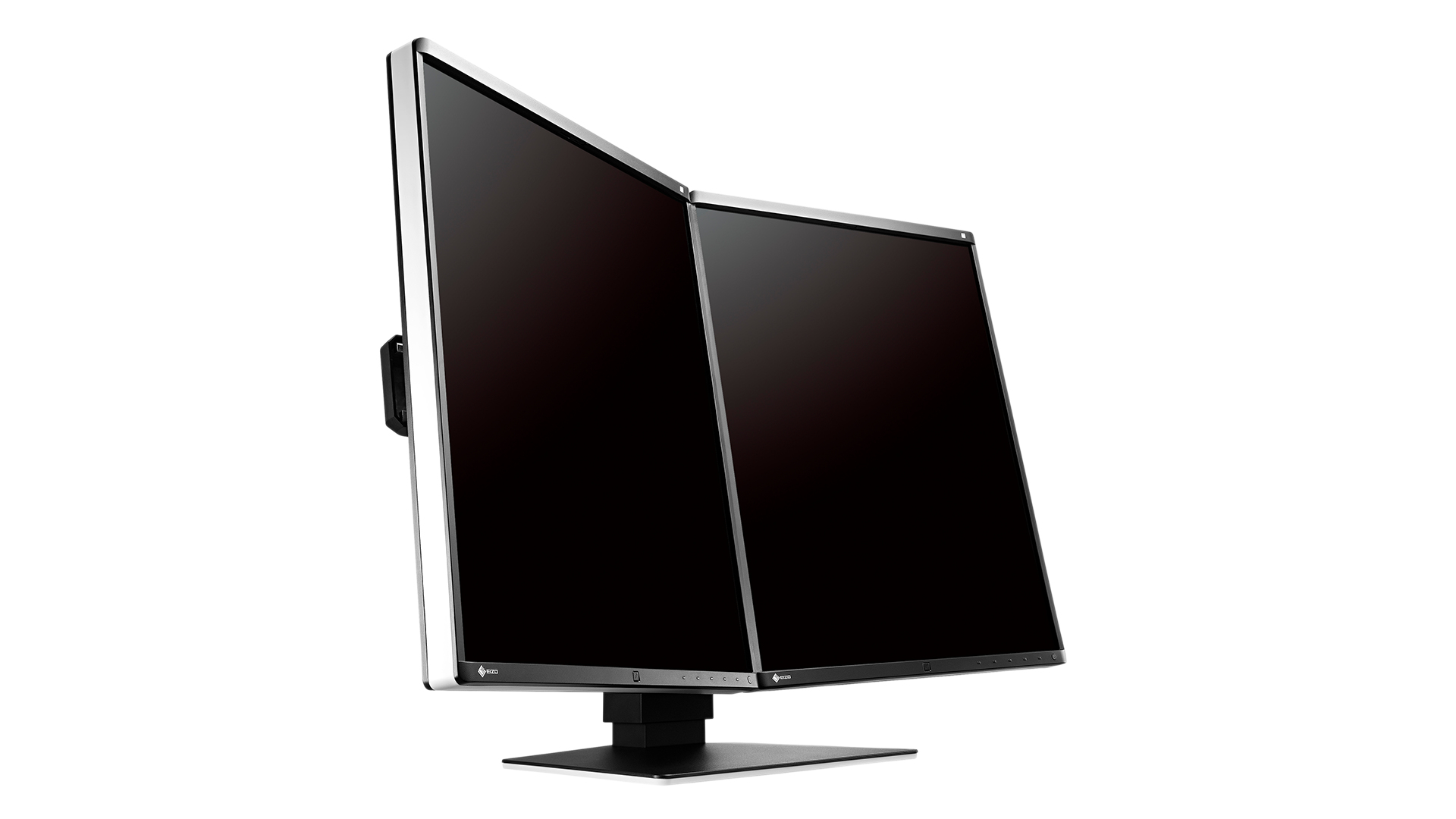

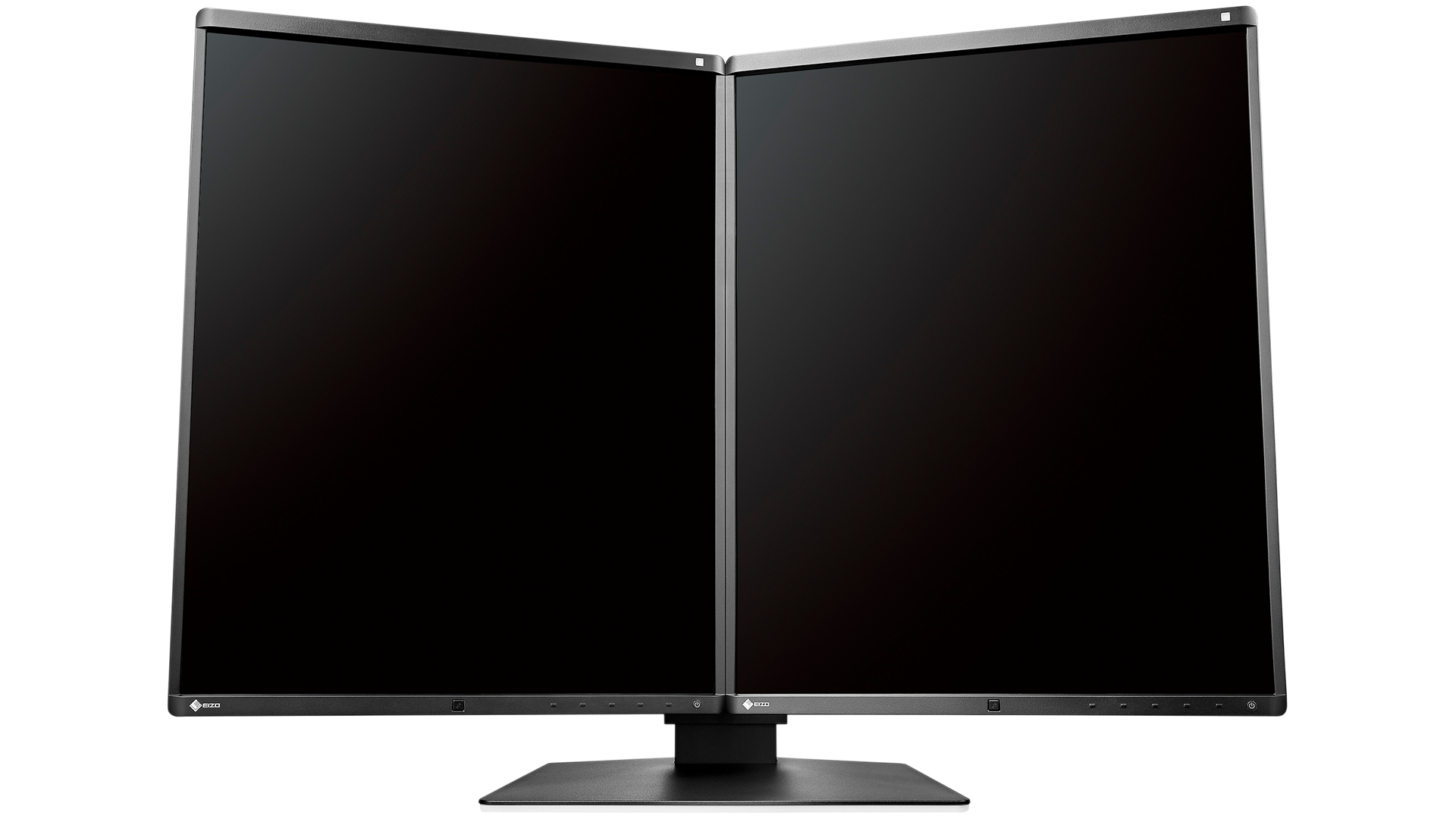

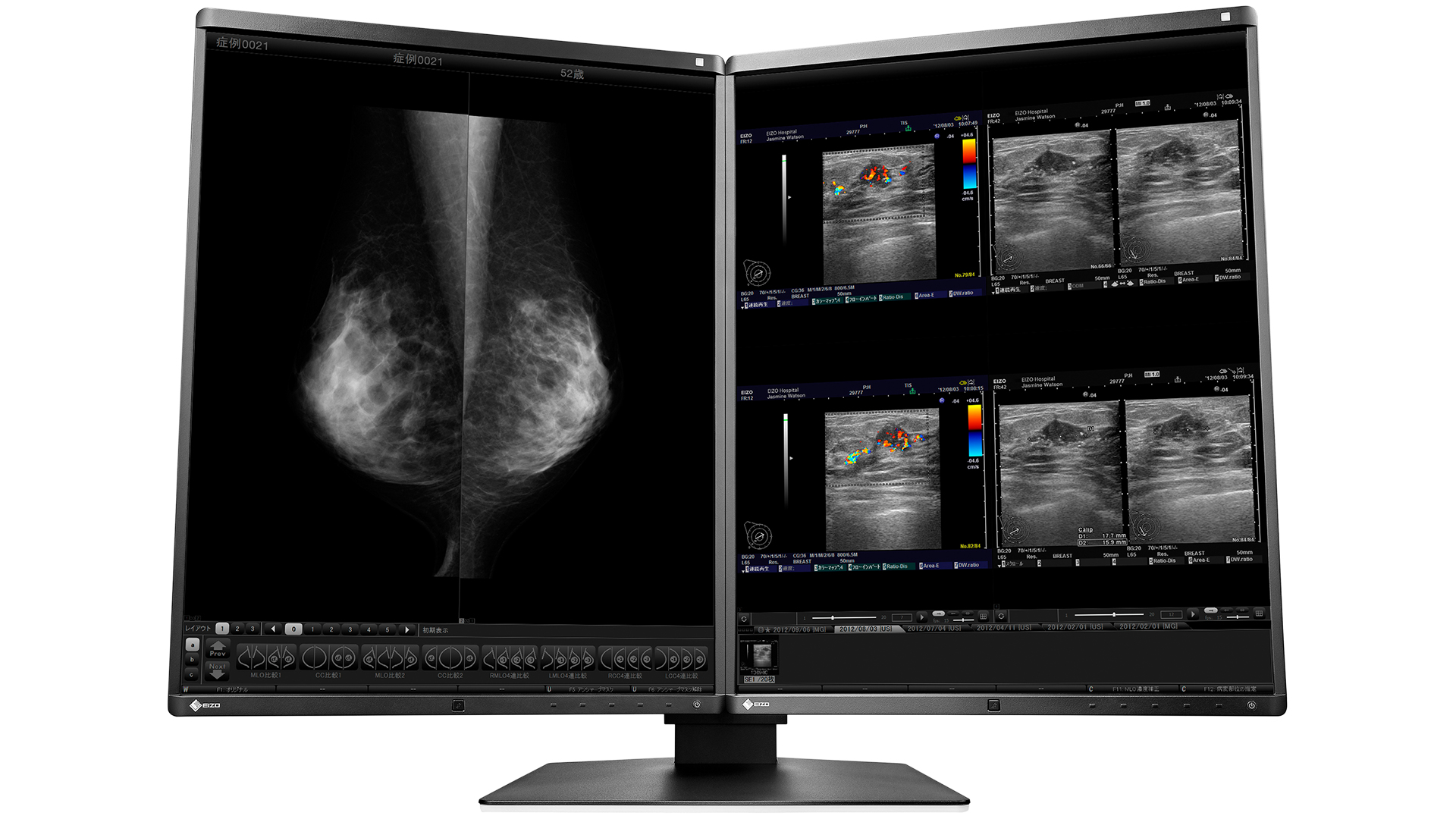

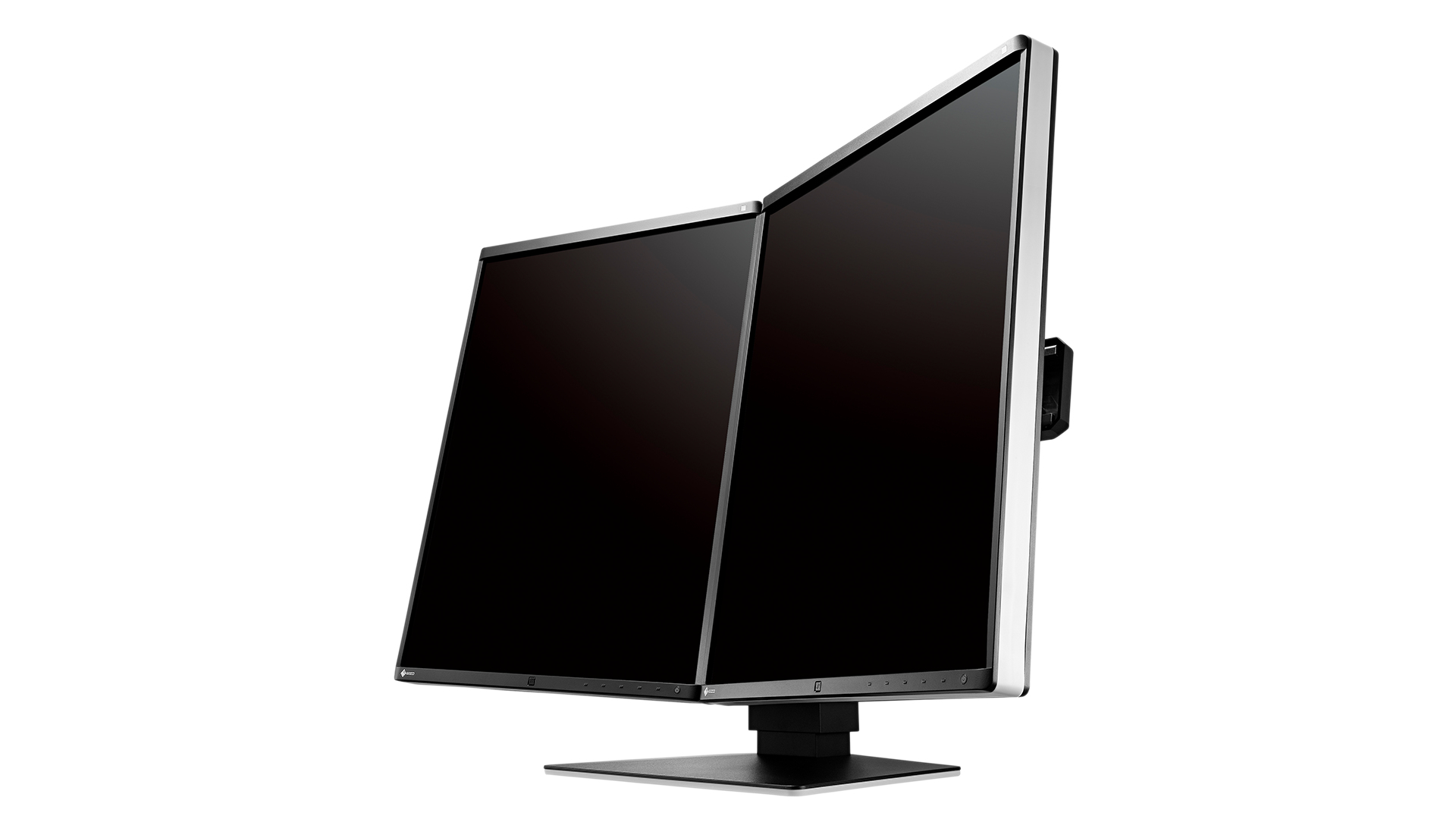

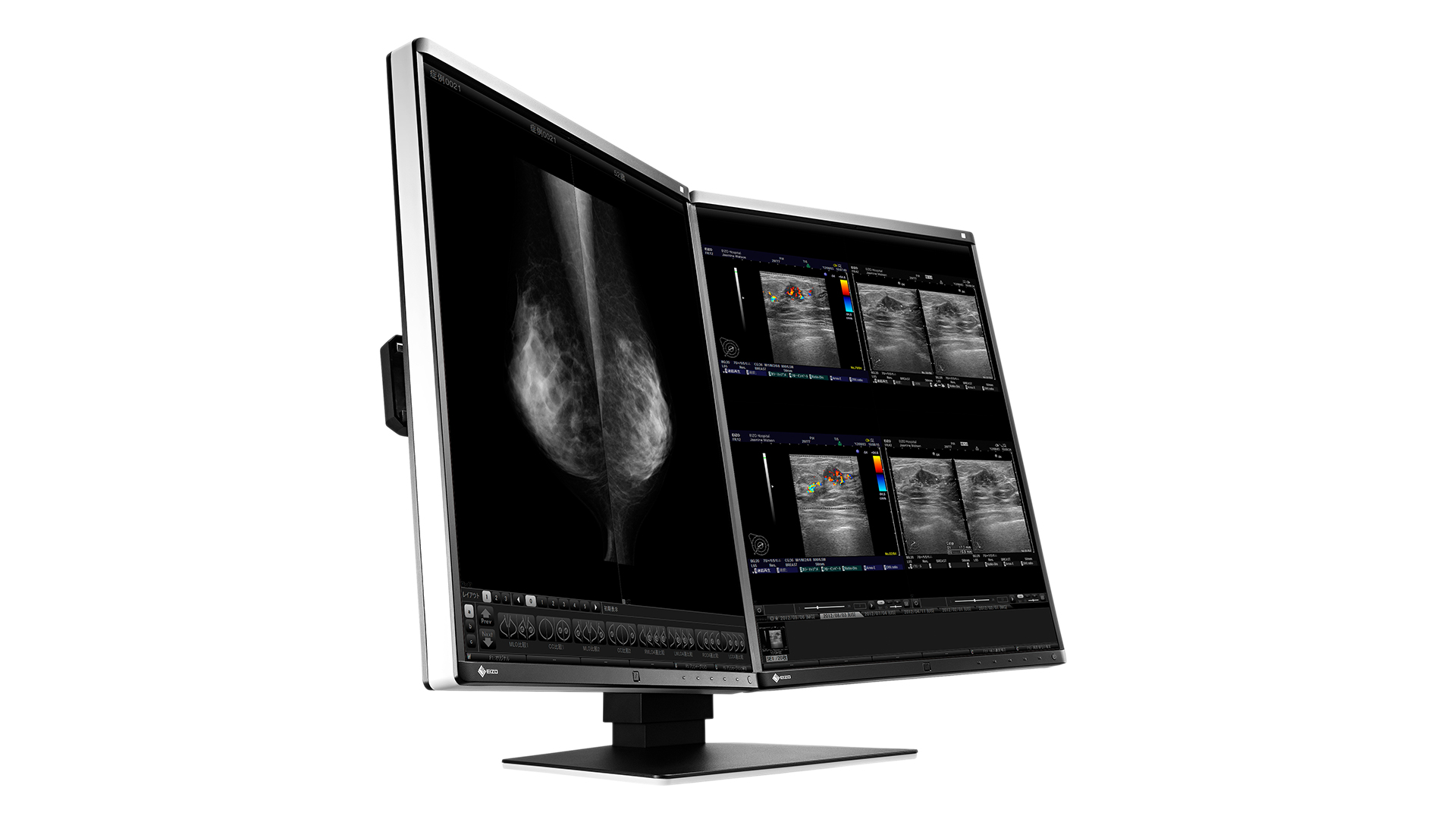

RadiForce RX560-MD computer monitor

54.1 cm (21.3") 2048 x 2560 pixels LCD Black

Model RX560-MD

58 specifications Checked today

Display54.1 cm (21.3")
Resolution2048 x 2560 pixels
ColourBlack
NVIDIA G-SYNCNo
Market positioningMedical
Built-in USB hubYes

See all specifications

Overview

Display: 54.1 cm (21.3")
Resolution: 2048 x 2560 pixels
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Medical
Built-in USB hub: Yes

Brand: EIZO
Category: Monitor
Model: RX560-MD
Part number: RX560-MD
Also known as: EIZO RadiForce RX560-MD computer monitor 54.1 cm (21.3") 2048 x 2560 pixels LCD Black

Specifications

58 specifications in 9 groups

Display

Specification	Value
Display diagonal	54.1 cm (21.3")
Display resolution	2048 x 2560 pixels
Native aspect ratio	4:5
Display technology	LCD
Touchscreen	No
Panel type	IPS
Backlight type	LED
Display brightness (typical)	1100 cd/m²
Response time	12 ms
Anti-glare screen	Yes
Screen shape	Flat
Contrast ratio (typical)	1500:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.165 x 0.165 mm
Viewable size, horizontal	33.8 cm
Viewable size, vertical	42.2 cm
Digital horizontal frequency	31 - 135 kHz
Digital vertical frequency	23 - 61 Hz
Display diagonal (metric)	54.1 cm
Colour gamut standard	sRGB

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Design

Specification	Value
Market positioning	Medical
Product colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
USB upstream port type	USB Type-B
Number of USB Type-B upstream ports quantity	1
USB Type-A downstream ports quantity	2
DVI port	Yes
DVI-D ports quantity	1
HDMI	No
DisplayPorts quantity	2

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	Yes
Adjustable height (max)	9 cm
Swivelling	Yes
Swivel angle range	0 - 70°
Tilt adjustment	Yes
Tilt angle range	-5 - 30°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese

Power

Specification	Value
Power consumption (typical)	43 W
Power consumption (max)	87 W
Power consumption (off)	0 W
Power consumption (PowerSave)	1 W
AC input voltage	100 - 230 V
AC input frequency	50 - 60 Hz

Weight & dimensions

Specification	Value
Width (with stand)	709 mm
Depth (with stand)	225 mm
Height (with stand)	519.3 mm
Weight (with stand)	17.3 kg

Packaging content

Specification	Value
Cables included	AC, DisplayPort, DVI, USB Type-A to USB Type-B
Quick start guide	Yes

Other features

Specification	Value
Certification	CE (Medical Device), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
