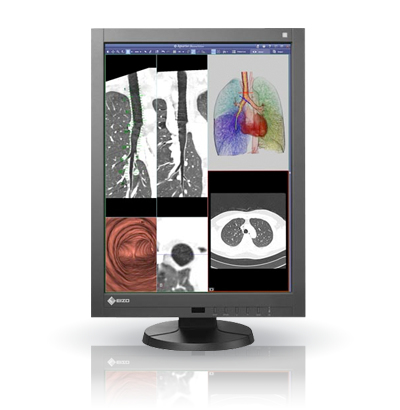

EIZO RX240 computer monitor

RX240 computer monitor

54.1 cm (21.3") 1200 x 1600 pixels LED

Model RX240EAN 690592033205

65 specifications Checked today

Display54.1 cm (21.3")
Resolution1200 x 1600 pixels
Market positioningMedical
Built-in USB hubYes
Power consumption (typical)52 W
Width (with stand)376 mm

See all specifications

Overview

Display: 54.1 cm (21.3")
Resolution: 1200 x 1600 pixels
Market positioning: Medical
Built-in USB hub: Yes
Power consumption (typical): 52 W
Width (with stand): 376 mm

Brand: EIZO
Category: Monitor
Model: RX240
Part number: RX240
EAN / UPC: 690592033205, 4995047040170
Also known as: EIZO RX240 computer monitor 54.1 cm (21.3") 1200 x 1600 pixels LED

Specifications

65 specifications in 10 groups

Display

Specification	Value
Display diagonal	54.1 cm (21.3")
Display resolution	1200 x 1600 pixels
Native aspect ratio	3:4
Display technology	LED
Touchscreen	No
Panel type	IPS
Display brightness (typical)	760 cd/m²
Response time	40 ms
Screen shape	Flat
Aspect ratio	3:4
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	176°
Viewing angle, vertical	176°
Pixel pitch	0.27 x 0.27 mm
Viewable size, horizontal	32.4 cm
Viewable size, vertical	43.2 cm
Digital horizontal frequency	31 - 100 kHz
Digital vertical frequency	59 - 61 Hz
3D	Yes

Design

Specification	Value
Market positioning	Medical

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
Number of upstream ports	1
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	0
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
DisplayPorts quantity	1

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	7.9 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-172 - 172°
Tilt adjustment	Yes
Tilt angle range	0 - 30°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages	9
LED indicators	Yes

Power

Specification	Value
Power consumption (typical)	52 W
Power consumption (max)	105 W
Power consumption (PowerSave)	1.6 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Weight & dimensions

Specification	Value
Width (with stand)	376 mm
Depth (with stand)	245.5 mm
Height (with stand)	599 mm
Weight (with stand)	10.2 kg
Width (without stand)	376 mm
Depth (without stand)	98 mm
Height (without stand)	505 mm
Weight (without stand)	7.5 kg

Packaging data

Specification	Value
User Guide on CD-ROM	Yes

Packaging content

Specification	Value
Cables included	AC, DVI, DisplayPort, USB

Other features

Specification	Value
Light sensor	Yes
Power management	Yes
Compliance industry standards	RoHS, China RoHS
Certification	EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, RCM, WEEE, CCC, EAC
Supplied AC adapter type	LED

Thin Client

Specification	Value
Thin client installed	No
