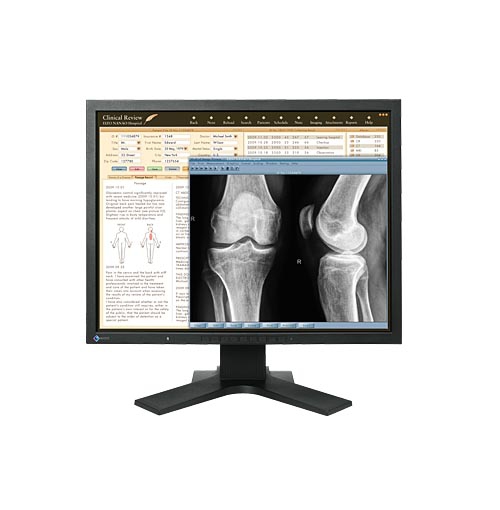

RadiForce MX210

Model RadiForce MX210Part no. MX210EAN 4995047032724

63 specifications Checked today

Display54.1 cm (21.3")
Resolution1600 x 1200 pixels
ColourBlack
Built-in speaker(s)No
Market positioningMedical
USB hub version2.0

See all specifications

Overview

Display: 54.1 cm (21.3")
Resolution: 1600 x 1200 pixels
Colour: Black
Built-in speaker(s): No
Market positioning: Medical
USB hub version: 2.0

Brand: EIZO
Category: Monitor
Model: RadiForce MX210
Part number: MX210
EAN / UPC: 4995047032724
Also known as: EIZO RadiForce MX210 computer monitor 54.1 cm (21.3") 1600 x 1200 pixels Black

Specifications

63 specifications in 11 groups

Display

Specification	Value
Display diagonal	54.1 cm (21.3")
Display resolution	1600 x 1200 pixels
Native aspect ratio	4:3
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Supported graphics resolutions	1600 x 1200 (UXGA)
Aspect ratio	4:3
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.270 x 0.270 mm
Horizontal scan range	24 - 80 kHz
Vertical scan range	49 - 76 Hz
Viewable size, horizontal	43.2 cm
Viewable size, vertical	32.4 cm
Viewable size diagonal	54 cm
Digital horizontal frequency	31 - 76 kHz
Digital vertical frequency	59 - 61 Hz
3D	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Medical
Product colour	Black

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	1
DVI-I ports quantity	1

Network

Specification	Value
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Adjustable height (max)	9 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivel angle range	-35 - 35°
Tilt angle range	-40 - 40°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese, Swedish
Number of OSD languages	7
LED indicators	Power

Power

Specification	Value
Power consumption (typical)	70 W
Power consumption (standby)	2 W
AC input voltage	100 - 240 V
AC input frequency	60 Hz

Weight & dimensions

Specification	Value
Width (with stand)	465 mm
Depth (with stand)	208.5 mm
Height (with stand)	453 mm
Weight (with stand)	9.7 kg
Width (without stand)	465 mm
Depth (without stand)	64 mm
Height (without stand)	361 mm
Weight (without stand)	6.7 kg

Packaging content

Specification	Value
Cables included	AC, DVI, USB
Quick start guide	Yes
Manual	Yes

Other features

Specification	Value
TV tuner integrated	No
Safety	CE, RoHS
Mean time between failures (MTBF)	30000 h
Ethernet LAN (RJ-45) ports	0
Certification	EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, ICES-003-B, C-tick,WEEE, CCC, GOST-R

Thin Client

Specification	Value
Thin client installed	No
