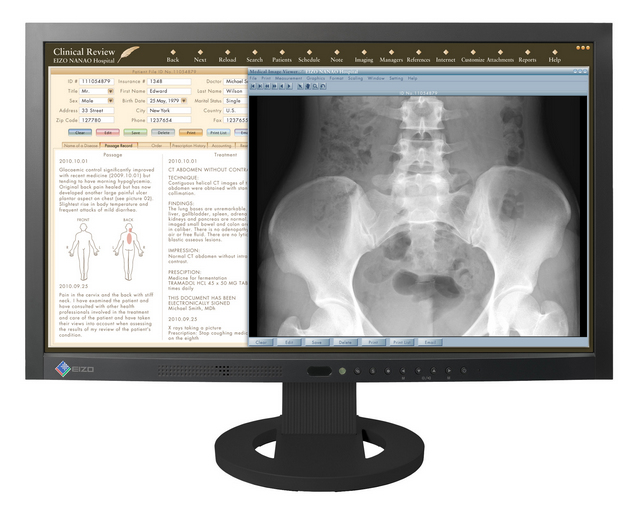

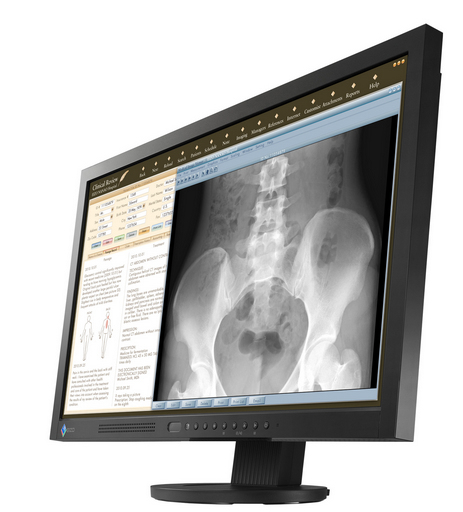

EIZO RadiForce MS230W 23"

RadiForce MS230W 23"

Model RadiForce MS230W 23"Part no. MS230W-BKEAN 690592031294

49 specifications Checked today

Display58.4 cm (23")
Resolution1920 x 1080 pixels
ColourBlack
Built-in speaker(s)No
Market positioningMedical
USB Type-A downstream ports quantity0

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Colour: Black
Built-in speaker(s): No
Market positioning: Medical
USB Type-A downstream ports quantity: 0

Brand: EIZO
Category: Monitor
Model: RadiForce MS230W 23"
Part number: MS230W-BK
EAN / UPC: 690592031294, 4995047038269
Also known as: EIZO RadiForce MS230W 23" computer monitor 58.4 cm (23") 1920 x 1080 pixels Full HD Black

Specifications

49 specifications in 9 groups

Display

Specification	Value
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Touchscreen	No
HD type	Full HD
Display brightness (typical)	300 cd/m²
Response time	7 ms
Supported graphics resolutions	1920 x 1080 (HD 1080)
Aspect ratio	16:9
Contrast ratio (typical)	3000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.2655 x 0.2655 mm
Horizontal scan range	31 - 81 kHz
Vertical scan range	55 - 76 Hz
Digital horizontal frequency	31 - 68 kHz
Digital vertical frequency	59 - 61 Hz
3D	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Medical
Product colour	Black

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	1

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish

Power

Specification	Value
Power consumption (typical)	45 W
Power consumption (standby)	1 W
Power consumption (PowerSave)	1 W
AC input frequency	50 - 60 Hz

Weight & dimensions

Specification	Value
Width (with stand)	547 mm
Depth (with stand)	216 mm
Height (with stand)	517.8 mm
Weight (with stand)	7.1 kg
Width (without stand)	547 mm
Depth (without stand)	47.5 mm
Height (without stand)	332 mm
Weight (without stand)	4.3 kg

Other features

Specification	Value
TV tuner integrated	No
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
