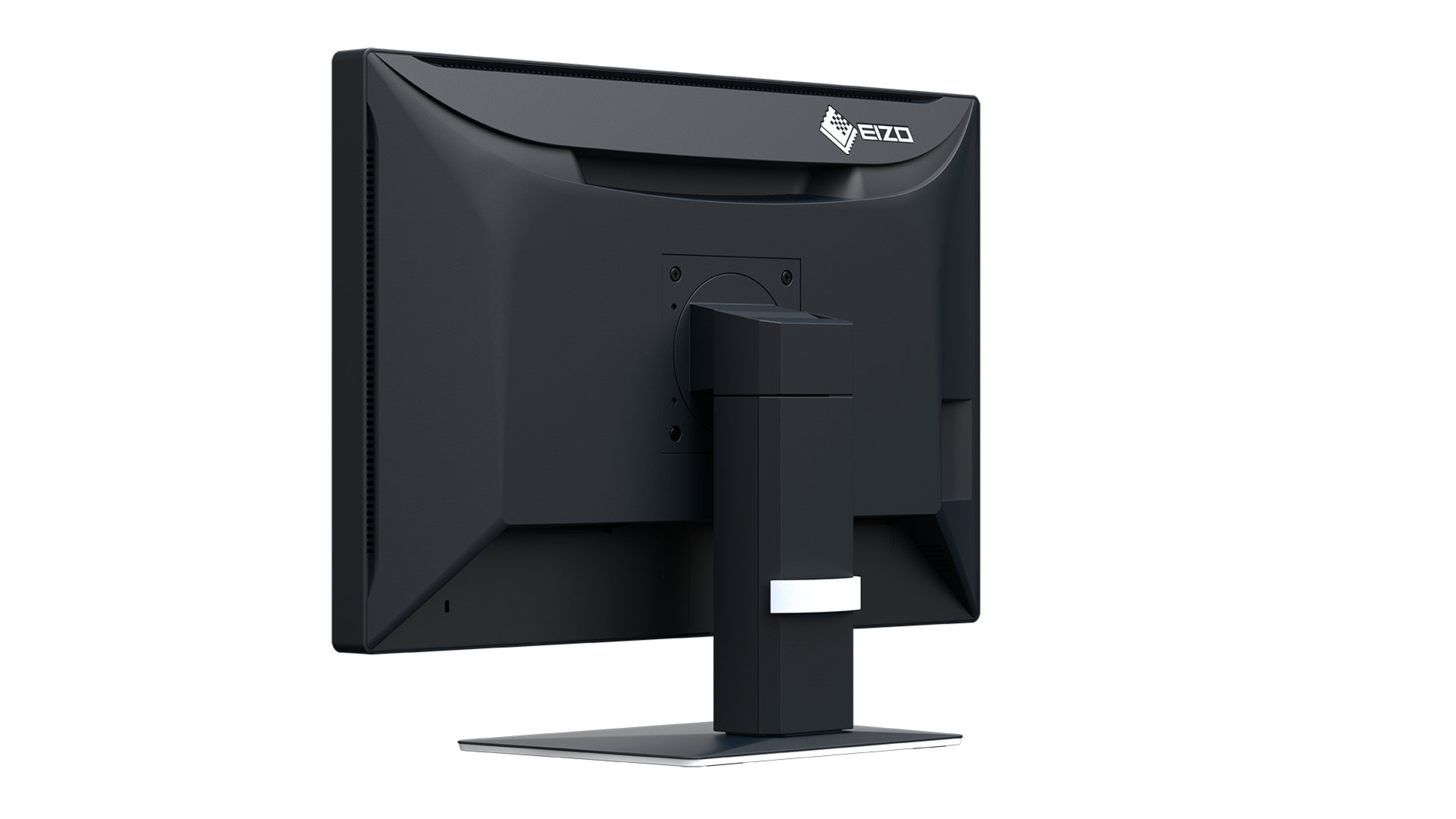

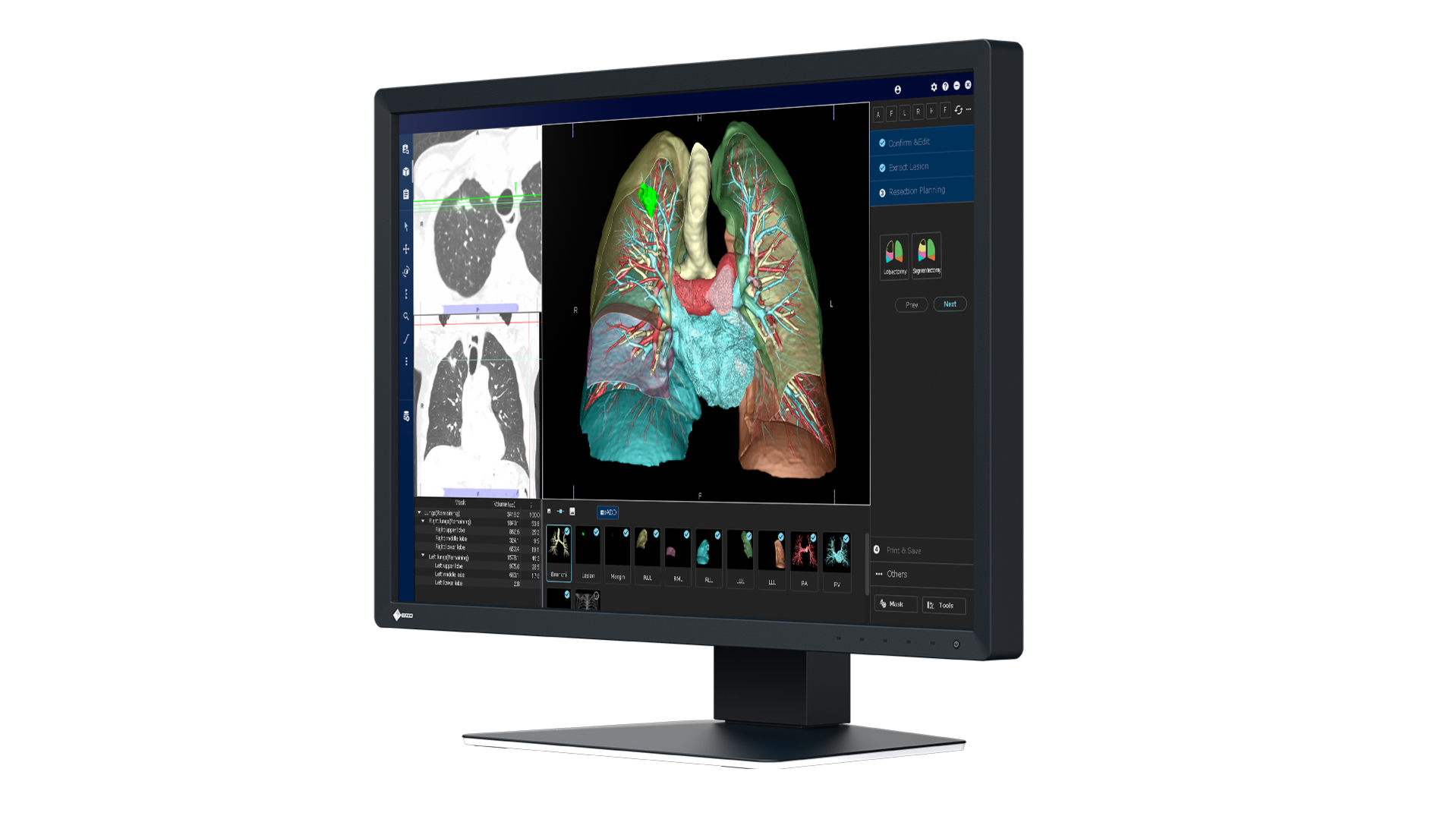

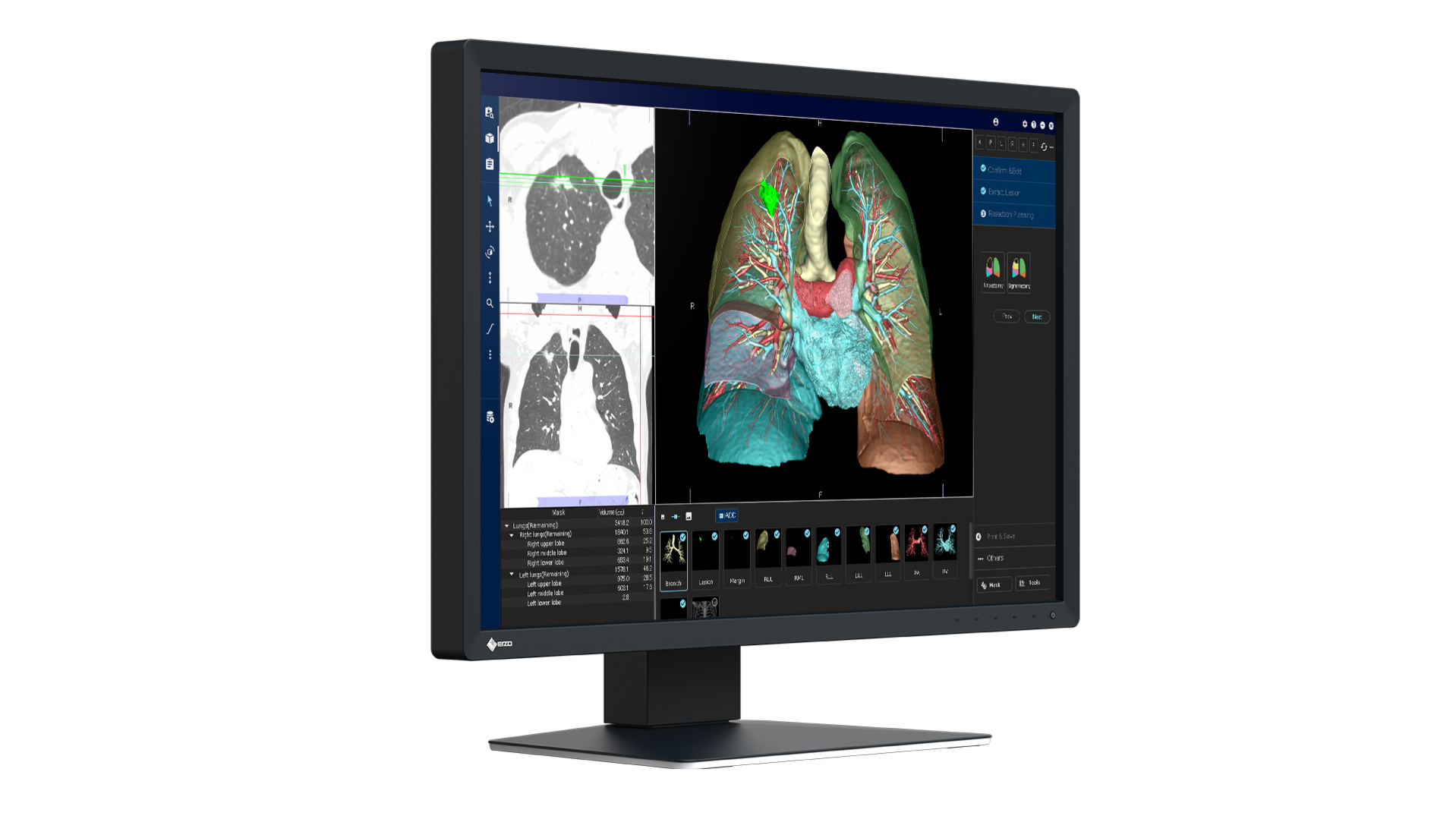

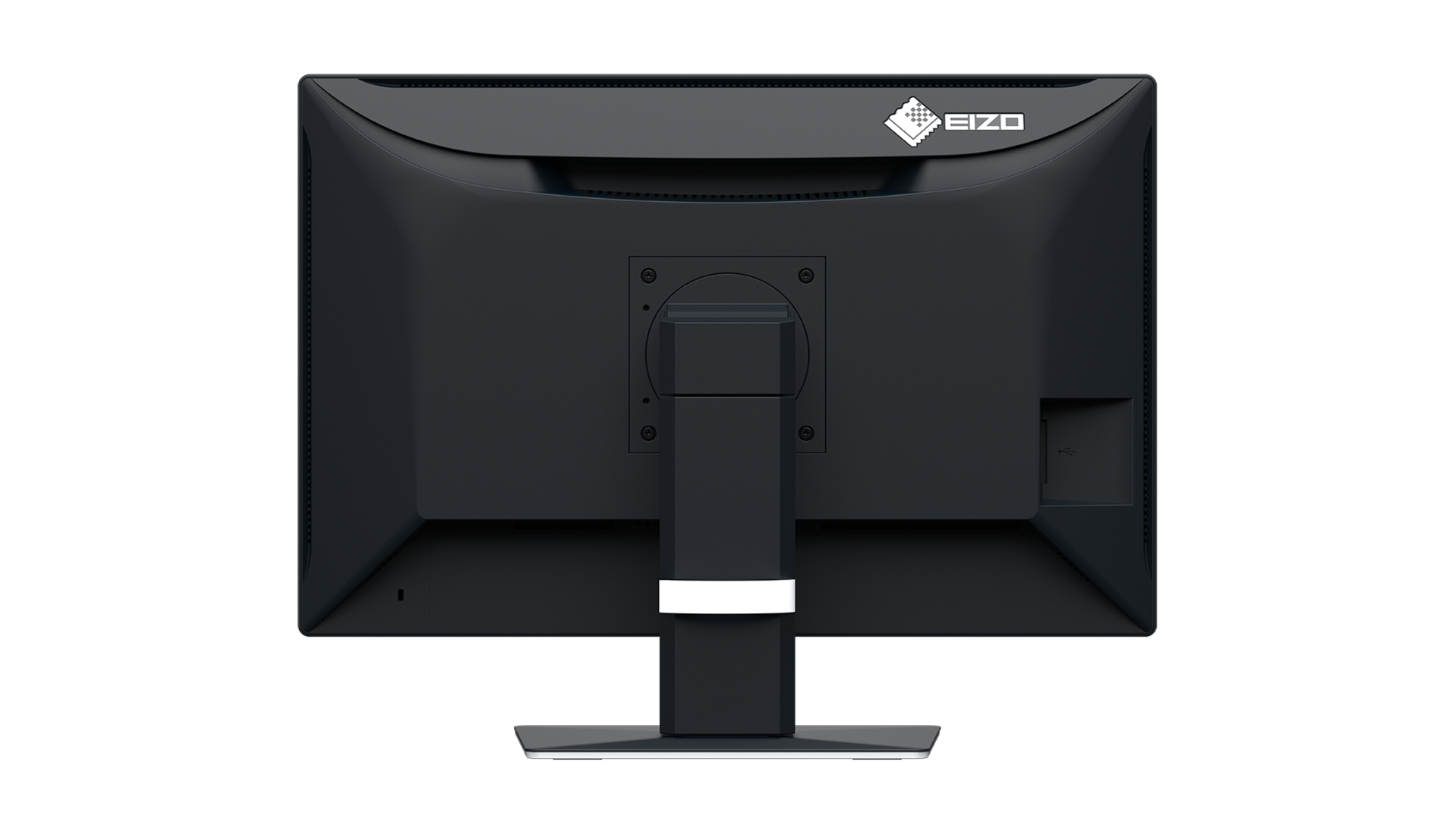

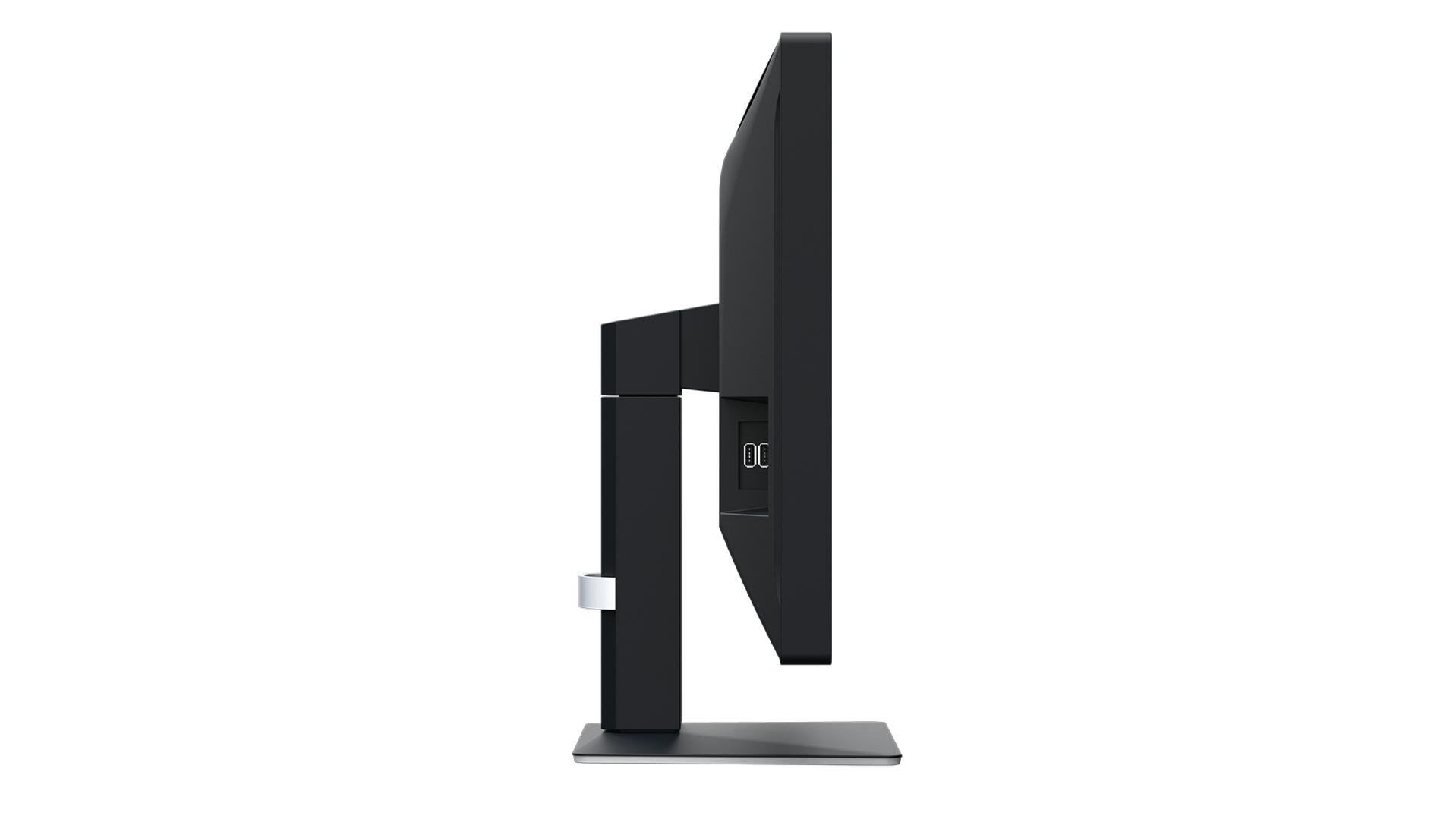

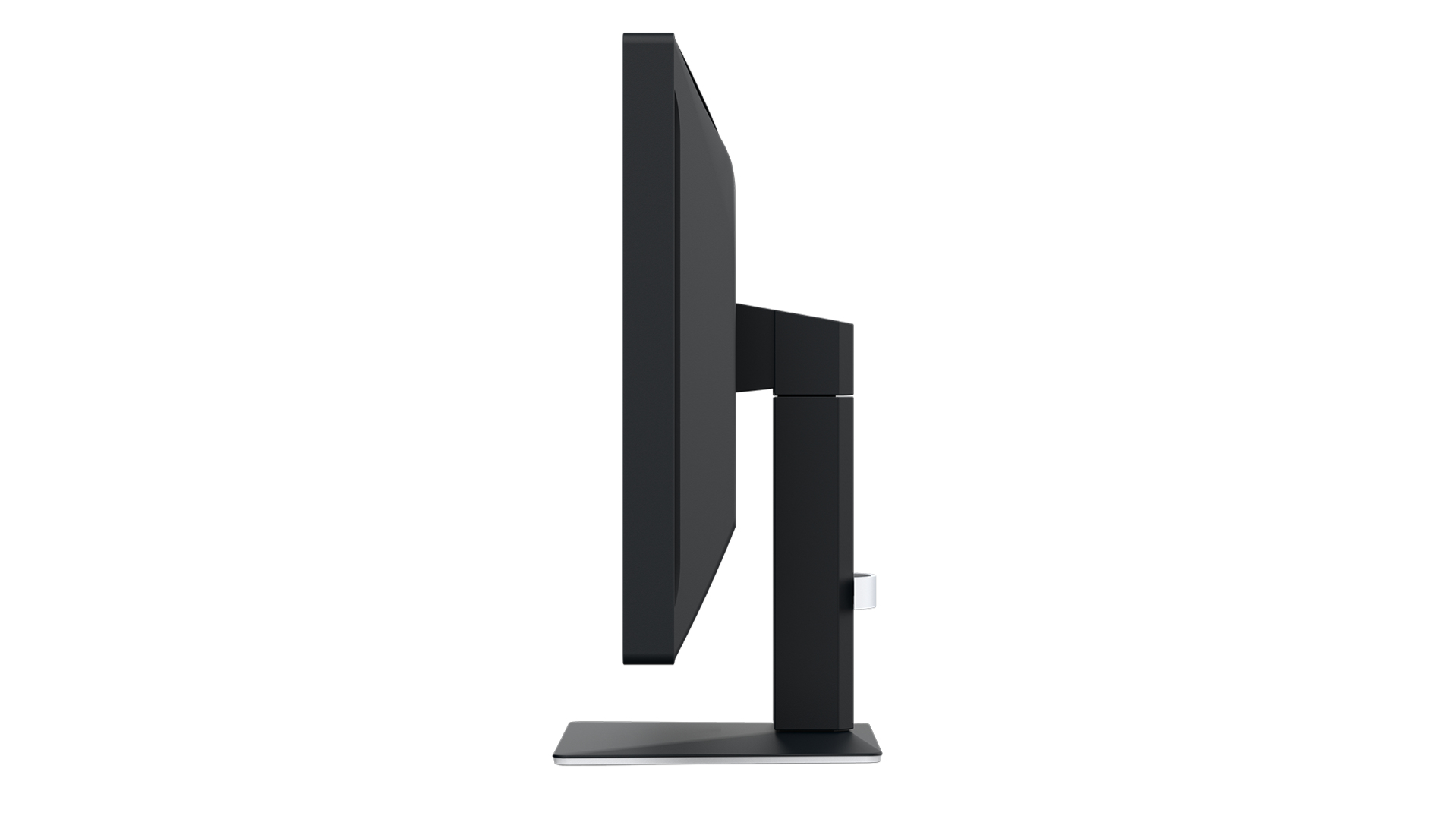

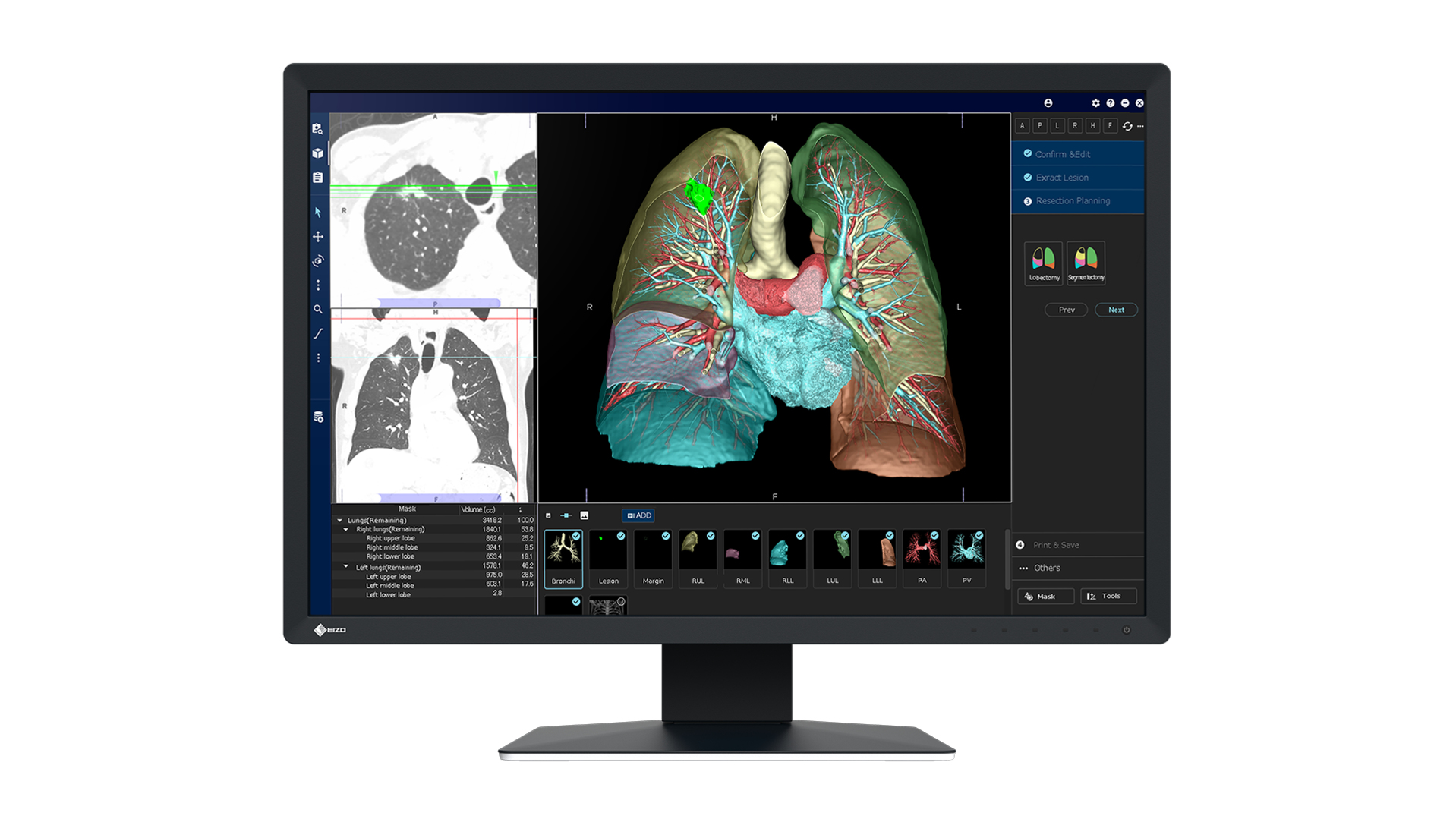

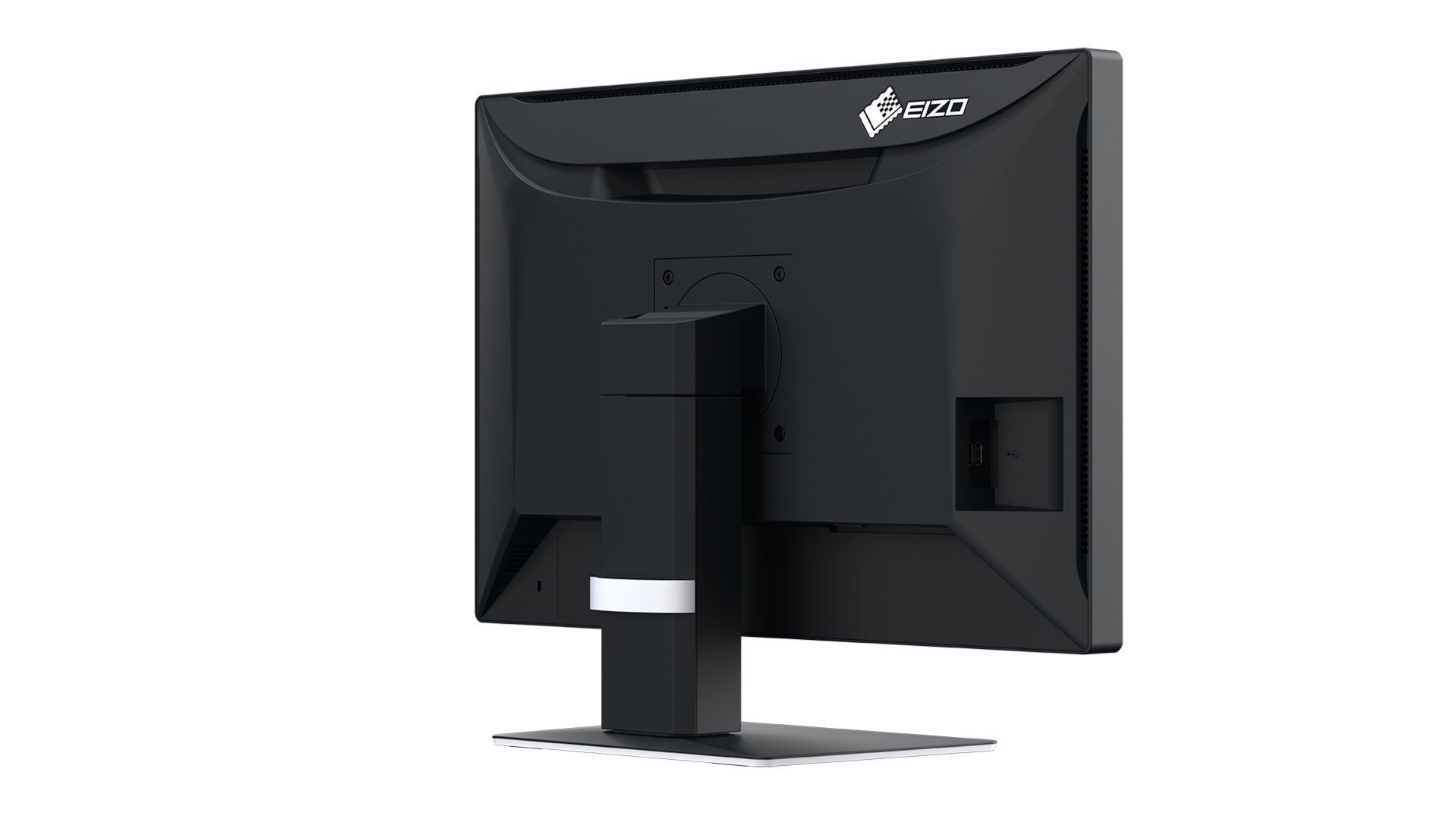

RadiForce MX243W computer monitor
61.2 cm (24.1") 1920 x 1200 pixels WUXGA LCD Black
Model MX243WEAN 4995047063933
56 specifications Checked today
- Display61.2 cm (24.1")
- Resolution1920 x 1200 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- Market positioningMedical
- Built-in USB hubYes
Overview
- Display
- 61.2 cm (24.1")
- Resolution
- 1920 x 1200 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- Market positioning
- Medical
- Built-in USB hub
- Yes
- Brand
- EIZO
- Category
- Monitor
- Model
- MX243W
- Part number
- MX243W
- EAN / UPC
- 4995047063933
- Also known as
- EIZO RadiForce MX243W computer monitor 61.2 cm (24.1") 1920 x 1200 pixels WUXGA LCD Black
Specifications
56 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61.2 cm (24.1") |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| Backlight type | LED |
| Display brightness (typical) | 410 cd/m² |
| Response time | 22 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1350:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.27 x 0.27 mm |
| Horizontal scan range | 31 - 76 kHz |
| Vertical scan range | 59 - 61 Hz |
| Viewable size, horizontal | 51.8 cm |
| Viewable size, vertical | 32.4 cm |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Medical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB upstream port type | USB Type-B |
| Number of USB Type-B upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| DVI-D ports quantity | 1 |
| HDMI | No |
| DisplayPorts quantity | 2 |
| Headphone out | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | Yes |
| Adjustable height (max) | 9 cm |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 30° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 26 W |
| Power consumption (standby) | 0.6 W |
| Power consumption (max) | 56 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 552 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 431 mm |
| Weight (with stand) | 7.8 kg |
| Width (without stand) | 552 mm |
| Depth (without stand) | 64.5 mm |
| Height (without stand) | 361.6 mm |
| Weight (without stand) | 4.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DisplayPort, USB |
Other features
| Specification | Value |
|---|---|
| Certification | CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC |
