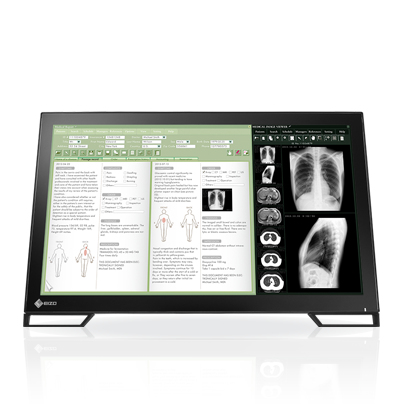

MS235WT computer monitor
58.4 cm (23") 1920 x 1080 pixels Full HD LCD Touchscreen Black
Model MS235WTPart no. MS235WT-BKEAN 690592036282
52 specifications Checked today
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- USB upstream port typeUSB Type-B
- VESA mountingYes
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- USB upstream port type
- USB Type-B
- VESA mounting
- Yes
- Brand
- EIZO
- Category
- Monitor
- Model
- MS235WT
- Part number
- MS235WT-BK
- EAN / UPC
- 690592036282, 4995047043256
- Also known as
- EIZO MS235WT computer monitor 58.4 cm (23") 1920 x 1080 pixels Full HD LCD Touchscreen Black
Specifications
52 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | TFT |
| LED backlight | Yes |
| Touchscreen technology | Capacitive |
| Display brightness | 260 cd/m² |
| Response time | 6 ms |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.2652 x 0.2652 mm |
| Horizontal scan range | 31 - 81 kHz |
| Vertical scan range | 55 - 76 Hz |
| Viewable size diagonal | 58.4 cm |
| Digital horizontal frequency | 31 - 68 kHz |
| Digital vertical frequency | 59 - 61 Hz |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish |
| Number of OSD languages | 9 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 21 W |
| Power consumption (PowerSave) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight (with stand) | 6.6 kg |
| Width (without stand) | 556.7 mm |
| Height (without stand) | 360.7 mm |
| Weight (without stand) | 6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Audio (3.5mm), DisplayPort, DVI, USB |
Other features
| Specification | Value |
|---|---|
| Display viewable area (HxV) | 509.1 x 286.4 mm |
| Certification | CE, EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, ICES-003-B, C-tick, RoHS, China RoHS, WEEE, CCC, GOST-R |
| Supplied AC adapter type | AC |
