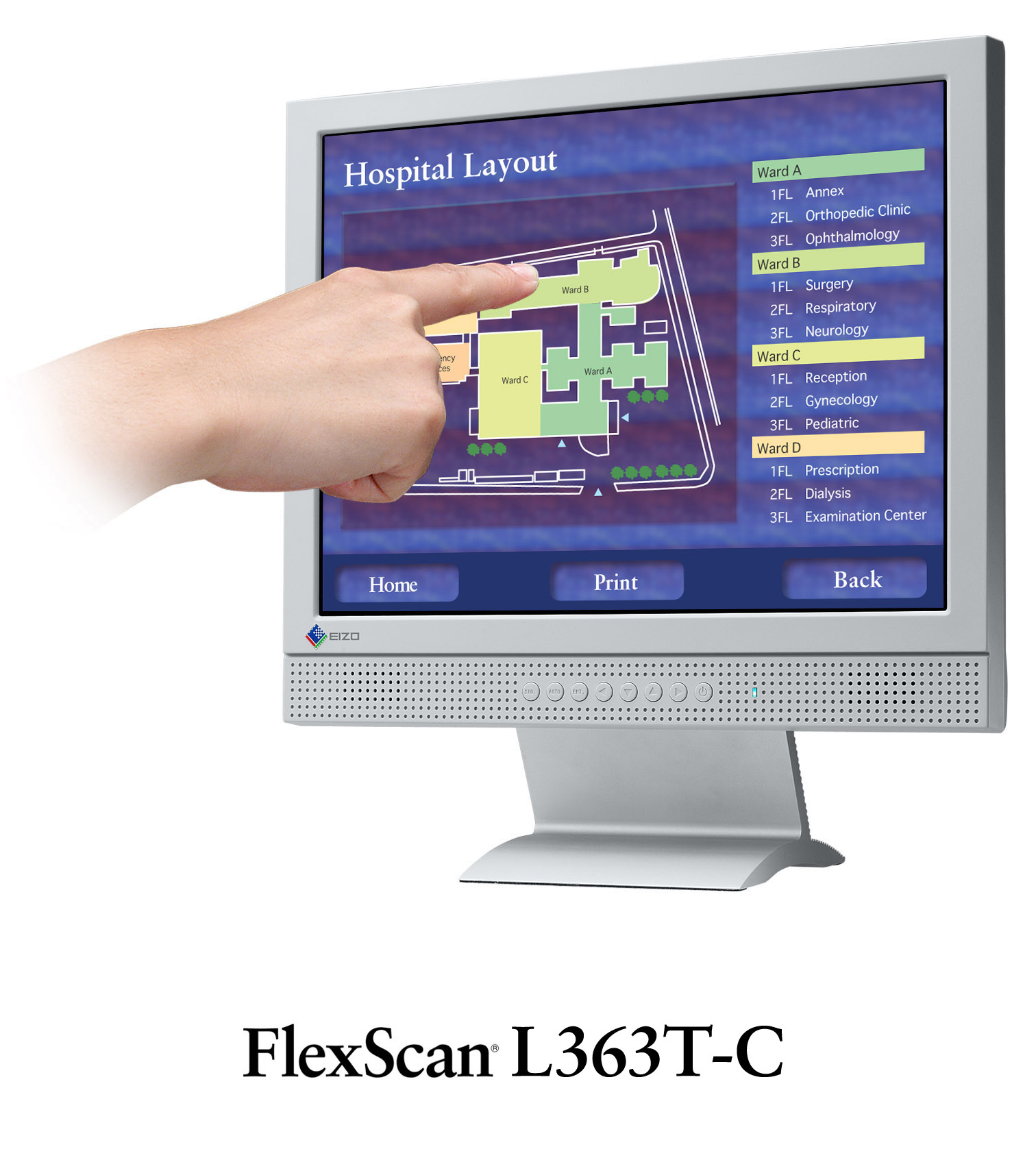

L363T-C computer monitor

38.1 cm (15") 1024 x 768 pixels LCD Touchscreen Tabletop Black, Grey

Model L363T-CEAN 4995047011705

70 specifications Checked today

Display38.1 cm (15")
Resolution1024 x 768 pixels
ColourBlack, Grey
NVIDIA G-SYNCNo
USB upstream port typeUSB Type-B
Panel mounting interface75 x 75 mm

See all specifications

Overview

Display: 38.1 cm (15")
Resolution: 1024 x 768 pixels
Colour: Black, Grey
NVIDIA G-SYNC: No
USB upstream port type: USB Type-B
Panel mounting interface: 75 x 75 mm

Brand: EIZO
Category: Monitor
Model: L363T-C
Part number: L363T-C
EAN / UPC: 4995047011705
Also known as: EIZO L363T-C computer monitor 38.1 cm (15") 1024 x 768 pixels LCD Touchscreen Tabletop Black, Grey

Specifications

70 specifications in 12 groups

Display

Specification	Value
Display diagonal	38.1 cm (15")
Display resolution	1024 x 768 pixels
Display technology	LCD
Touchscreen	Yes
Touchscreen type	Tabletop
Touchscreen technology	Capacitive
Display brightness	195 cd/m²
Response time	55 ms
Screen shape	Flat
Aspect ratio	4:3
Contrast ratio (typical)	450:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.297 x 0.297 mm
Horizontal scan range	24 - 61 kHz
Vertical scan range	55 - 76 Hz
Digital horizontal frequency	31 - 49 kHz
Digital vertical frequency	59 - 61 Hz
Display diagonal (metric)	38 cm
3D	No
Separate H/V sync	Yes

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Number of speakers	2
RMS rated power	2 W

Design

Specification	Value
Product colour	Black, Grey

Ports & interfaces

Specification	Value
USB upstream port type	USB Type-B
Number of upstream ports	1
VGA (D-Sub) ports quantity	1
DVI port	No
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	0
Audio input	1
Composite video in	0
SCART ports quantity	0
Component video (YPbPr/YCbCr) in	0
RS-232 ports	0
S-Video inputs quantity	0

Ergonomics

Specification	Value
Panel mounting interface	75 x 75 mm
Wall mountable	Yes
Tilt angle range	-3 - 30°
On Screen Display (OSD)	Yes

Power

Specification	Value
Power consumption (typical)	40 W
Power consumption (standby)	1 W
Power consumption (PowerSave)	2 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	30 - 80%

Weight & dimensions

Specification	Value
Dimensions (W x D x H) with stand	346 x 369 x 157 mm
Width (with stand)	346 mm
Depth (with stand)	369 mm
Height (with stand)	157 mm
Weight (with stand)	5 kg
Width (without stand)	346 mm
Depth (without stand)	54.5 mm
Height (without stand)	301 mm
Weight (without stand)	4.1 kg

Packaging data

Specification	Value
Quantity per pack	1 pc(s)

Packaging content

Specification	Value
Cables included	AC, Audio (3.5mm), USB, VGA

Other features

Specification	Value
Compatible operating systems	Windows 7 (32-bit, 64-bit) / Vista (32-bit) / XP (32-bit) / 2000
Dimensions (WxDxH)	346 x 301 x 54.5 mm
HD-Ready	No
Ethernet LAN (RJ-45) ports	0
Certification	TUV/GM (EN60601-1), c-Tick, CE, CB (IEC60601-1), cTUVus (UL60601-1, CSA C22.2 No. 601-1), FCC-B, ICES-003-B, VCCI-B, CCC
Supplied AC adapter type	IPS, N
