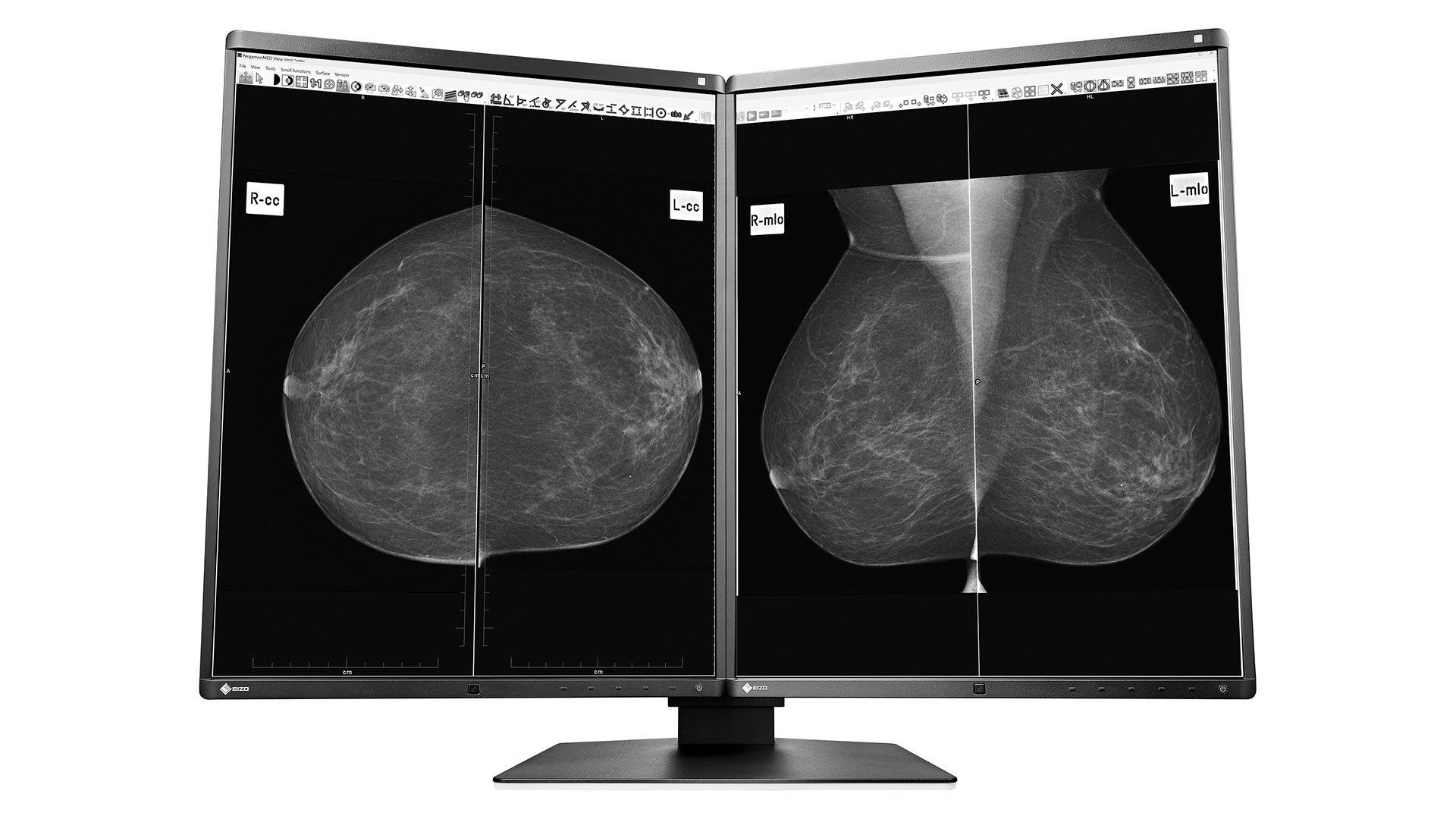

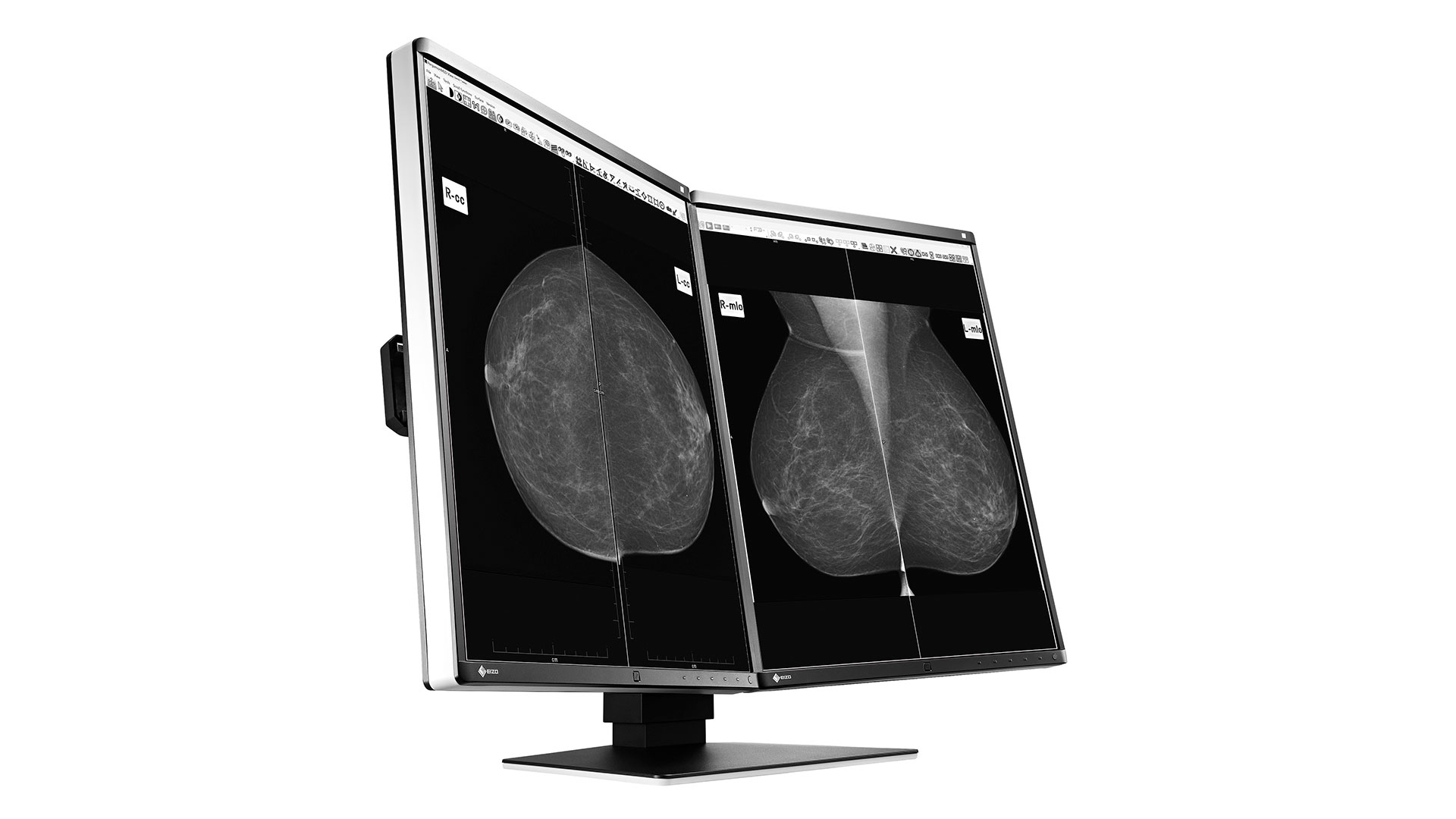

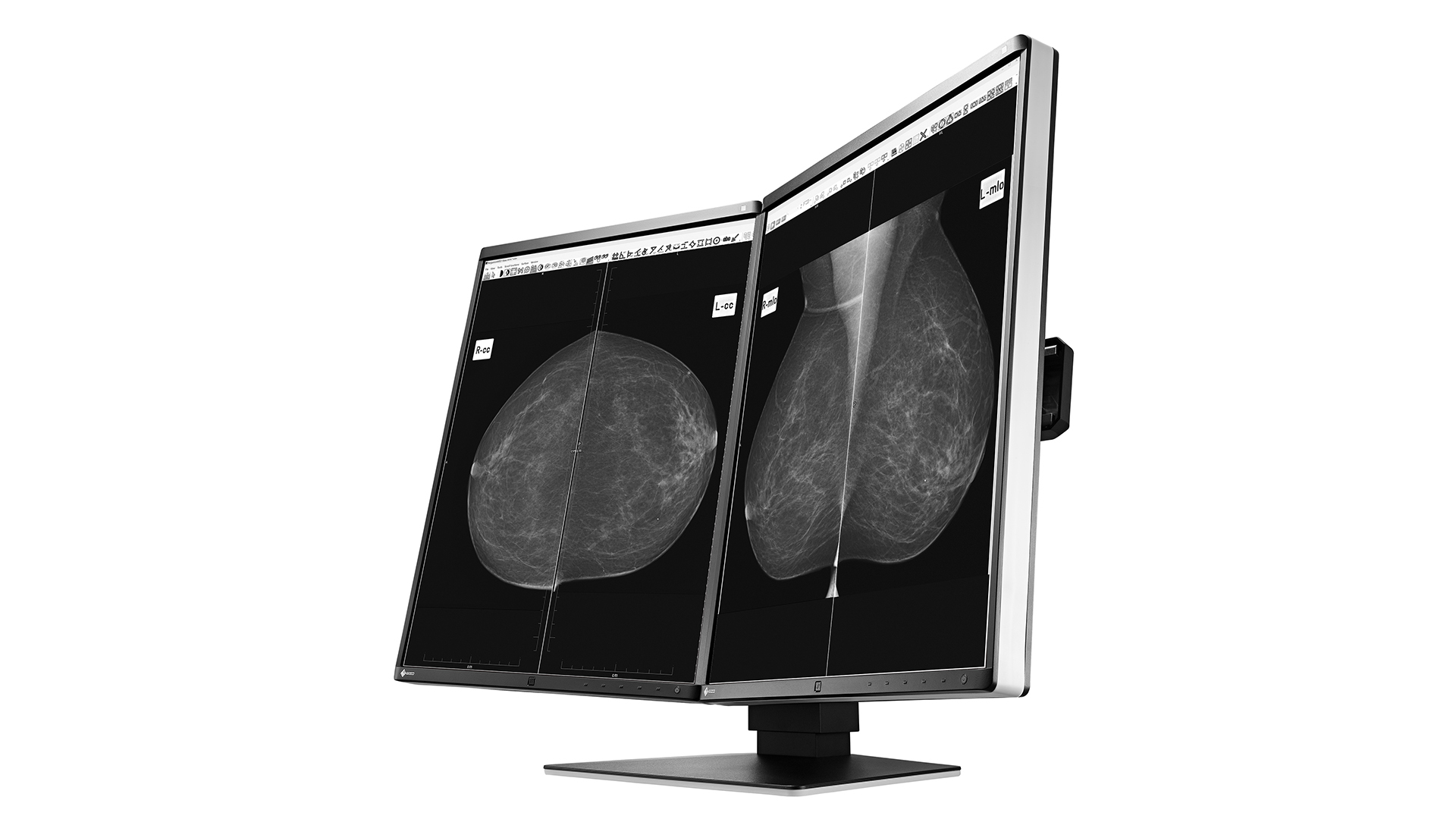

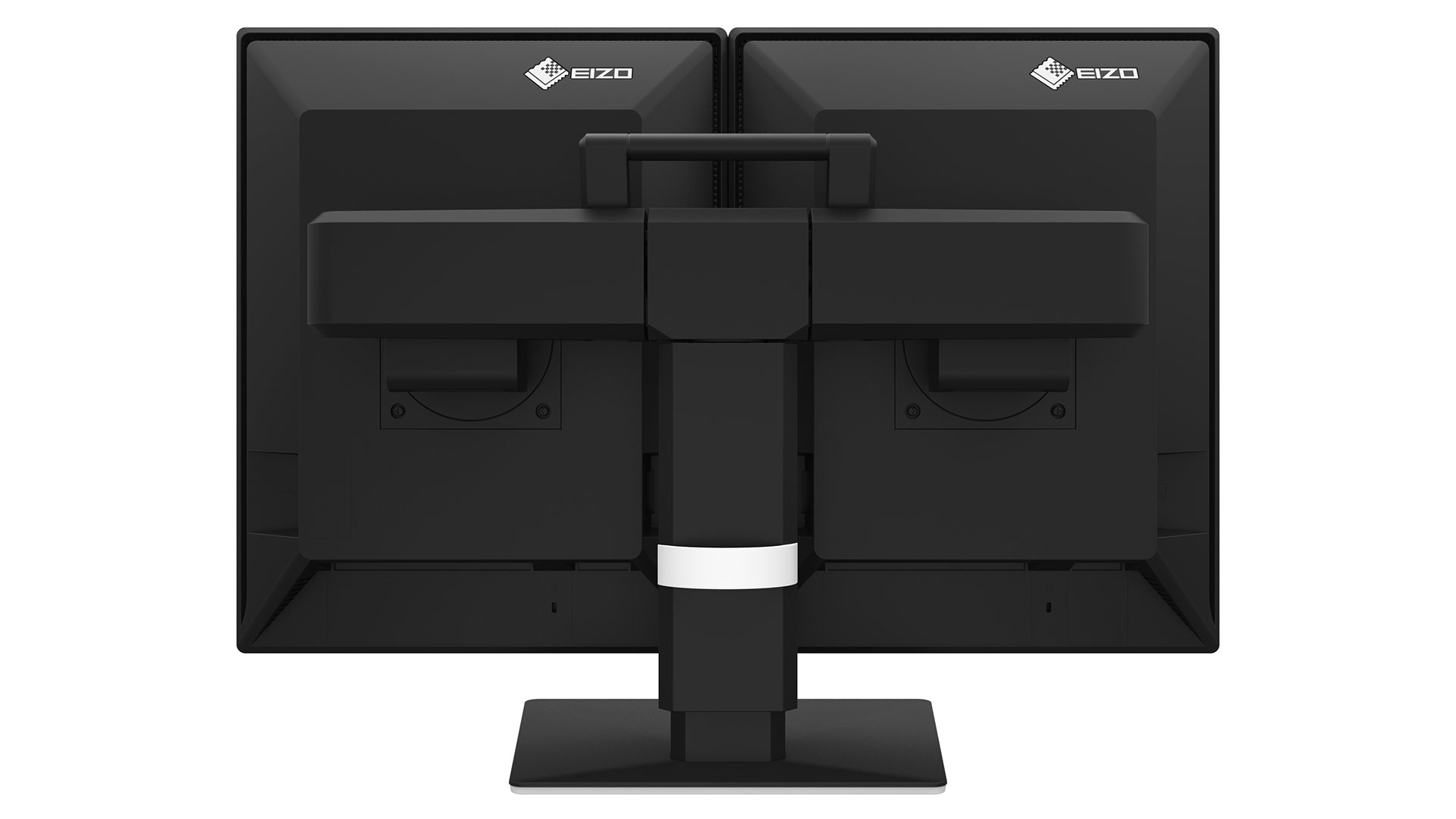

RadiForce GX560-MD computer monitor

54.1 cm (21.3") 2048 x 2560 pixels LCD Black

Model GX560-MDPart no. GX560MD

59 specifications Checked today

Display54.1 cm (21.3")
Resolution2048 x 2560 pixels
ColourBlack
NVIDIA G-SYNCNo
Market positioningMedical
Built-in USB hubYes

See all specifications

Overview

Display: 54.1 cm (21.3")
Resolution: 2048 x 2560 pixels
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Medical
Built-in USB hub: Yes

Brand: EIZO
Category: Monitor
Model: GX560-MD
Part number: GX560MD
Also known as: EIZO RadiForce GX560-MD computer monitor 54.1 cm (21.3") 2048 x 2560 pixels LCD Black

Specifications

59 specifications in 10 groups

Display

Specification	Value
Display diagonal	54.1 cm (21.3")
Display resolution	2048 x 2560 pixels
Native aspect ratio	4:5
Display technology	LCD
Touchscreen	No
Panel type	IPS
Backlight type	LED
Display brightness (typical)	2500 cd/m²
Screen shape	Flat
Contrast ratio (typical)	1700:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	Monochrome
Pixel pitch	0.165 x 0.165 mm
Viewable size, horizontal	33.8 cm
Viewable size, vertical	42.2 cm
Digital horizontal frequency	31 - 135 kHz
Digital vertical frequency	23 - 61 Hz
Display diagonal (metric)	54.1 cm
Colour depth	14 bit

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Medical
Product colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB upstream port type	USB Type-B
Number of USB Type-B upstream ports quantity	2
USB Type-A downstream ports quantity	2
DVI port	Yes
DVI-D ports quantity	2
HDMI	No
DisplayPorts quantity	4

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	Yes
Adjustable height (max)	9 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-70 - 70°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Swedish

Power

Specification	Value
Power consumption (typical)	28 W
Power consumption (standby)	1 W
Power consumption (max)	79 W
Power consumption (off)	0 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Weight & dimensions

Specification	Value
Width (with stand)	709 mm
Depth (with stand)	225 mm
Height (with stand)	476 mm
Weight (with stand)	17.1 kg
Weight (without stand)	8 kg

Packaging content

Specification	Value
Cables included	AC, DisplayPort, USB

Other features

Specification	Value
Certification	CE (Medical Device Directive), EN 60601-1, ANSI/AAMI ES60601-1, CSA C22.2 Nr. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
