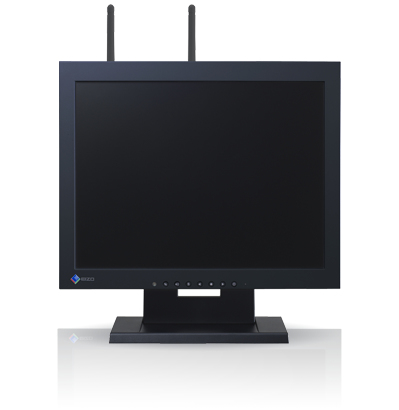

FDX1502N computer monitor
38.1 cm (15") 1024 x 768 pixels LED Black
Model FDX1502N
88 specifications Checked today
- Display38.1 cm (15")
- Resolution1024 x 768 pixels
- ColourBlack
- Built-in speaker(s)Yes
- USB hub version2.0
- Power consumption (typical)31 W
Overview
- Display
- 38.1 cm (15")
- Resolution
- 1024 x 768 pixels
- Colour
- Black
- Built-in speaker(s)
- Yes
- USB hub version
- 2.0
- Power consumption (typical)
- 31 W
- Brand
- EIZO
- Category
- Monitor
- Model
- FDX1502N
- Part number
- FDX1502N
- Also known as
- EIZO FDX1502N computer monitor 38.1 cm (15") 1024 x 768 pixels LED Black
Specifications
88 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Touchscreen | No |
| Panel type | TN+Film |
| Display brightness (typical) | 400 cd/m² |
| Response time | 8 ms |
| Supported graphics resolutions | 1024 x 768 (XGA) |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 140° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 24.8 - 60.1 kHz |
| Vertical scan range | 55 - 75.1 Hz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Viewable size diagonal | 38 cm |
| Colour gamut standard | sRGB |
| 3D | No |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vi |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 1 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Audio input | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDCP | No |
| AC (power) in | Yes |
| Composite video in | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Component video (YPbPr/YCbCr) out | 0 |
| S-Video inputs quantity | 0 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bluetooth | No |
| Ethernet LAN | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | No |
| Height adjustment | No |
| Pivot | No |
| Swivelling | No |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 30° |
| Picture-in-Picture | No |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, French, Italian, Japanese, Swedish |
| Number of OSD languages | 9 |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 31 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (PowerSave) | 0.8 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 346 mm |
| Depth (with stand) | 157 mm |
| Height (with stand) | 349 mm |
| Weight (with stand) | 5.6 kg |
| Width (without stand) | 346 mm |
| Depth (without stand) | 69 mm |
| Height (without stand) | 280 mm |
| Weight (without stand) | 3.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| Built-in subwoofer | No |
| Screen format adjustments | 4:3 |
| TV tuner integrated | No |
| Volume control | Digital |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | CE, RoHS, WEEE, cTUVus, CB, FCC-A, Canadian ICES-003-A, RSS, VCCI-A, RoHS, JATE, TELEC, R&TTE, FCC/IC |
| Supplied AC adapter type | LCD |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
