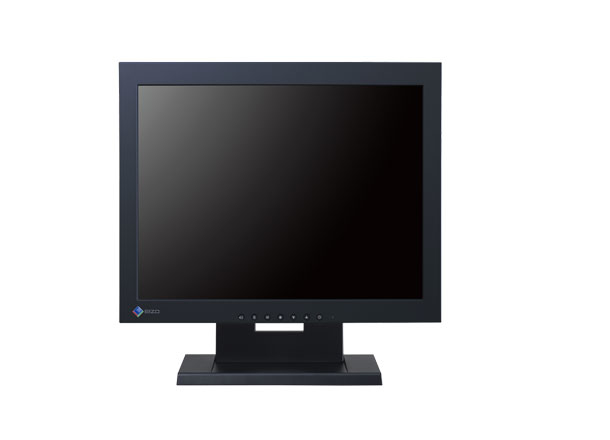

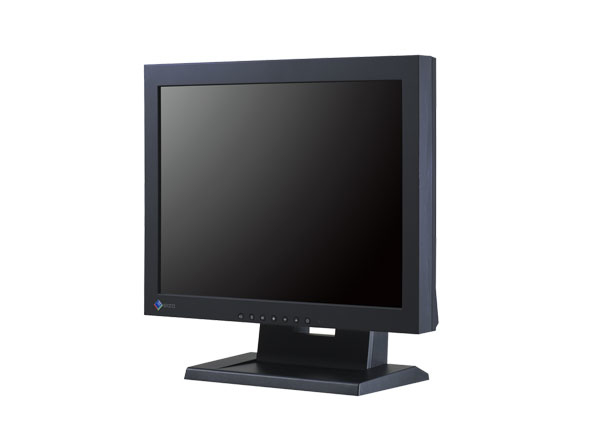

EIZO FDX1501T-A computer monitor

FDX1501T-A computer monitor

38.1 cm (15") 1024 x 768 pixels LCD Touchscreen Kiosk Black

Model FDX1501T-APart no. FDX1501T-ABKEAN 4995047043287

52 specifications Checked today

Display38.1 cm (15")
Resolution1024 x 768 pixels
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes
VGA (D-Sub) ports quantity1

See all specifications

Overview

Display: 38.1 cm (15")
Resolution: 1024 x 768 pixels
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes
VGA (D-Sub) ports quantity: 1

Brand: EIZO
Category: Monitor
Model: FDX1501T-A
Part numbers: FDX1501T-ABK, FDX1501T-A-P-BK
EAN / UPC: 4995047043287, 4995047046547, 4995047046585
Also known as: EIZO FDX1501T-A computer monitor 38.1 cm (15") 1024 x 768 pixels LCD Touchscreen Kiosk Black

Specifications

52 specifications in 10 groups

Display

Specification	Value
Display diagonal	38.1 cm (15")
Display resolution	1024 x 768 pixels
Display technology	LCD
Touchscreen	Yes
Touchscreen type	Kiosk
Touchscreen technology	Resistive
Display brightness	320 cd/m²
Response time	8 ms
Screen shape	Flat
Aspect ratio	4:3
Contrast ratio (typical)	600:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.297 x 0.297 mm
Viewable size diagonal	38 cm
Digital horizontal frequency	31 - 49 kHz
Digital vertical frequency	59 - 61 Hz
Display diagonal (metric)	38 cm

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista
OmniTapps Multitouch compatibility	No

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	1 W
Built-in camera	No
Built-in microphone	Yes

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
Headphone outputs	1
HDCP	Yes

Ergonomics

Specification	Value
Tilt angle range	0 - 30°

Power

Specification	Value
Power consumption (typical)	6 W
Power consumption (standby)	0.5 W
Power consumption (max)	15 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Weight & dimensions

Specification	Value
Width (with stand)	346 mm
Depth (with stand)	157 mm
Height (with stand)	349 mm
Weight (with stand)	5.8 kg
Width (without stand)	346 mm
Depth (without stand)	69 mm
Height (without stand)	280 mm
Weight (without stand)	3.4 kg

Packaging content

Specification	Value
Cables included	Audio (3.5mm), USB, VGA

Other features

Specification	Value
Compliance certificates	RoHS
Display viewable area (HxV)	304.1 x 228 mm
Certification	CB, CE, CTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, CCC, RCM, WEEE, China RoHS, J-Moss Green mark Guideline
