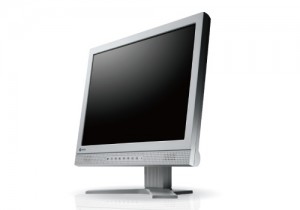

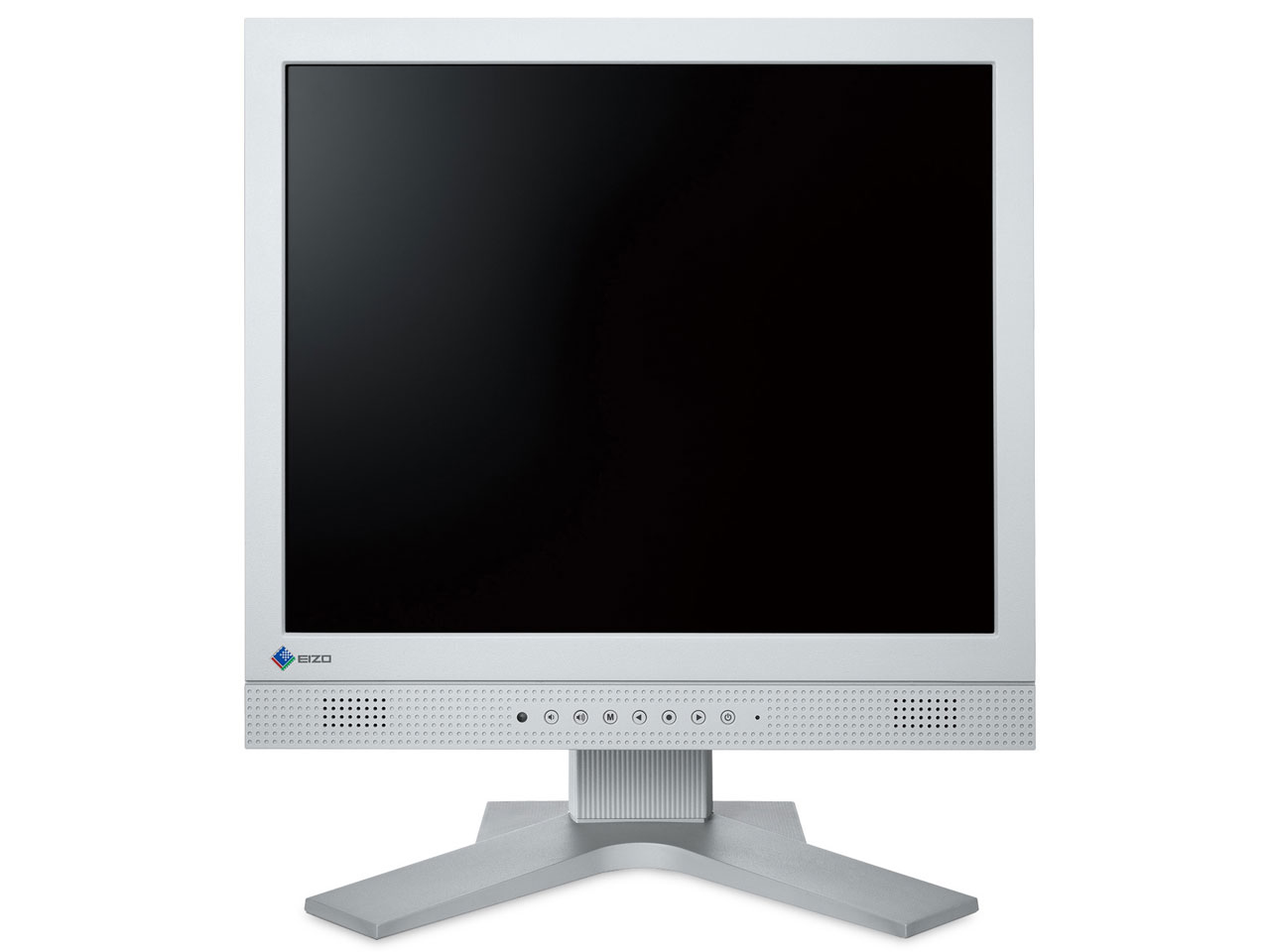

EIZO FDS1703 computer monitor

EIZO FDS1703 computer monitor

43.2 cm (17") 1280 x 1024 pixels LED Grey

Model FDS1703EAN 4995047042952

74 specifications Checked 3 days ago

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ColourGrey
Built-in speaker(s)Yes
USB Type-A downstream ports quantity0
Power consumption (standby)1 W

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Colour: Grey
Built-in speaker(s): Yes
USB Type-A downstream ports quantity: 0
Power consumption (standby): 1 W

Brand: EIZO
Category: Monitor
Model: FDS1703
Part numbers: FDS1703, 21432, 21431
EAN / UPC: 4995047042952
Also known as: EIZO FDS1703 computer monitor 43.2 cm (17") 1280 x 1024 pixels LED Grey

Specifications

74 specifications in 11 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
Panel type	TN+Film
Display brightness (typical)	350 cd/m²
Response time	30 ms
Supported graphics resolutions	1280 x 1024 (SXGA)
Aspect ratio	5:4
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160°
Viewing angle, vertical	140°
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	24.8 - 74.8 kHz
Vertical scan range	56.2 - 75.1 Hz
Viewable size, horizontal	33.8 cm
Viewable size, vertical	27 cm
Viewable size diagonal	43.2 cm
3D	No

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	1 W
Built-in camera	No

Design

Specification	Value
Product colour	Grey

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	No
DVI-D ports quantity	0
DVI-I ports quantity	0
HDMI ports quantity	0
Audio input	Yes
HDCP	No
AC (power) in	Yes
Composite video in	1
Component video (YPbPr/YCbCr) in	0

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	10 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-35 - 35°
Tilt adjustment	Yes
Tilt angle range	0 - 30°
On Screen Display (OSD)	Yes
Plug and Play	Yes

Power

Specification	Value
Power consumption (standby)	1 W
Power consumption (max)	36 W
Power consumption (PowerSave)	8 W
AC input voltage	100 - 120 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	380 mm
Depth (with stand)	205 mm
Height (with stand)	500 mm
Weight (with stand)	9 kg
Width (without stand)	380 mm
Depth (without stand)	58 mm
Height (without stand)	353 mm
Weight (without stand)	4.1 kg

Packaging content

Specification	Value
Cables included	AC
Manual	Yes

Other features

Specification	Value
On/off switch	Yes
Built-in subwoofer	No
TV tuner integrated	No
Volume control	Digital
Certification	C-Tick, CE, CB, cTUVus, FCC-A, Canadian ICES-003-A, TUV/S, VCCI-A, RoHS, WEEE, CCC, GOST-R, China RoHS
Supplied AC adapter type	LED

Thin Client

Specification	Value
Thin client installed	No
