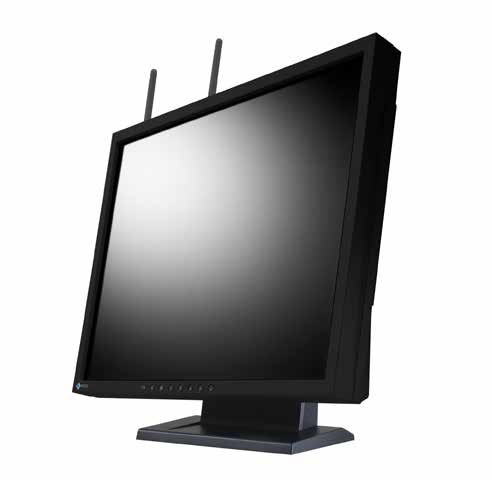

FDS1702N computer monitor

43.2 cm (17") 1280 x 1024 pixels HD LED Black

Model FDS1702NPart no. FDS1702N-BK

82 specifications Checked today

Overview

Brand: EIZO
Category: Monitor
Model: FDS1702N
Part numbers: FDS1702N-BK, FDS1702N-GY
Also known as: EIZO FDS1702N computer monitor 43.2 cm (17") 1280 x 1024 pixels HD LED Black

82 specifications in 13 groups

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
HD type	HD
Panel type	TN
Display brightness (typical)	250 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Aspect ratio	5:4
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	24.8 - 80 kHz
Vertical scan range	56 - 75.1 Hz
Viewable size, horizontal	33.8 cm
Viewable size, vertical	27 cm
Viewable size diagonal	43.2 cm
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista

Specification	Value
Product colour	Black
Feet colour	Black

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	1
DVI port	No
HDMI ports quantity	0
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
PC Audio in	Yes

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Tilt adjustment	Yes
Tilt angle range	0 - 30°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish
Number of OSD languages	9

Specification	Value
Power consumption (standby)	0.5 W
Power consumption (max)	41 W
Power consumption (PowerSave)	8 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%

Specification	Value
AC adapter included	Yes
TV tuner integrated	No
ECO mode	Yes
Security features	WEP（64/128), WPA-PSK (TKIP/AES), WPA2-PSK（AES)
Sleep timer	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Certification	CE, RoHS, WEEE, cTUVus, CB, FCC-A, Canadian ICES-003-A, RSS, VCCI-A
Supplied AC adapter type	LCD
