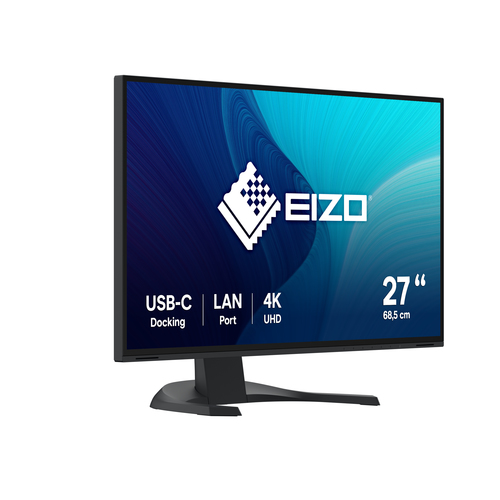

FlexScan EV2740X-BK computer monitor

68.6 cm (27") 3840 x 2160 pixels 4K Ultra HD LCD Black

Model EV2740X-BKEAN 690592058215

107 specifications Checked today

Display68.6 cm (27")
Resolution3840 x 2160 pixels
Energy classD
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 3840 x 2160 pixels
Energy class: D
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: EIZO
Category: Monitor
Model: EV2740X-BK
Part number: EV2740X-BK
EAN / UPC: 690592058215, 4995047065180
Also known as: EIZO FlexScan EV2740X-BK computer monitor 68.6 cm (27") 3840 x 2160 pixels 4K Ultra HD LCD Black

Specifications

107 specifications in 14 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	350 cd/m²
Response time	5 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	720 x 400, 1280 x 1024 (SXGA), 3840 x 2160, 800 x 600 (SVGA), 2560 x 1440, 1600 x 1200 (UXGA), 1024 x 768 (XGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Contrast ratio (typical)	2000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.155 x 0.155 mm
Pixel density	163 ppi
Viewable size, horizontal	59.7 cm
Viewable size, vertical	33.6 cm
Digital horizontal frequency	31 - 135 kHz
Digital vertical frequency	29 - 61 Hz
Display diagonal (metric)	68.5 cm
Colour gamut standard	sRGB

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No

Design

Specification	Value
Market positioning	Office
Product colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B, USB Type-C
Number of upstream ports	2
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	94 W
HDMI	Yes
HDMI ports quantity	2
DisplayPorts quantity	1
Headphone out	Yes
Headphone outputs	2
Headphone connectivity	3.5 mm
Built-in KVM switch	Yes
HDCP	Yes
HDCP version	1.4/2.3

Network

Specification	Value
Ethernet LAN	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	19.5 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-90 - 90°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Swedish

Power

Specification	Value
Energy efficiency class (SDR)	D
Energy consumption (SDR) per 1000 hours	18 kWh
Power consumption (typical)	16 W
Power consumption (standby)	0.35 W
Power consumption (max)	186 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width (with stand)	612 mm
Depth (with stand)	242 mm
Height (with stand)	565 mm
Weight (with stand)	8.2 kg
Width (without stand)	612 mm
Depth (without stand)	61 mm
Height (without stand)	359 mm
Weight (without stand)	5.5 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, USB Type-C to USB Type-C
Quick start guide	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO
Sustainability compliance	Yes

Other features

Specification	Value
Picture-by-Picture (PbP)	Yes
Automatic brightness control	Yes
Compliance certificates	CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), GS mark, ICES, PSE, RCM, RoHS, cTUVus, UKCA, VCCI, WEEE
Look-up table (LUT) bit depth	14
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 10, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC
Warranty period	5 year(s)

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
