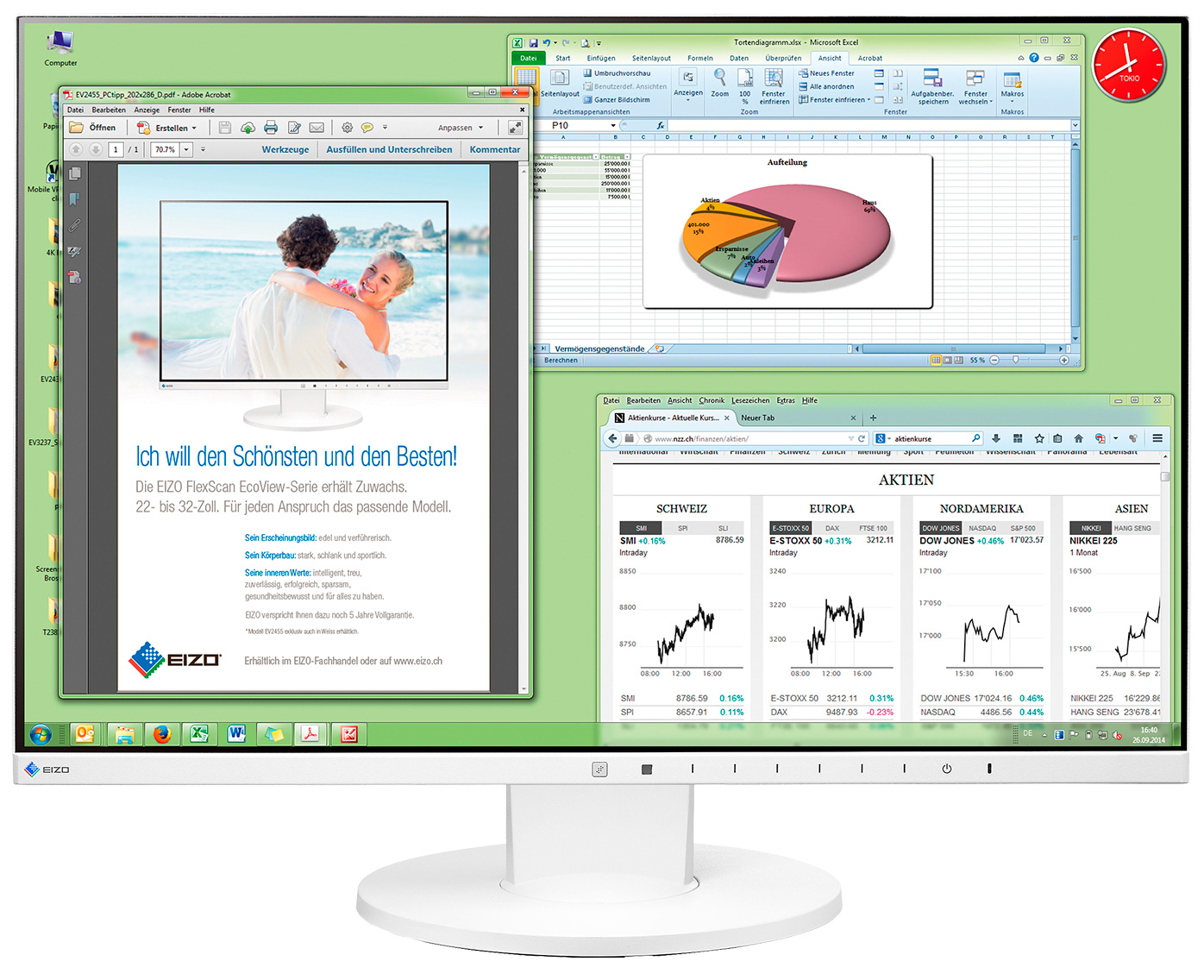

EV2455W-Swiss Edition

Model EV2455W-Swiss EditionPart no. 21568

79 specifications Checked today

Overview

Brand: EIZO
Category: Monitor
Model: EV2455W-Swiss Edition
Part number: 21568
Also known as: EIZO EV2455W-Swiss Edition computer monitor 61.2 cm (24.1") 1920 x 1200 pixels WUXGA LED White

79 specifications in 12 groups

Specification	Value
Display diagonal	61.2 cm (24.1")
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
HD type	WUXGA
Panel type	IPS
Display brightness (typical)	300 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1920 x 1200 (WUXGA)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Dynamic contrast ratio marketing name	Ultra Contrast
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.27 x 0.27 mm
Viewable size, horizontal	51.8 cm
Viewable size, vertical	32.4 cm
Digital horizontal frequency	31 - 81 kHz
Digital vertical frequency	55 - 76 Hz
3D	No
Separate H/V sync	Yes

Specification	Value
Product colour	White
Feet colour	White

Specification	Value
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Headphone connectivity	3.5 mm
Microphone in	Yes
HDCP	Yes

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	13.1 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	0 - 344°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish
Number of OSD languages	9
LED indicators	Yes

Specification	Value
Power consumption (typical)	13 W
Power consumption (max)	49 W
Power consumption (PowerSave)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Cables included	AC, DisplayPort, USB
Manual	Yes

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Certification	TCO, TUV, RCM, CE, CB, cTUVus, FCC-B, ICES-003-B, TUV/S, VCCI-B, RoHS, WEEE, RoHS, CCC, GOST-R
Supplied AC adapter type	LED
